PS8501L2 Series

High-speed Analog Output Type 8 mm Creepage 8-PIN Photocoupler

Manufacturer: Renesas Electronics Corporation

Catalog

High-speed Analog Output Type 8 mm Creepage 8-PIN Photocoupler

Part	Current - Output / Channel [custom]	Voltage - Output (Max) [Max]	Input Type	Current Transfer Ratio (Min) [Min]	Supplier Device Package	Turn On / Turn Off Time (Typ)	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels	Voltage - Forward (Vf) (Typ)	Mounting Type	Package / Case	Package / Case	Package / Case

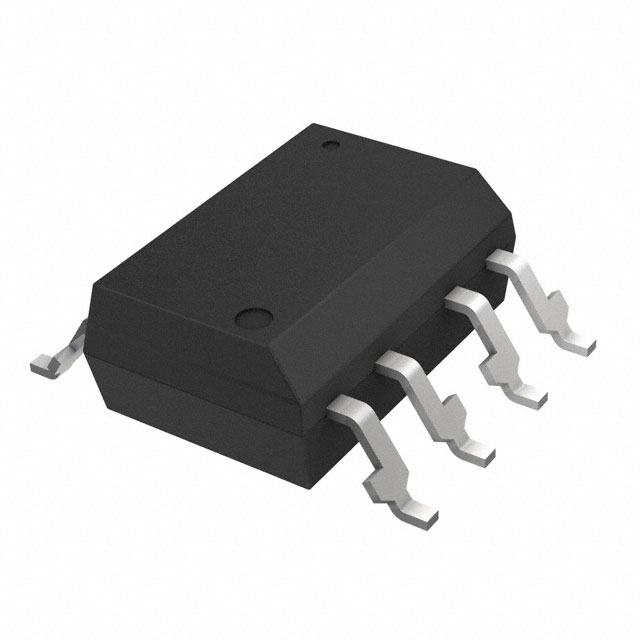

Renesas Electronics Corporation PS8501L2-V-E3-AX	8 mA	35 V	DC	15 %	8-SMD	220 ns 350 ns	25 mA	100 °C	-55 °C	1	1.7 V	Surface Mount
Renesas Electronics Corporation PS8501L3-V-E3-AX	8 mA	35 V	DC	15 %	8-SMD		25 mA	100 °C	-55 °C	1	1.7 V	Surface Mount
Renesas Electronics Corporation PS8501L3-E3-AX	8 mA	35 V	DC	15 %	8-SMD	220 ns 350 ns	25 mA	100 °C	-55 °C	1	1.7 V	Surface Mount
Renesas Electronics Corporation PS8501L2-E3-AX	8 mA	35 V	DC	15 %	8-SMD	220 ns 350 ns	25 mA	100 °C	-55 °C	1	1.7 V	Surface Mount

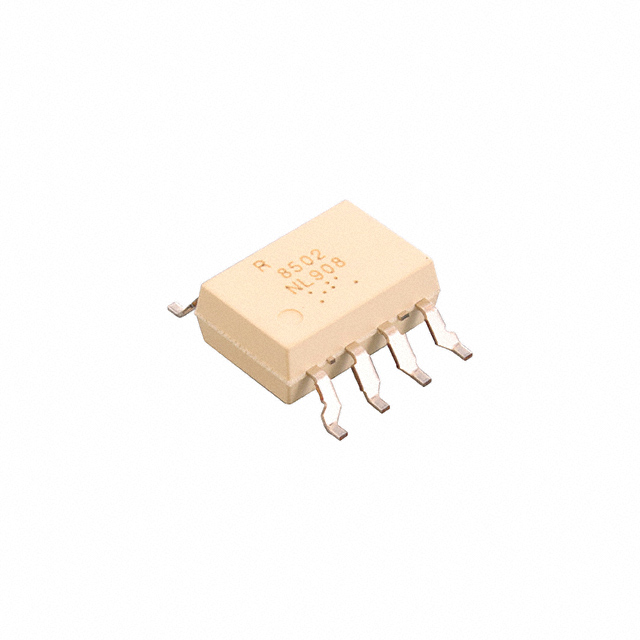

Renesas Electronics Corporation PS8501L2-V-AX	8 mA	35 V	DC	15 %	8-SMD		25 mA	100 °C	-55 °C	1	1.7 V	Surface Mount

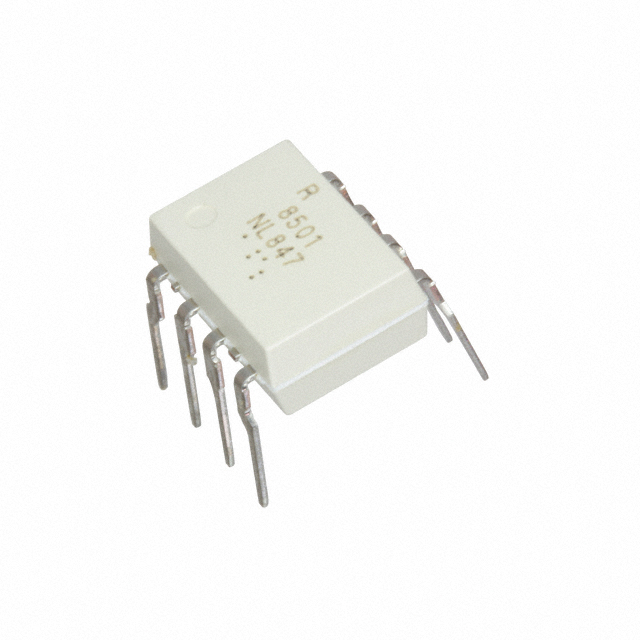

Renesas Electronics Corporation PS8501-AX	8 mA	35 V	DC	15 %		220 ns 350 ns	25 mA	100 °C	-55 °C	1	1.7 V	Through Hole	0.3 in	8-DIP	7.62 mm
Renesas Electronics Corporation PS8501L3-V-AX	8 mA	35 V	DC	15 %	8-SMD		25 mA	100 °C	-55 °C	1	1.7 V	Surface Mount

Catalog

High-speed Analog Output Type 8 mm Creepage 8-PIN Photocoupler

Description

The PS8501, PS8501L1, PS8501L2 and PS8501L3 are 8-pin High-Speed photocouplers containing a GaAIAs LED on input side and a PN photodiode and a High-Speed amplifier transistor on output side on one chip. The PS8501 is in a plastic DIP (Dual In-line Package) with 8 mm creepage distance product. The PS8501L1 is lead bending type for long creepage distance. The PS8501L2 is lead bending type for long creepage distance (Gull-wing) for surface mount. The PS8501L3 is lead bending type (Gull-wing) for surface mounting.
