6397 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

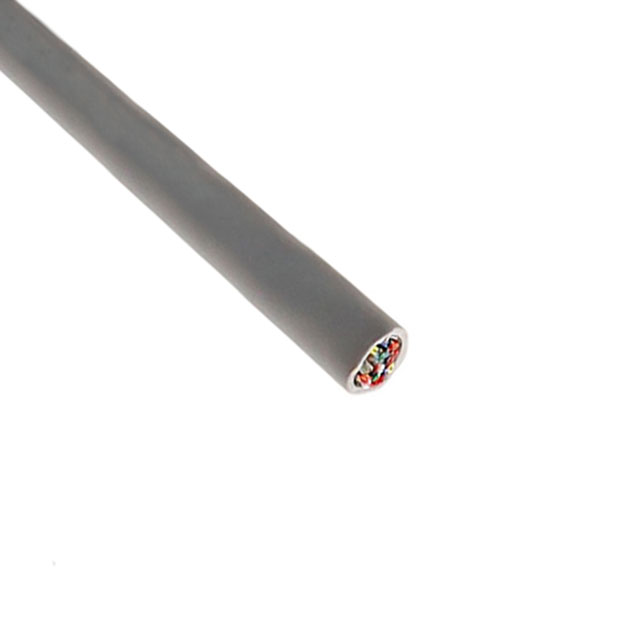

MULTIPAIR CABLE, COMMUNICATION, SHIELDED, 13 PAIR, 28 AWG, 0.089 MM², 1000 FT, 304.8 M
| Part | Shield Material | Shield Coverage | Ratings | Jacket Color | Features | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Cable Type | Jacket (Insulation) Material | Wire Gauge | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 90 % 100 % | UL Style 2960 | Slate | Drain Wire | 7 | 36 AWG | Braid Foil | Multi-Pair | Poly-Vinyl Chloride (PVC) | 28 AWG | Polyethylene (PE) | 0.035 in | 0.889 mm | 300 VDC | 26 | 8.66 mm | 0.341 in | Copper Tinned | 304.8 m | 1000 ft |
