BD63940EFV Series

Standard 36V Series Stepper Motor Drivers

Catalog

Standard 36V Series Stepper Motor Drivers

Part	Motor Type - Stepper	Current - Output	Interface	Function	Technology	Step Resolution	Applications	Mounting Type	Package / Case	Voltage - Load [Max]	Voltage - Load [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration

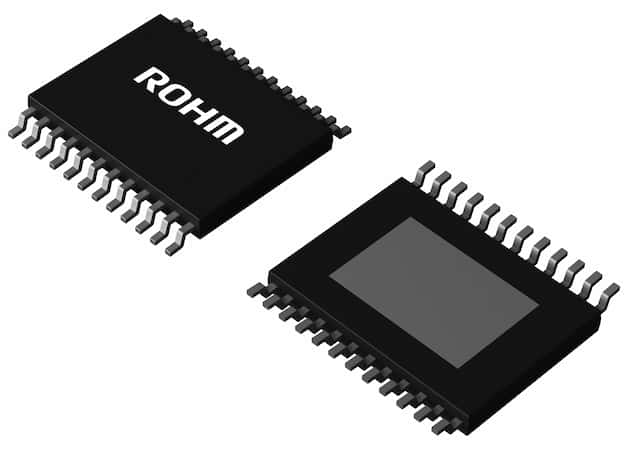

Rohm Semiconductor BD63940EFV-E2	Bipolar	900 mA	Parallel	Driver - Fully Integrated Control and Power Stage	DMOS	0.5 1	General Purpose	Surface Mount	24-VSSOP (0.220" 5.60mm Width) Exposed Pad	28 V	19 V	19 V	28 V	24-HTSSOP-B	-25 °C	150 °C	Half Bridge (4)

Catalog

Standard 36V Series Stepper Motor Drivers

Description

BD6395FP,BD6393FP,BD6290EFV,BD63960EFV,BD63940EFV,BD63920EFV are stepper motor driver series with PARALLEL-IN drive mode. As for its basic function, it is a low power consumption bipolar PWM constant current-drive driver with power supply's rated voltage of 36V and rated output current of 0.8A, 1.2A, 1.5A. BD6395FP,BD6393FP,BD6290EFV have excitation modes of FULL STEP & HALF STEP &, QUATER STEP mode. Thus making it possible to realize optimum control under a variety of motors.
