1003P4 Series

Manufacturer: E-Switch

Catalog

SWITCH TOGGLE 3PDT 5A 120V

Part	Actuator Material	Electrical Life (Cycles)	Mounting Type	Termination Style	Panel Cutout Diameter	Panel Cutout Shape	Actuator Type	Features	Voltage Rating - DC	Circuit	Operating Temperature (Max)	Operating Temperature (Min)	Bushing Thread	Switch Function	Illumination	Current Rating	Voltage Rating - AC	Actuator Length	Termination Length
E-Switch 1003P4T6B11M1QE	Brass Chrome Plated	40000	Panel Mount	Solder Lug	0.25 "	Circular	Flat Anti-Rotation	Epoxy Sealed Terminals	28 V	3PDT	85 °C	-30 °C	1/4-40	Mom-Off-Mom	Non-Illuminated	5 A	120 V	12.3 mm
E-Switch 1003P4T1B3M3QE	Brass Chrome Plated	40000	Panel Mount	Quick Connect	0.25 "	Circular	Standard Round	Epoxy Sealed Terminals	28 V	3PDT	85 °C	-30 °C	1/4-40	Mom-Off-Mom	Non-Illuminated	5 A	120 V	10.41 mm	0.062 in
E-Switch 1003P4T7B13M1QE	Brass Chrome Plated	40000	Panel Mount	Solder Lug	11.91 mm	Circular	Standard Round	Epoxy Sealed Terminals	28 V	3PDT	85 °C	-30 °C	15/32-32	Mom-Off-Mom	Non-Illuminated	5 A	120 V	13 mm

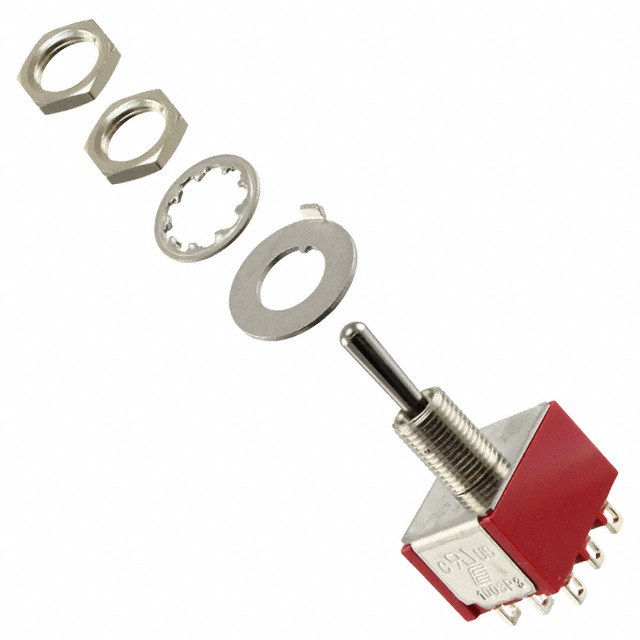

E-Switch 1003P4T1B1M1QEH	Brass Chrome Plated	40000	Panel Mount	Solder Lug	0.25 "	Circular	Standard Round	Epoxy Sealed Terminals	28 V	3PDT	85 °C	-30 °C	1/4-40	Mom-Off-Mom	Non-Illuminated	5 A	120 V	10.41 mm
