BHR-08 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER VERT 8POS 2.54MM

Part	Contact Finish Thickness - Post	Features	Insulation Height [z]	Insulation Height [z]	Contact Material	Contact Finish - Mating	Voltage Rating	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Connector Type	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Shape	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Shrouding	Termination	Current Rating (Amps)	Mounting Type	Number of Positions Loaded	Style	Number of Positions	Insulation Material	Contact Type	Number of Rows [custom]	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]

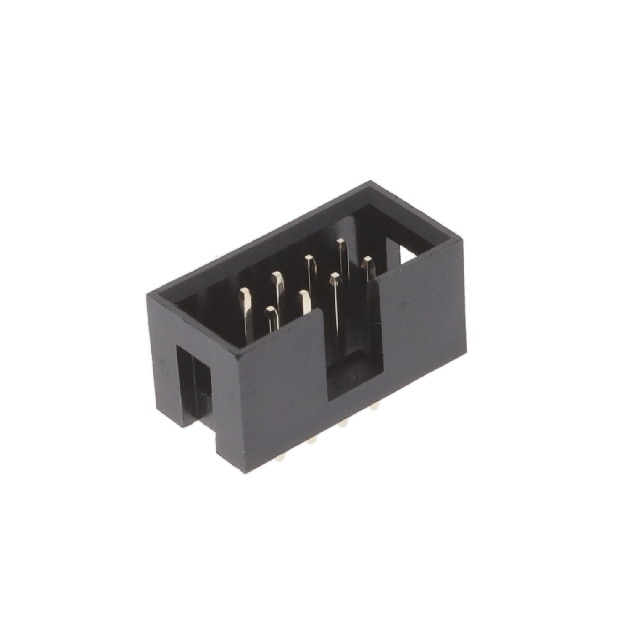

Adam Tech BHR-08-VUA	Flash	Keying Slot Polarizing Key	8.8 mm	0.346 in	Brass	Gold	250 VAC	Black	0.1 in	2.54 mm	0.13 "	3.3 mm	Header	Flash	0.358 "	9.1 mm	-55 C	105 ░C	Gold	Square	UL94 V-0	0.1 "	2.54 mm	Shrouded - 4 Wall	Solder	3 A	Through Hole	All	Board to Board Cable	8	Polybutylene Terephthalate (PBT)	Male Pin	2	Push-Pull

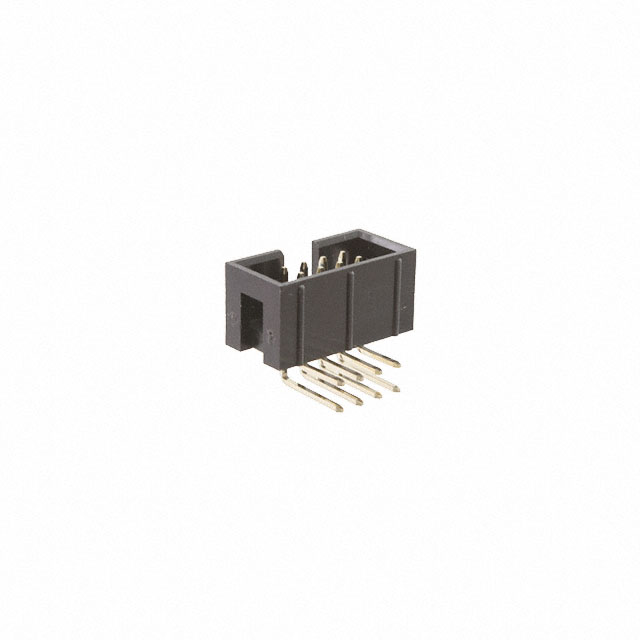

Adam Tech BHR-08-HUA	Flash	Keying Slot			Brass	Gold	250 VAC	Black	0.1 in	2.54 mm		3.4 mm	Header	Flash	0.356 "	9.05 mm	-40 C	105 ░C	Gold	Square	UL94 V-0	0.1 "	2.54 mm	Shrouded - 4 Wall	Solder		Right Angle Through Hole	All	Board to Board Cable	8	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	2	Push-Pull	0.134 "
Adam Tech BHR-08-HUA-ML	Flash	Keying Slot			Brass	Gold	350 VAC	Black	0.1 in	2.54 mm			Header	Flash	0.354 in	9 mm	-40 C	105 ░C	Gold	Square	UL94 V-0	0.1 "	2.54 mm	Shrouded - 4 Wall	Solder	3 A	Right Angle Through Hole	All	Board to Board Cable	8	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	2	Latch Lock/Eject Hooks Long	0.126 "	3.2 mm
