6310 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

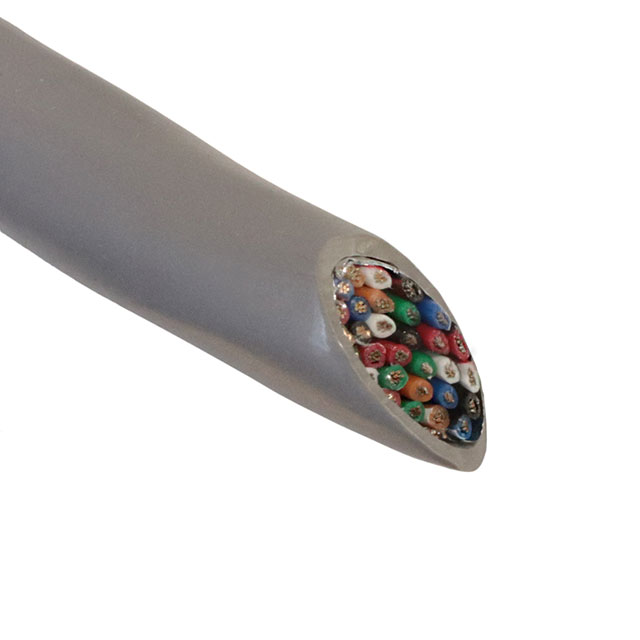

CABLE 30COND 24AWG SHLD 1000'
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Features | Shield Type | Cable Type | Jacket (Insulation) Material | Ratings | Jacket Color | Number of Conductors | Conductor Insulation | Shield Material | Length | Length | Shield Coverage | Voltage | Wire Gauge | Conductor Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 32 AWG | 7 | 9.3 mm | 0.366 in | 0.04 in | 1.016 mm | -20 C | 80 C | Drain Wire | Foil | Multi-Conductor | Poly-Vinyl Chloride (PVC) | UL Style 2464 | Slate | 30 | Poly-Vinyl Chloride (PVC) | Aluminum | 1000 ft | 304.8 m | 100 % | 300 V | 24 AWG | Copper Tinned | ||
ALPHA WIRE | 32 AWG | 7 | 9.3 mm | 0.366 in | 0.04 in | 1.016 mm | -20 C | 80 C | Drain Wire | Foil | Multi-Conductor | Poly-Vinyl Chloride (PVC) | UL Style 2464 | Slate | 30 | Poly-Vinyl Chloride (PVC) | Aluminum | 100 % | 300 V | 24 AWG | Copper Tinned | 30.5 m | 100 ft |
