109BC12 Series

Catalog

FAN BLOWER 51X15MM 12VDC WIRE

Part	Lifetime @ Temp.	Material - Blade	Material - Frame	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Noise	Power (Watts)	Bearing Type	RPM	Fan Type	Static Pressure	Static Pressure	Termination	Weight	Weight	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Width [y]	Voltage - Rated	Air Flow	Air Flow	Features	Air Flow

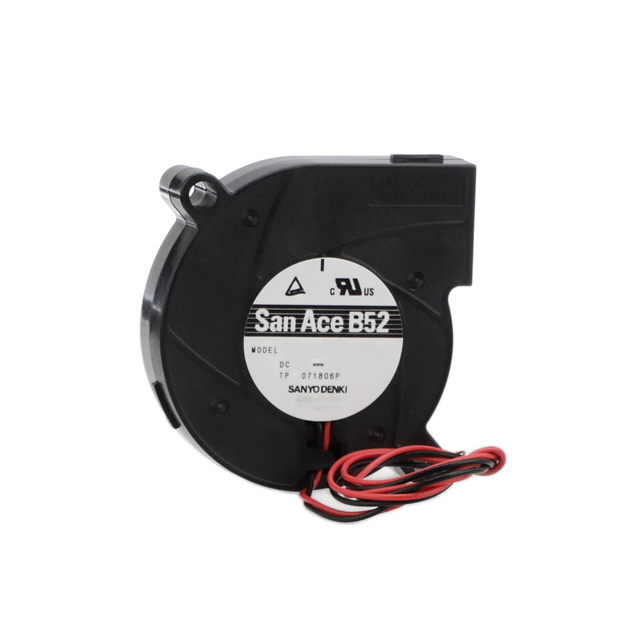

Sanyo Denki America Inc. 109BC12HA7-1	40000 Hrs	Plastic	Plastic	100 mA	13.8 VDC	6 VDC	40 dB(A)	1.2 W	Ball	5600 RPM	Blower	0.66 in H2O	164.4 Pa	2 Wire Leads	33.11 g	0.073 lb	52.6 mm	Square/Rounded	51 mm	-20 ░C	70 °C	CSA TUV UL	15 mm	12 VDC	0.112 m³/min	4 CFM
Sanyo Denki America Inc. 109BC12HD7-1	40000 Hrs	Plastic	Plastic	100 mA	13.8 VDC	6 VDC	40 dB(A)	1.2 W	Ball	5600 RPM	Blower	0.66 in H2O	164.4 Pa	3 Wire Leads	33.11 g	0.073 lb	52.6 mm	Square/Rounded	51 mm	-20 ░C	70 °C	CSA TUV UL	15 mm	12 VDC	0.112 m³/min	4 CFM	Locked Rotor Sensor
Sanyo Denki America Inc. 109BC12FD7-1	40000 Hrs	Plastic	Plastic		13.8 VDC	6 VDC	38 dB(A)	960 mW	Ball	5100 RPM	Blower	0.52 in H2O	129.5 Pa	3 Wire Leads	33.11 g	0.073 lb	52.6 mm	Square/Rounded	51 mm	-20 ░C	70 °C	CSA TUV UL	15 mm	12 VDC	0.101 m³/min	3.6 CFM	Locked Rotor Sensor

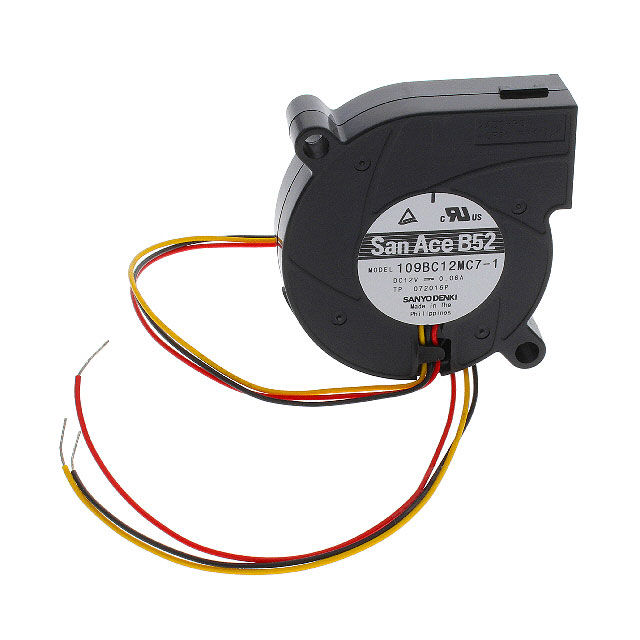

Sanyo Denki America Inc. 109BC12MC7-1	40000 Hrs	Plastic	Plastic	60 mA	13.8 VDC	6 VDC	35 dB	720 mW	Ball	4600 RPM	Blower	0.4 in H2O	99.6 Pa	3 Wire Leads	33.11 g	0.073 lb	52.6 mm	Square/Rounded	51 mm	-20 ░C	70 °C	CSA TUV UL	15 mm	12 VDC	0.09 mł/min	3.2 CFM	Locked Rotor Protection Speed Sensor (Tach)	3.2 CFM
Sanyo Denki America Inc. 109BC12FA7-1	40000 Hrs	Plastic	Plastic		13.8 VDC	6 VDC	38 dB(A)	960 mW	Ball	5100 RPM	Blower	0.52 in H2O	129.5 Pa	2 Wire Leads	33.11 g	0.073 lb	52.6 mm	Square/Rounded	51 mm	-20 ░C	70 °C	CSA TUV UL	15 mm	12 VDC	0.101 m³/min	3.6 CFM
Sanyo Denki America Inc. 109BC12HC7-1	40000 Hrs	Plastic	Plastic	100 mA	13.8 VDC	6 VDC	40 dB(A)	1.2 W	Ball	5600 RPM	Blower	0.66 in H2O	164.4 Pa	3 Wire Leads	33.11 g	0.073 lb	52.6 mm	Square/Rounded	51 mm	-20 ░C	70 °C	CSA TUV UL	15 mm	12 VDC	0.112 m³/min	4 CFM	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109BC12GD7-1	40000 Hrs	Plastic	Plastic	120 mA	13.8 VDC	6 VDC	43 dB	1.44 W	Ball	6200 RPM	Blower	0.86 in H2O	214.2 Pa	3 Wire Leads	33.11 g	0.073 lb	52.6 mm	Square/Rounded	51 mm	-20 ░C	70 °C	CSA TUV UL	15 mm	12 VDC	0.123 m³/min	4.4 CFM	Locked Rotor Sensor

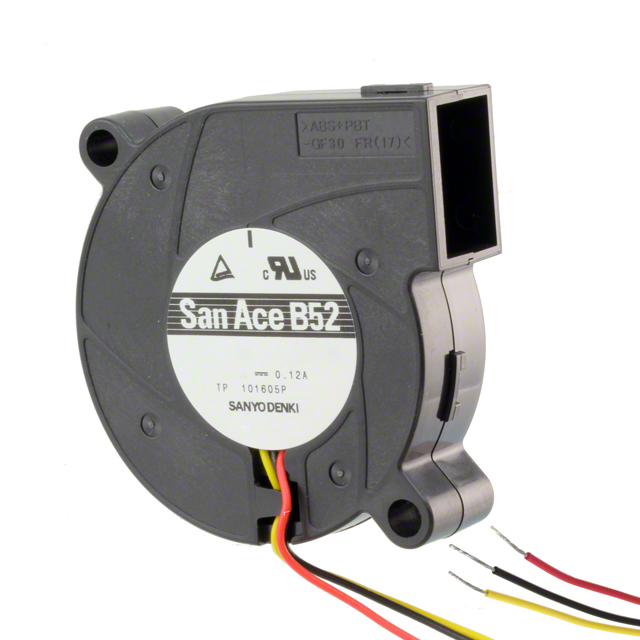

Sanyo Denki America Inc. 109BC12GC7-1	40000 Hrs	Plastic	Plastic	120 mA	13.8 VDC	6 VDC	43 dB	1.44 W	Ball	6200 RPM	Blower	0.86 in H2O	214.2 Pa	3 Wire Leads	33.11 g	0.073 lb	52.6 mm	Square/Rounded	51 mm	-20 ░C	70 °C	CSA TUV UL	15 mm	12 VDC	0.123 m³/min	4.4 CFM	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109BC12MD7-1	40000 Hrs	Plastic	Plastic	60 mA	13.8 VDC	6 VDC	35 dB	720 mW	Ball	4600 RPM	Blower	0.4 in H2O	99.6 Pa	3 Wire Leads	33.11 g	0.073 lb	52.6 mm	Square/Rounded	51 mm	-20 ░C	70 °C	CSA TUV UL	15 mm	12 VDC	0.09 mł/min	3.2 CFM	Locked Rotor Sensor	3.2 CFM
