OSTNR08 Series

Catalog

3.5MM 2 PC TERM BLOCK HEADER R/A

Part	Insulation Height [z]	Insulation Height [z]	Housing Material	Contact Material	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Number of Positions	Current - UL	Operating Temperature [Max]	Operating Temperature [Min]	Color	Type	Pitch	Pitch	Positions Per Level	Header Orientation	Mounting Type	Features	Voltage - UL	Contact Mating Finish	Number of Levels	Termination Style	Insulation Height	Insulation Height

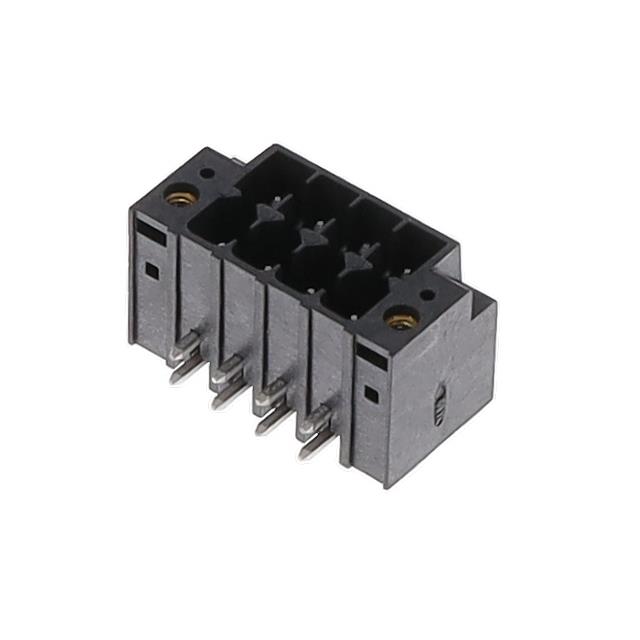

On Shore Technology Inc. OSTNR081201	10.8 mm	0.425 in	Liquid Crystal Polymer (LCP)	Copper	UL94 V-0	2 mm	0.079 in	8	8 A	115 °C	-40 C	Black	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 "	4	90° Right Angle	Through Hole	Mating Flange	150 V	Tin	2	Solder
On Shore Technology Inc. OSTNR081100			Liquid Crystal Polymer (LCP)	Copper	UL94 V-0	2 mm	0.079 in	8	8 A	115 °C	-40 C	Black	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 "	4	Vertical	Through Hole		300 V	Tin	2	Solder	11.6 mm	0.457 in

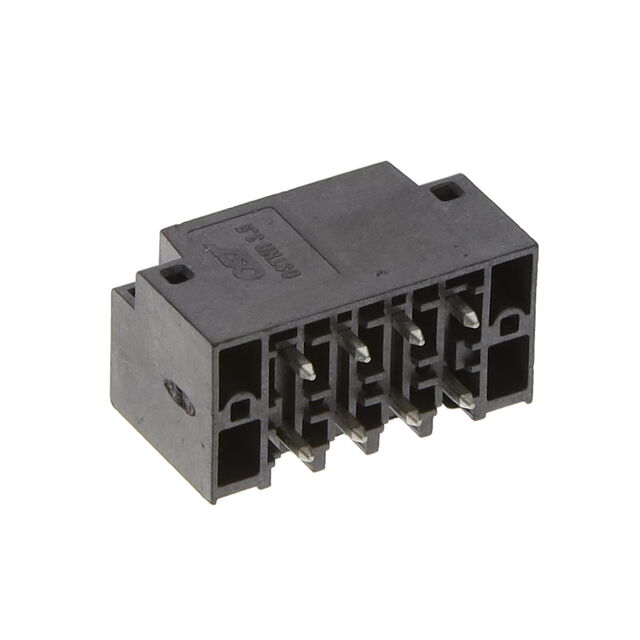

On Shore Technology Inc. OSTNR081200			Liquid Crystal Polymer (LCP)	Copper	UL94 V-0	2 mm	0.079 in	8	8 A	115 °C	-40 C	Black	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 "	4	Vertical	Through Hole	Mating Flange	300 V	Tin	2	Solder	11.6 mm	0.457 in

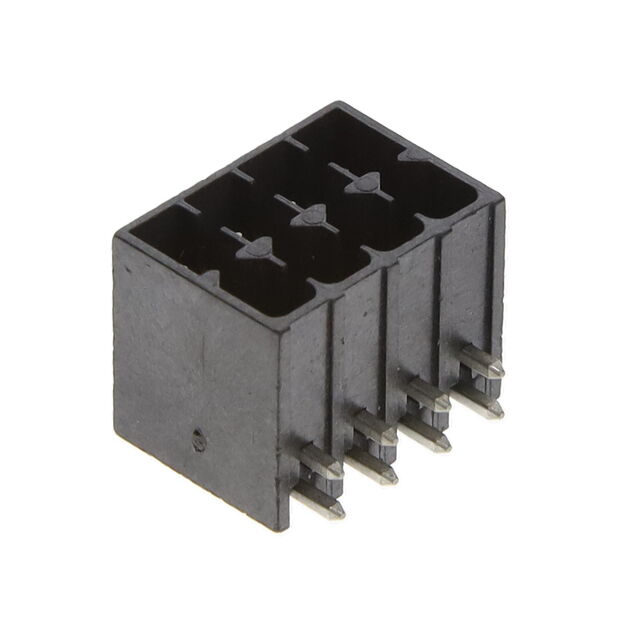

On Shore Technology Inc. OSTNR081101	10.8 mm	0.425 in	Liquid Crystal Polymer (LCP)	Copper	UL94 V-0	2 mm	0.079 in	8	8 A	115 °C	-40 C	Black	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 "	4	90° Right Angle	Through Hole		150 V	Tin	2	Solder
