833-021 Series
Manufacturer: EDAC Inc.
Beta
⌘K

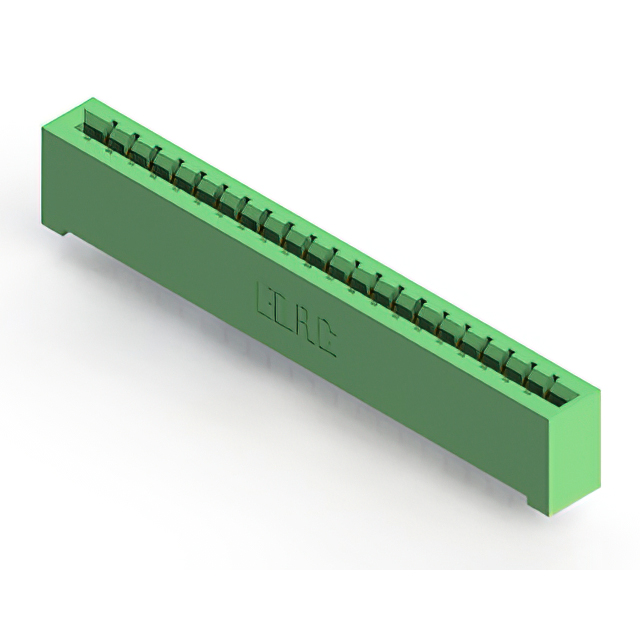

CONN EDGE SGL FMALE 21POS 0.156
| Part | Material - Insulation | Termination Rows | Number of Rows | Contact Finish | Read Out | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Number of Positions/Bay/Row [custom] | Gender | Pitch | Pitch | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Type | Card Type | Color | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Gold | Single | 21 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 21 | Female | 3.96 mm | 0.156 in | Solder | 125 °C | -40 C | 0.25 Ám | 10 Áin | Right Angle Through Hole | Cantilever | Non Specified - Single Edge | Green | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Gold | Single | 21 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 21 | Female | 3.96 mm | 0.156 in | Solder | 125 °C | -40 C | 0.25 Ám | 10 Áin | Through Hole | Cantilever | Non Specified - Single Edge | Green | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Gold | Single | 21 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 21 | Female | 3.96 mm | 0.156 in | Wire Wrap | 125 °C | -40 C | 0.25 Ám | 10 Áin | Through Hole | Cantilever | Non Specified - Single Edge | Green | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Gold | Single | 21 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 21 | Female | 3.96 mm | 0.156 in | Solder | 125 °C | -40 C | 0.25 Ám | 10 Áin | Through Hole | Cantilever | Non Specified - Single Edge | Green | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Gold | Single | 21 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 21 | Female | 3.96 mm | 0.156 in | Solder | 125 °C | -40 C | 0.25 Ám | 10 Áin | Through Hole | Cantilever | Non Specified - Single Edge | Green | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Gold | Single | 21 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 21 | Female | 3.96 mm | 0.156 in | Wire Wrap | 125 °C | -40 C | 0.25 Ám | 10 Áin | Through Hole | Cantilever | Non Specified - Single Edge | Green | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Gold | Single | 21 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 21 | Female | 3.96 mm | 0.156 in | Solder | 125 °C | -40 C | 0.25 Ám | 10 Áin | Through Hole | Cantilever | Non Specified - Single Edge | Green | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Gold | Single | 21 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 21 | Female | 3.96 mm | 0.156 in | Solder | 125 °C | -40 C | 0.25 Ám | 10 Áin | Right Angle Through Hole | Cantilever | Non Specified - Single Edge | Green | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Gold | Single | 21 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 21 | Female | 3.96 mm | 0.156 in | Solder | 125 °C | -40 C | 0.25 Ám | 10 Áin | Through Hole | Cantilever | Non Specified - Single Edge | Green | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 1 | Gold | Single | 21 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 21 | Female | 3.96 mm | 0.156 in | Solder | 125 °C | -40 C | 0.25 Ám | 10 Áin | Right Angle Through Hole | Cantilever | Non Specified - Single Edge | Green | 0.156 " | 3.96 mm |
