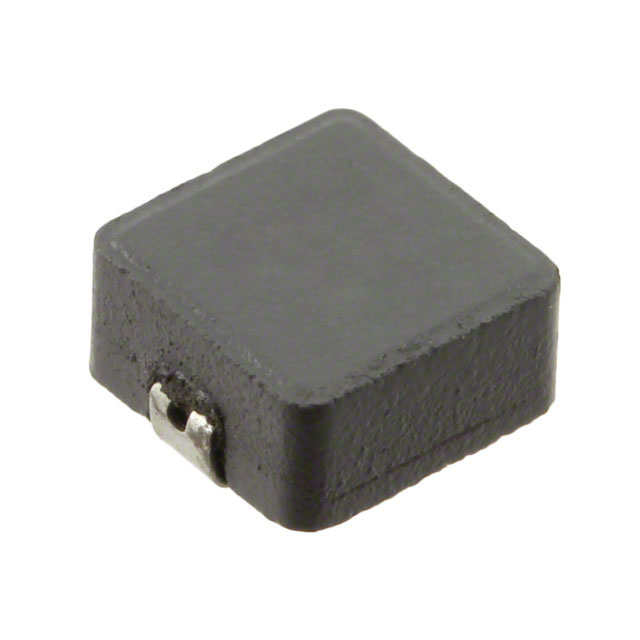

SRP5030T Series
Manufacturer: Bourns Inc.
Beta
⌘K
INDUCTOR, 1.0UH, 20%, 7A, POWER
| Part | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Tolerance | Type | Package / Case | DC Resistance (DCR) | Mounting Type | Inductance Frequency - Test | Material - Core | Current - Saturation (Isat) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Inductance | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 7 A | 125 °C | -40 C | Shielded | 20 % | Drum Core Wirewound | Nonstandard | 14 mOhm | Surface Mount | 100 kHz | Iron Powder | 11 A | 0.118 " | 3 mm | 5.7 mm | 0.205 " | 0.224 " | 5.2 mm | 1 µH | |
Bourns Inc. | 6.5 A | 125 °C | -40 C | Shielded | 20 % | Drum Core Wirewound | Nonstandard | Surface Mount | 100 kHz | Iron Powder | 11 A | 0.118 " | 3 mm | 5.7 mm | 0.205 " | 0.224 " | 5.2 mm | 1.2 µH | 16 mOhm | |
 Bourns Inc. | 5.5 Amps | 125 °C | -40 C | Shielded | 20 % | Drum Core Wirewound | Nonstandard | Surface Mount | 100 kHz | Iron Powder | 9 A | 0.118 " | 3 mm | 5.7 mm | 0.205 " | 0.224 " | 5.2 mm | 2.2 µH | 35 mOhm |
