235 Series

Manufacturer: 3M (TC)

Catalog

IC & COMPONENT SOCKET, 35 CONTACTS, PCB SOCKET, 1.27 MM, 235 SERIES, BERYLLIUM COPPER

Part	Termination Post Length	Termination Post Length	Features	Contact Material - Post	Contact Resistance	Pitch - Post	Pitch - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions or Pins (Grid)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Mating	Termination	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Housing Material	Type	Mounting Type	Current Rating (Amps)	Shelf Life	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Backing, Carrier	Length	Length	Length	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]	Shelf Life Start	Tape Type	Color	Adhesive	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Width [x]	Width [x]	Usage	Width [y]	Width [y]	Width	Width	Width

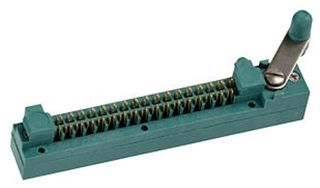

3M (TC) 235-3019-02-0602	0.192 in	4.9 mm	Closed Frame	Beryllium Copper	25 mOhm	2.54 mm	0.1 in	30 Áin	0.76 Ám	35	30 µin	0.76 µm	Beryllium Copper	Solder	Gold	-55 °C	125 °C	UL94 V-0	0.05 in	1.27 mm	Gold	Polysulfone (PSU) Glass Filled	ZIF (ZIP) Zig-Zag	Through Hole	1 A
3M (TC) 235-1"X60YD																										12 Months	0.005 "	5 mils	0.127 mm	Crepe Paper	60 yds	55 m	180 ft	2 mils	0.051 mm	0.002 "	Date of Manufacture	Photographic	Black	Rubber	16 °C 60 °F	27 °C 80 °F	25.4 mm	1 in	Camera Applications General Purpose
3M (TC) 235-3019-01-0602	0.192 in	4.9 mm	Closed Frame	Beryllium Copper	25 mOhm	2.54 mm	0.1 in	30 Áin	0.76 Ám	35	30 µin	0.76 µm	Beryllium Copper	Solder	Gold	-55 °C	125 °C	UL94 V-0	0.05 in	1.27 mm	Gold	Polysulfone (PSU) Glass Filled	ZIF (ZIP) Zig-Zag	Through Hole	1 A
3M (TC) 235-2"X60YD																										12 Months	0.005 "	5 mils	0.127 mm	Crepe Paper	60 yds	55 m	180 ft	2 mils	0.051 mm	0.002 "	Date of Manufacture	Photographic	Black	Rubber	16 °C 60 °F	27 °C 80 °F			Camera Applications General Purpose	2 "	50.8 mm
3M (TC) 235-3/4"X60YD																										12 Months	0.005 "	5 mils	0.127 mm	Crepe Paper	60 yds	55 m	180 ft	2 mils	0.051 mm	0.002 "	Date of Manufacture	Photographic	Black	Rubber	16 °C 60 °F	27 °C 80 °F			Camera Applications General Purpose			0.75 in	19.05 mm	0.75 in
