803-91 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN RCPT 56POS 0.1 GOLD PCB

...

Part	Contact Material	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows [custom]	Insulation Height	Insulation Height	Contact Finish - Post	Contact Finish - Mating	Fastening Type	Connector Type	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Termination	Number of Positions	Pitch - Mating	Pitch - Mating	Mounting Type	Material Flammability Rating	Number of Positions [custom]

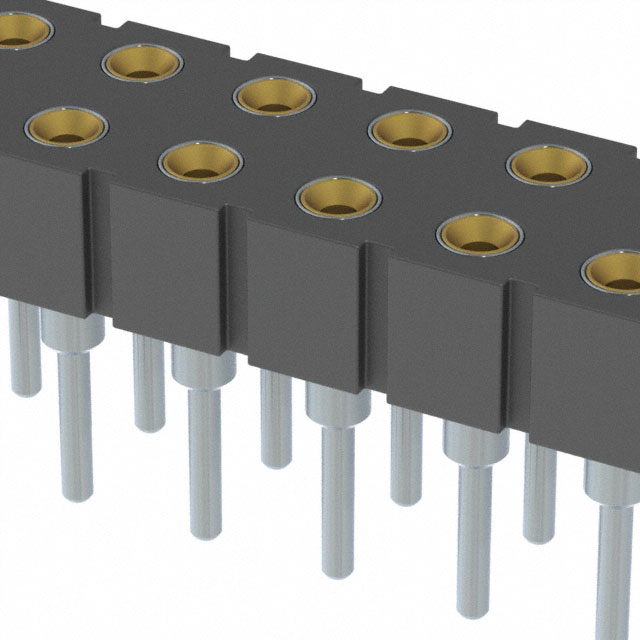

Mill-Max Manufacturing Corp. 803-91-056-10-002000	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	2	0.165 in	4.2 mm	Tin-Lead	Gold	Push-Pull	Receptacle	Black	-55 C	125 °C	0.25 µm	10 µin	4.5 A	0.125 in	3.18 mm	Female Socket	0.1 in	2.54 mm	All	Solder	56	0.1 "	2.54 mm	Through Hole	UL94 V-0

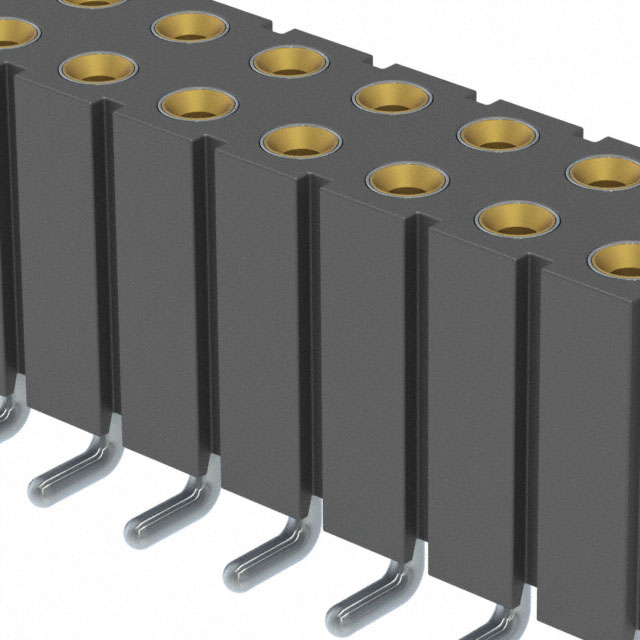

Mill-Max Manufacturing Corp. 803-91-034-30-001000	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	2	0.338 in	8.59 mm	Tin-Lead	Gold	Push-Pull	Receptacle	Black	-55 C	125 °C	0.25 µm	10 µin	4.5 A			Female Socket	0.1 in	2.54 mm	All	Solder		0.1 "	2.54 mm	Surface Mount	UL94 V-0	34
Mill-Max Manufacturing Corp. 803-91-074-30-001000	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	2	0.338 in	8.59 mm	Tin-Lead	Gold	Push-Pull	Receptacle	Black	-55 C	125 °C	0.25 µm	10 µin	4.5 A			Female Socket	0.1 in	2.54 mm	All	Solder	74	0.1 "	2.54 mm	Surface Mount	UL94 V-0

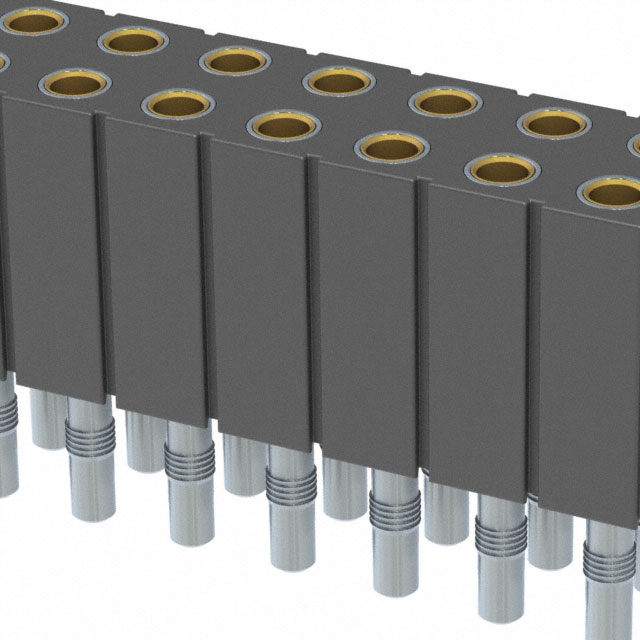

Mill-Max Manufacturing Corp. 803-91-044-62-001000	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	2	0.276 in	7 mm	Tin-Lead	Gold	Push-Pull	Receptacle	Black	-55 C	125 °C	0.25 µm	10 µin	4.5 A	0.143 in	3.63 mm	Female Socket	0.1 in	2.54 mm	All	Press-Fit Solder	44	0.1 "	2.54 mm	Through Hole	UL94 V-0

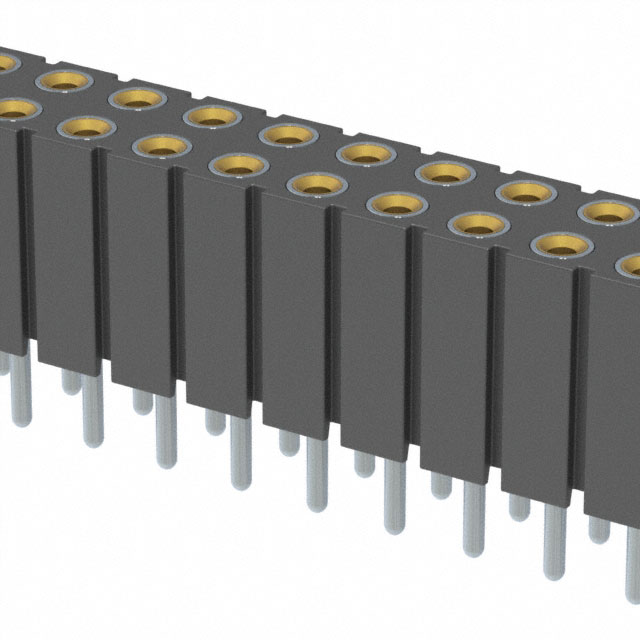

Mill-Max Manufacturing Corp. 803-91-020-10-001000	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	2	0.276 in	7 mm	Tin-Lead	Gold	Push-Pull	Receptacle	Black	-55 C	125 °C	0.25 µm	10 µin	4.5 A	0.118 in	3 mm	Female Socket	0.1 in	2.54 mm	All	Solder	20	0.1 "	2.54 mm	Through Hole	UL94 V-0

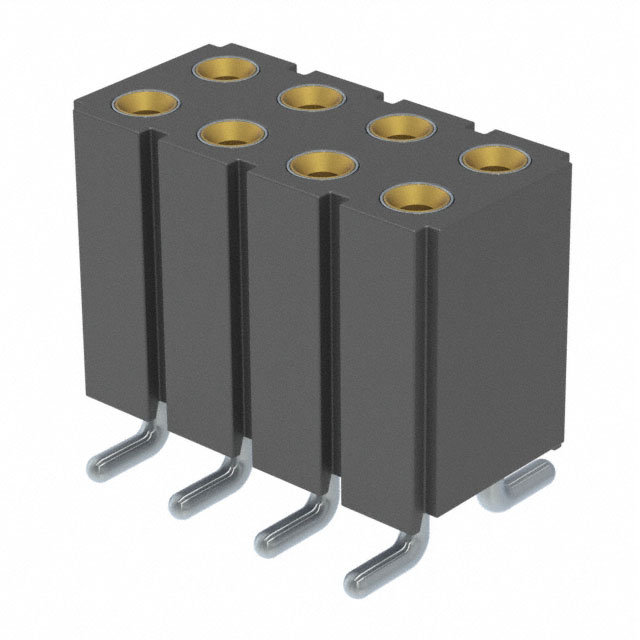

Mill-Max Manufacturing Corp. 803-91-008-30-001000	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	2	0.338 in	8.59 mm	Tin-Lead	Gold	Push-Pull	Receptacle	Black	-55 C	125 °C	0.25 µm	10 µin	4.5 A			Female Socket	0.1 in	2.54 mm	All	Solder	8	0.1 "	2.54 mm	Surface Mount	UL94 V-0
Mill-Max Manufacturing Corp. 803-91-060-10-001000	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	2	0.276 in	7 mm	Tin-Lead	Gold	Push-Pull	Receptacle	Black	-55 C	125 °C	0.25 µm	10 µin	4.5 A	0.118 in	3 mm	Female Socket	0.1 in	2.54 mm	All	Solder	60	0.1 "	2.54 mm	Through Hole	UL94 V-0
Mill-Max Manufacturing Corp. 803-91-098-61-001000	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	2	0.276 in	7 mm	Tin-Lead	Gold	Push-Pull	Receptacle	Black	-55 C	125 °C	0.25 µm	10 µin	4.5 A	0.104 in	2.64 mm	Female Socket	0.1 in	2.54 mm	All	Press-Fit Solder	98	0.1 "	2.54 mm	Through Hole	UL94 V-0
Mill-Max Manufacturing Corp. 803-91-028-61-001000	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	2	0.276 in	7 mm	Tin-Lead	Gold	Push-Pull	Receptacle	Black	-55 C	125 °C	0.25 µm	10 µin	4.5 A	0.104 in	2.64 mm	Female Socket	0.1 in	2.54 mm	All	Press-Fit Solder	28	0.1 "	2.54 mm	Through Hole	UL94 V-0
Mill-Max Manufacturing Corp. 803-91-032-61-001000	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	2	0.276 in	7 mm	Tin-Lead	Gold	Push-Pull	Receptacle	Black	-55 C	125 °C	0.25 µm	10 µin	4.5 A	0.104 in	2.64 mm	Female Socket	0.1 in	2.54 mm	All	Press-Fit Solder		0.1 "	2.54 mm	Through Hole	UL94 V-0
