T 3476 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN PLUG HSG FMALE 7POS INLINE

Part	Material Flammability Rating	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Number of Positions	Shielding	Contact Type	Mounting Type	Housing Color	Ingress Protection	Shell Size - Insert	Insert Material	Orientation	Contact Size	Connector Type	Features	Type	Note	Shell Finish	Contact Shape	Contact Finish - Mating	Color	Voltage Rating	Primary Material	Current Rating (Amps)

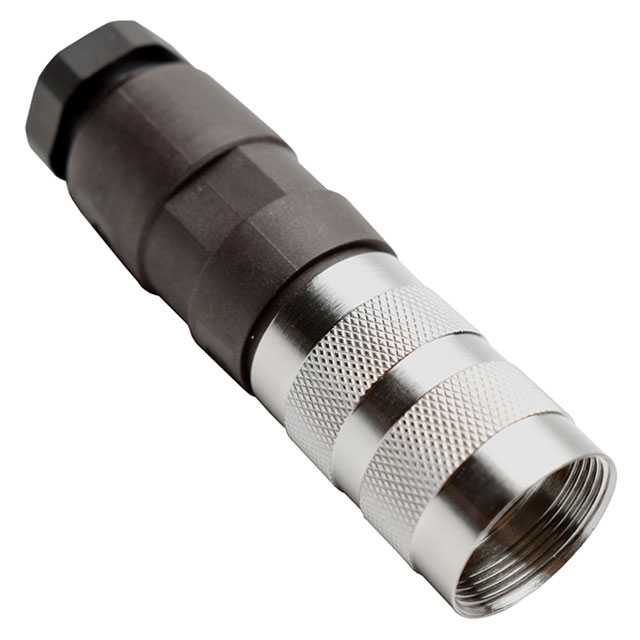

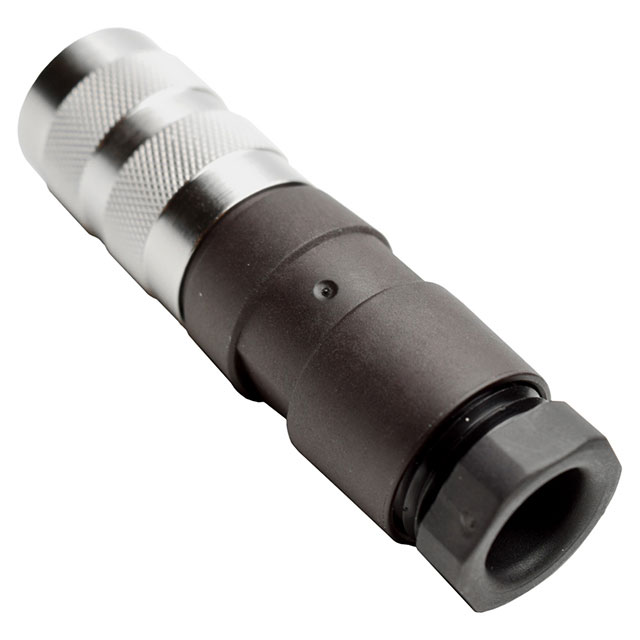

Amphenol Tuchel Industrial T 3476 552	UL94 V-0	Die Cast	-40 C	100 °C	Threaded	7	Shielded	Crimp	Free Hanging (In-Line)	Black Silver	IP40	M16-7	Thermoplastic	Keyed	1.5 mm	Plug Housing	Backshell Cable Clamp Coupling Nut	For Female Sockets	Contacts Not Included	Nickel	Circular
Amphenol Tuchel Industrial T 3476 018		Die Cast	-40 C	100 °C	Threaded	7	Shielded		Free Hanging (In-Line)		IP40	M16-7		Keyed		Plug Female Sockets	Strain Relief			Nickel		Gold	Silver	250 V	Metal	7 A
Amphenol Tuchel Industrial T 3476 005		Die Cast	-40 C	100 °C	Threaded	7	Shielded		Free Hanging (In-Line) Right Angle		IP40	M16-7		Keyed		Plug Female Sockets	Strain Relief			Nickel		Silver	Silver	250 V	Metal	7 A
Amphenol Tuchel Industrial T 3476 004		Die Cast	-40 C	100 °C	Threaded	7	Shielded		Free Hanging (In-Line)		IP40	M16-7		Keyed		Plug Female Sockets	Strain Relief			Nickel		Silver	Silver	250 V	Metal	7 A

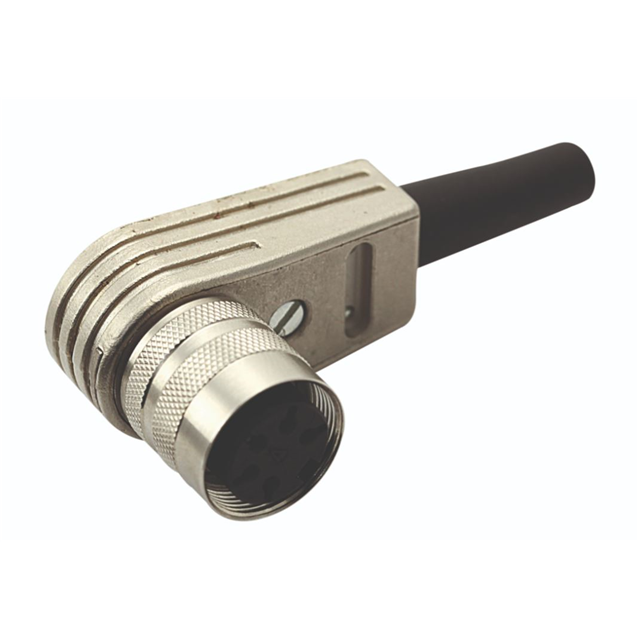

Amphenol Tuchel Industrial T 3476 055	UL94 V-0	Die Cast	-40 C	100 °C	Threaded	7	Shielded	Crimp	Free Hanging (In-Line) Right Angle	Silver	IP40	M16-7	Thermoplastic	Keyed	1.5 mm	Plug Housing	Cable Clamp Coupling Nut Strain Relief	For Female Sockets	Contacts Not Included	Nickel	Circular

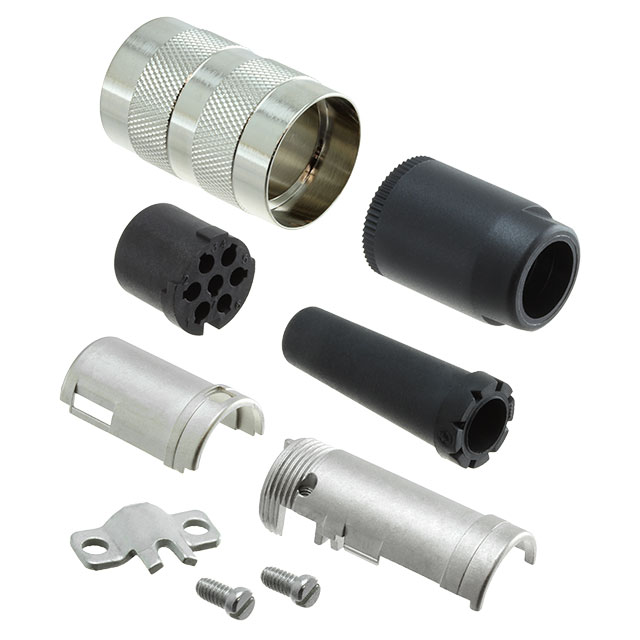

Amphenol Tuchel Industrial T 3476 551	UL94 V-0	Die Cast	-40 C	100 °C	Threaded	7	Shielded	Crimp	Free Hanging (In-Line)	Silver	IP40	M16-7	Thermoplastic	Keyed	1.5 mm	Plug Housing	Cable Clamp Coupling Nut Strain Relief	For Female Sockets	Contacts Not Included	Nickel	Circular
Amphenol Tuchel Industrial T 3476 013		Die Cast	-40 C	100 °C	Threaded	7	Shielded		Free Hanging (In-Line)		IP40	M16-7		Keyed		Plug Female Sockets	Strain Relief			Nickel		Silver	Silver	250 V	Metal	7 A
Amphenol Tuchel Industrial T 3476 028		Die Cast	-40 C	100 °C	Threaded	7	Shielded		Free Hanging (In-Line)		IP40	M16-7		Keyed		Plug Female Sockets	Cable Clamp Strain Relief			Nickel		Gold	Silver	250 V	Metal	7 A

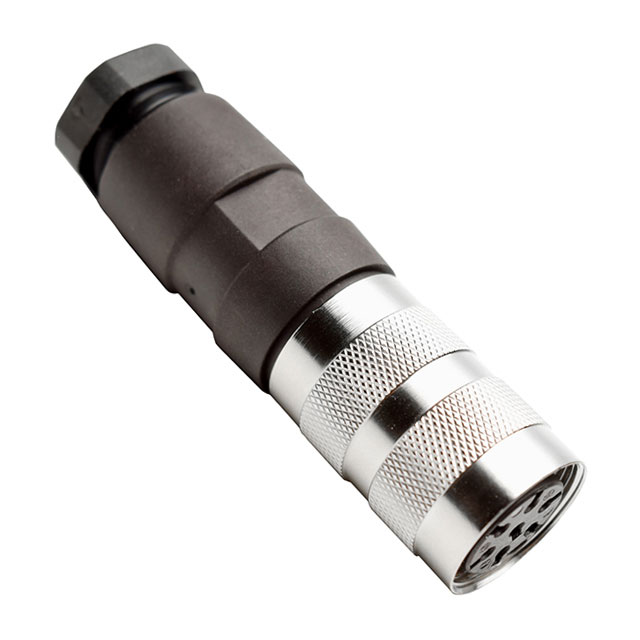

Amphenol Tuchel Industrial T 3476 002		Die Cast	-40 C	100 °C	Threaded	7	Shielded		Free Hanging (In-Line)		IP40	M16-7		Keyed		Plug Female Sockets	Cable Clamp Strain Relief			Nickel		Silver	Silver	250 V	Metal	7 A
