SL-B8V4 Series

Catalog

LED MOD INFLUXS04 LNR STR 3000K

Part	Configuration	Temperature - Test	CCT (K)	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Current - Test	Lumens/Watt @ Current - Test	Height [z]	Features	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Lens Type	Color	Type	Current - Max [Max]
Samsung Semiconductor, Inc. SL-B8V4N80L1WW	Linear Light Strip	65 °C	3000 K	279.6 mm	39.6 mm	115 °	1.38 A	126 lm/W	5.9 mm	With Connector	24.1 V	80	4195 lm	Flat	Warm White	LED Module	1.38 A

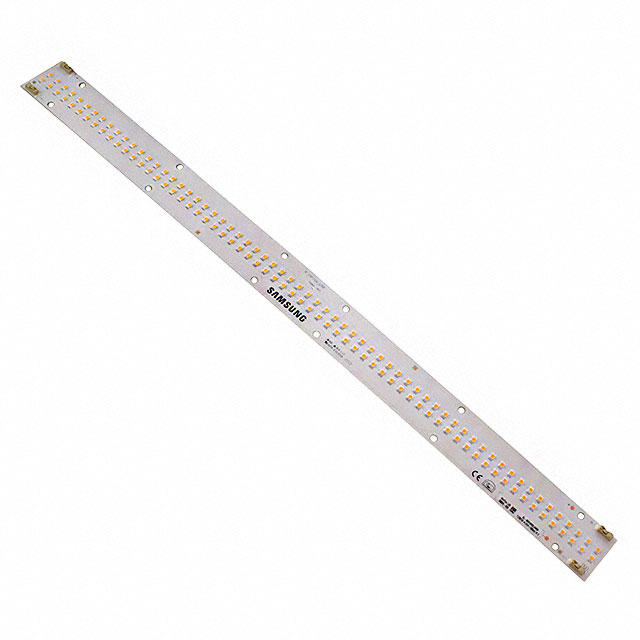

Samsung Semiconductor, Inc. SL-B8V4N90LAWW	Linear Light Strip	55 °C	3000 K	560 mm	41 mm	118 °	1 A	178 lm/W	5.2 mm		44.6 V	80	7910 lm	Flat	Warm White	LED Module	1.6 A
Samsung Semiconductor, Inc. SL-B8V7N90L1WW	Linear Light Strip	65 °C	3000 K	559.5 mm	39.6 mm	115 °	1.38 A	126 lm/W	5.9 mm	With Connector	48.2 V	80	8390 lm	Flat	Warm White	LED Module	1.38 A
