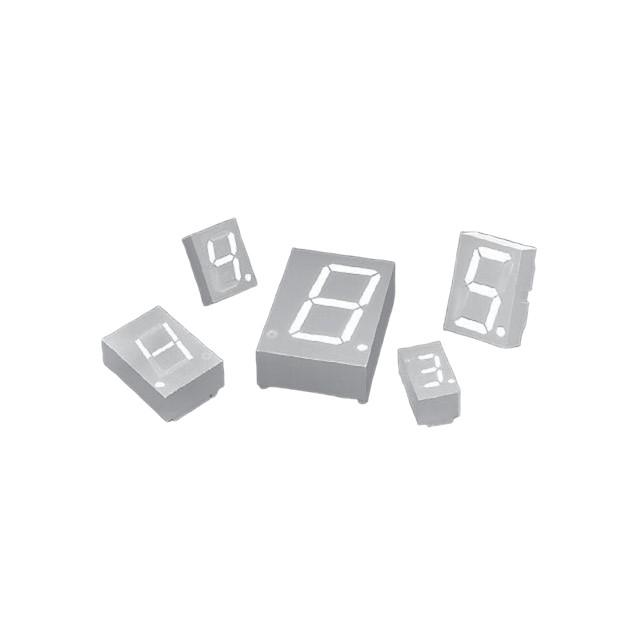

HDSP-751 Series
Manufacturer: Broadcom Limited
Beta
⌘K
DISP 7SEG 0.3" OV/FL RED 10DIP
| Part | Display Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Digit/Alpha Size | Digit/Alpha Size | Color | Package / Case | Number of Characters | Common Pin | Current - Test | Wavelength - Peak | Voltage - Forward (Vf) (Typ) | Power Dissipation (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 7-Segment | 7.62 mm | 12.7 mm | 0.5 in | 9.91 mm | 0.3 " | 0.39 " | 7.62 mm | 0.3 in | Red | 10-DIP (0.200" 5.08mm) 7 Leads | +/-1 | Common Anode | 5 mA | 635 nm | 1.7 V | 52 mW |
 Broadcom Limited | 7-Segment | 7.62 mm | 12.7 mm | 0.5 in | 9.91 mm | 0.3 " | 0.39 " | 7.62 mm | 0.3 in | Red | 10-DIP (0.200" 5.08mm) 7 Leads | +/-1 | Common Cathode | 5 mA | 635 nm | 1.7 V | 52 mW |
