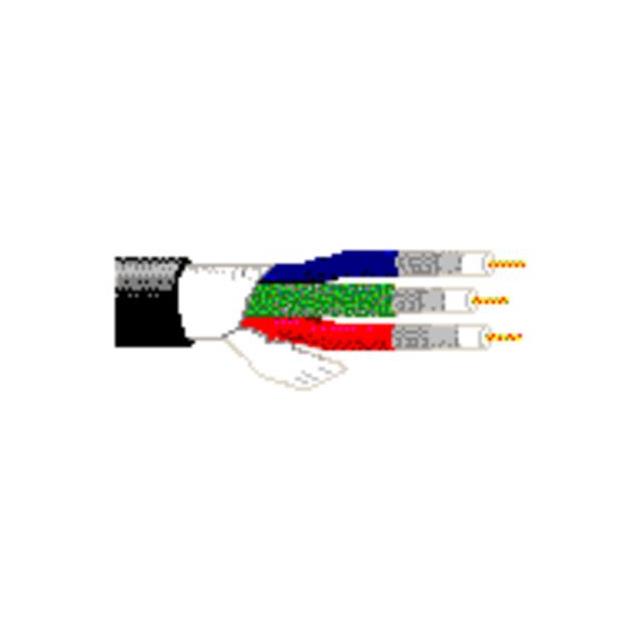

7710A Series
Manufacturer: Belden Inc.
Beta
⌘K
3 #18 PE SH PVC FRTPE
| Part | Shield Material | Shield Coverage | Usage | Conductor Strand | Conductor Insulation | Ratings | Jacket Color | Number of Conductors | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Shield Type | Conductor Material | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Polyester Copper Tinned | 95 % 100 % | Video | Solid | Polyethylene (PE) | UL Style CMR | Black | 3 | Poly-Vinyl Chloride (PVC) Riser | 0.746 in | 18.95 mm | 304.8 m | 1000 ft | Braid Foil | Copper Bare | 300 VDC | -40 C | 75 ░C | 18 AWG | Multi-Conductor |
