TMC6200 Series

Low voltage BLDC motor driver 8 to 60V, for external N-channel MOSFETs up to 1.5A gate current, Inline current sense

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Low voltage BLDC motor driver 8 to 60V, for external N-channel MOSFETs up to 1.5A gate current, Inline current sense

Part	Gate Type	Package / Case	Input Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Channel Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Rise / Fall Time (Typ)	Driven Configuration	Number of Drivers	High Side Voltage - Max (Bootstrap) [Max]	Mounting Type	Supplied Contents	Utilized IC / Part	Function	Type	Contents	Primary Attributes	Secondary Attributes

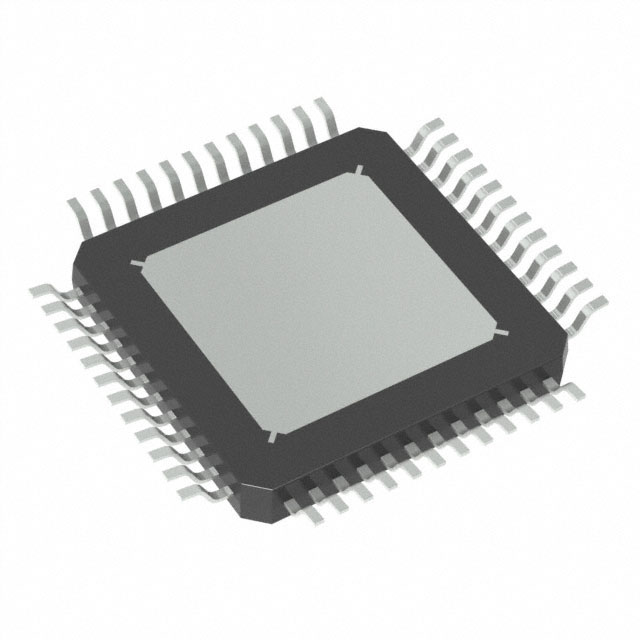

Analog Devices Inc./Maxim Integrated TMC6200-TA-T	MOSFET (N-Channel) N-Channel MOSFET	48-TQFP Exposed Pad	CMOS	60 VDC	10 VDC	48-TQFP-EP (7x7)	3-Phase	1.5 A	1.5 A	-40 C	125 °C	20 ns	Half-Bridge	6	85 V	Surface Mount
Analog Devices Inc./Maxim Integrated TMC6200-TA	MOSFET (N-Channel) N-Channel MOSFET	48-TQFP Exposed Pad	CMOS	60 VDC	10 VDC	48-TQFP-EP (7x7)	3-Phase	1.5 A	1.5 A	-40 C	125 °C	20 ns	Half-Bridge	3	85 V	Surface Mount

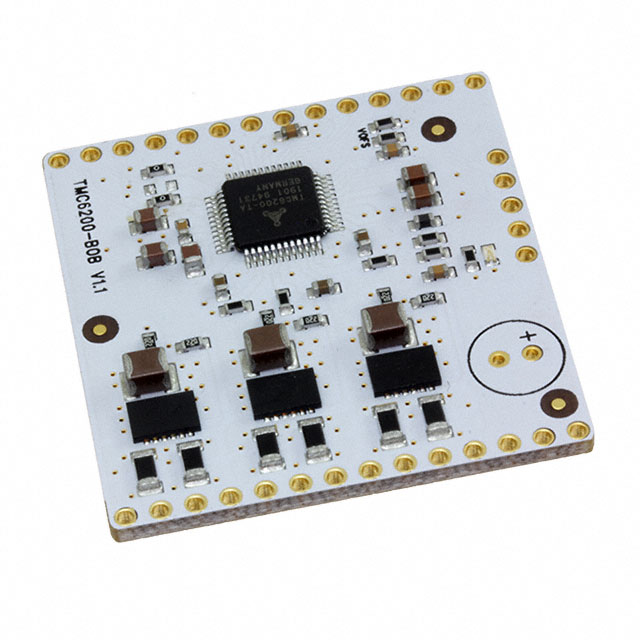

Analog Devices Inc./Maxim Integrated TMC6200-BOB																	Board(s)	TMC6200	Motor Controller/Driver	Power Management	Board(s)	Motors (BLDC PMSM Servo)	SPI Interface(s)

Catalog

Low voltage BLDC motor driver 8 to 60V, for external N-channel MOSFETs up to 1.5A gate current, Inline current sense

Description

The TMC6200 is a high-power gate driver for PMSM servo or BLDC motors.Using six external MOSFETs and two or three sense resistors, it integrates the full high voltage part of a FOC drive system for 12V, 24V or 48V, including in-line current sense amplifiers with programmable amplification.It can drive a wide range of motors from Watt to Kilowatt. Software controlled drive strength allows in-system EME optimization. Programmable safety features like short detection and overtemperature thresholds together with an SPI interface for diagnostics allow robust and reliable designs. With the TMC6200, a minimum number of external components is required to build a rugged drive with full protection and diagnostics.APPLICATIONS:PMSM FOC drives and BLDC motorsIndustrial DrivesFactory AutomationLab AutomationRoboticsCNC machinesTextile MachinesPumpsSurveillance CamerasHome AutomationPrinters
