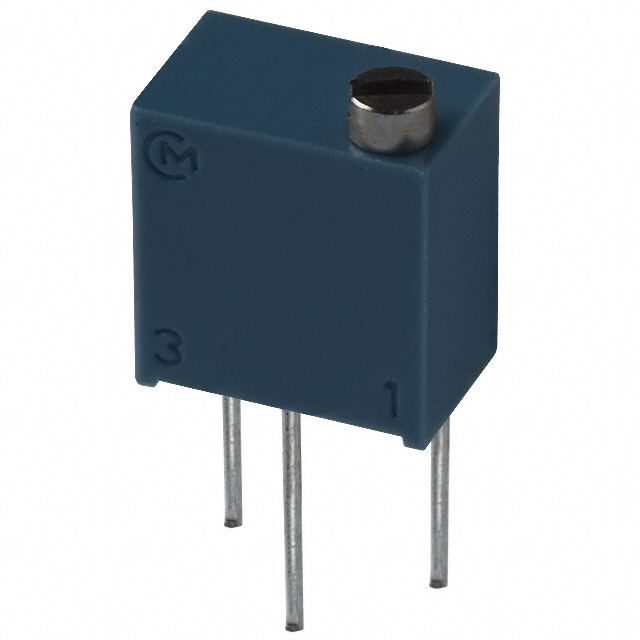

PV37W Series

Catalog

TRIMMER 10K OHM 0.25W PC PIN TOP

Part	Resistive Material	Power (Watts)	Power (Watts)	Mounting Type	Adjustment Type	Resistance	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Turns	Temperature Coefficient	Termination Style
Bourns Inc. PV37W103C01B00	Cermet	0.25 W	0.25 W	Through Hole	Top Adjustment	10000 Ohms	10 %	4 mm	0.157 "	6.4 mm	0.252 in	12	150 ppm/°C	PC Pins
Bourns Inc. PV37W254C01B00	Cermet	0.25 W	0.25 W	Through Hole	Top Adjustment	250000 Ohms	10 %	4 mm	0.157 "	6.4 mm	0.252 in	12	150 ppm/°C	PC Pins
Bourns Inc. PV37W253C01B00	Cermet	0.25 W	0.25 W	Through Hole	Top Adjustment	25 kOhms	10 %	4 mm	0.157 "	6.4 mm	0.252 in	12	150 ppm/°C	PC Pins
Bourns Inc. PV37W103A01B00	Cermet	0.25 W	0.25 W	Through Hole	Top Adjustment	10000 Ohms	10 %	4 mm	0.157 "	6.4 mm	0.252 in	12	150 ppm/°C	PC Pins
Bourns Inc. PV37W102C01B00	Cermet	0.25 W	0.25 W	Through Hole	Top Adjustment	1000 Ohms	10 %	4 mm	0.157 "	6.4 mm	0.252 in	12	150 ppm/°C	PC Pins
Bourns Inc. PV37W104C01B00	Cermet	0.25 W	0.25 W	Through Hole	Top Adjustment	100 kOhms	10 %	4 mm	0.157 "	6.4 mm	0.252 in	12	150 ppm/°C	PC Pins
Bourns Inc. PV37W101A01B00	Cermet	0.25 W	0.25 W	Through Hole	Top Adjustment	100 Ohms	10 %	4 mm	0.157 "	6.4 mm	0.252 in	12	150 ppm/°C	PC Pins
Bourns Inc. PV37W105A01B00	Cermet	0.25 W	0.25 W	Through Hole	Top Adjustment	1 MOhms	10 %	4 mm	0.157 "	6.4 mm	0.252 in	12	150 ppm/°C	PC Pins
Bourns Inc. PV37W205C01B00	Cermet	0.25 W	0.25 W	Through Hole	Top Adjustment	2 MOhms	10 %	4 mm	0.157 "	6.4 mm	0.252 in	12	150 ppm/°C	PC Pins
Bourns Inc. PV37W204C01B00	Cermet	0.25 W	0.25 W	Through Hole	Top Adjustment	200000 Ohms	10 %	4 mm	0.157 "	6.4 mm	0.252 in	12	150 ppm/°C	PC Pins
