0399-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Socket Depth	Socket Depth	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Material	Accepts Square Pin Size	Accepts Square Pin Size	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Tail Diameter [diameter]	Tail Diameter [diameter]
Mill-Max Manufacturing Corp. 0399-0-15-80-47-80-04-0	-55 C	125 °C	0.64 mm	0.037 in	0.94 mm	0.025 in	0.072 "	1.83 mm	Standard Tail	0.23 in	5.84 mm	0.051 in	1.3 mm	Beryllium Copper	0.025 in	0.64 mm	11.68 mm	0.46 in	0.062 in	1.57 mm	Press-Fit	Tin	200 Áin	5.08 Ám	0.025 in	0.64 mm

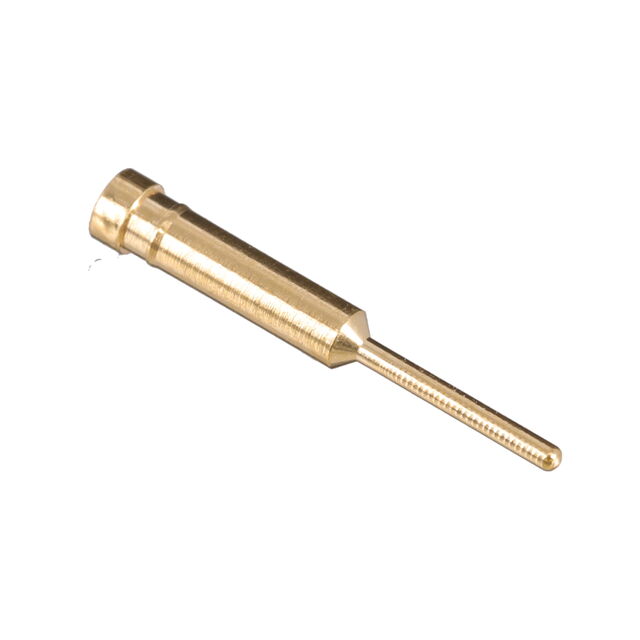

Mill-Max Manufacturing Corp. 0399-0-15-15-47-14-04-0	-55 C	125 °C	0.64 mm	0.037 in	0.94 mm	0.025 in	0.072 "	1.83 mm	Standard Tail	0.23 in	5.84 mm	0.051 in	1.3 mm	Beryllium Copper	0.025 in	0.64 mm	11.68 mm	0.46 in	0.062 in	1.57 mm	Press-Fit	Gold	10 Áin	0.25 Ám	0.025 in	0.64 mm
Mill-Max Manufacturing Corp. 0399-0-15-80-47-14-04-0	-55 C	125 °C	0.64 mm	0.037 in	0.94 mm	0.025 in	0.072 "	1.83 mm	Standard Tail	0.23 in	5.84 mm	0.051 in	1.3 mm	Beryllium Copper	0.025 in	0.64 mm	11.68 mm	0.46 in	0.062 in	1.57 mm	Press-Fit	Gold	10 Áin	0.25 Ám	0.025 in	0.64 mm
Mill-Max Manufacturing Corp. 0399-0-15-01-47-27-04-0	-55 C	125 °C	0.64 mm	0.037 in	0.94 mm	0.025 in	0.072 "	1.83 mm	Standard Tail	0.23 in	5.84 mm	0.051 in	1.3 mm	Beryllium Copper	0.025 in	0.64 mm	11.68 mm	0.46 in	0.062 in	1.57 mm	Press-Fit	Gold	30 Áin	0.76 Ám	0.025 in	0.64 mm
Mill-Max Manufacturing Corp. 0399-0-15-01-47-14-04-0	-55 C	125 °C	0.64 mm	0.037 in	0.94 mm	0.025 in	0.072 "	1.83 mm	Standard Tail	0.23 in	5.84 mm	0.051 in	1.3 mm	Beryllium Copper	0.025 in	0.64 mm	11.68 mm	0.46 in	0.062 in	1.57 mm	Press-Fit	Gold	10 Áin	0.25 Ám	0.025 in	0.64 mm

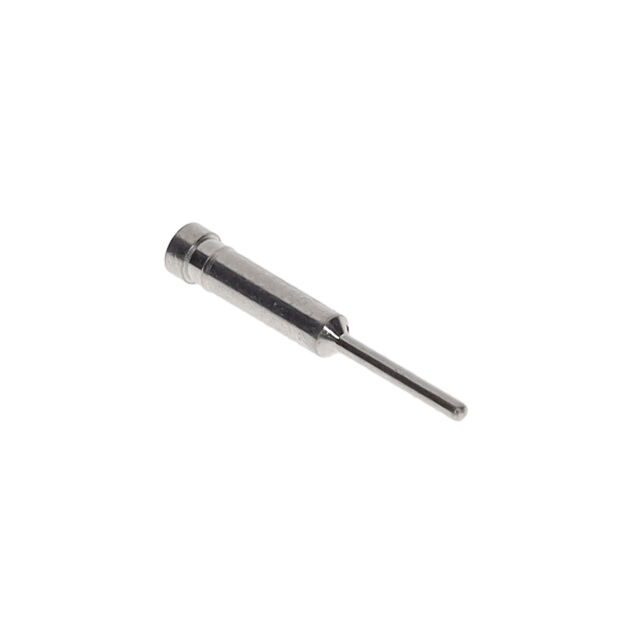

Mill-Max Manufacturing Corp. 0399-0-15-01-47-01-04-0	-55 C	125 °C	0.64 mm	0.037 in	0.94 mm	0.025 in	0.072 "	1.83 mm	Standard Tail	0.23 in	5.84 mm	0.051 in	1.3 mm	Beryllium Copper	0.025 in	0.64 mm	11.68 mm	0.46 in	0.062 in	1.57 mm	Press-Fit	Tin-Lead	200 Áin	5.08 Ám	0.025 in	0.64 mm

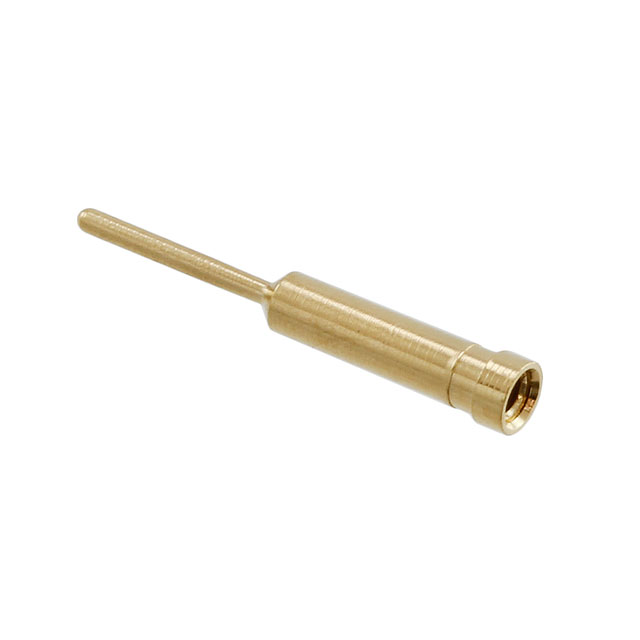

Mill-Max Manufacturing Corp. 0399-0-15-15-47-27-04-0	-55 C	125 °C	0.64 mm	0.037 in	0.94 mm	0.025 in	0.072 "	1.83 mm	Standard Tail	0.23 in	5.84 mm	0.051 in	1.3 mm	Beryllium Copper	0.025 in	0.64 mm	11.68 mm	0.46 in	0.062 in	1.57 mm	Press-Fit	Gold	30 Áin	0.76 Ám	0.025 in	0.64 mm
