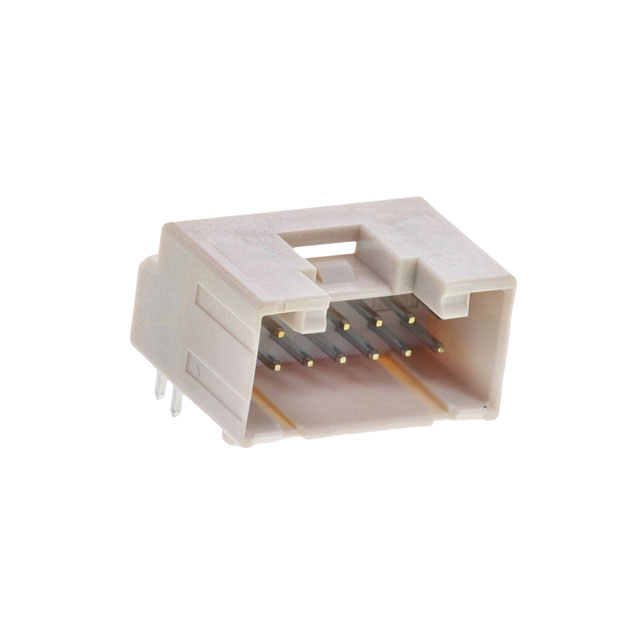

S14B-PUD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 14POS 2MM
| Part | Material Flammability Rating | Fastening Type | Number of Rows [custom] | Insulation Color | Pitch - Mating | Pitch - Mating | Style | Current Rating (Amps) | Insulation Material | Mounting Type | Shrouding | Connector Type | Contact Finish - Post | Number of Positions Loaded | Features | Termination | Voltage Rating | Number of Positions | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Row Spacing - Mating | Row Spacing - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Contact Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | UL94 V-0 | Latch Holder | 2 | Natural | 0.079 " | 2 mm | Board to Cable/Wire | 3 A | Glass Filled Nylon 6/6 Polyamide (PA66) | Right Angle Through Hole | Shrouded - 4 Wall | Header | Tin | All | Board Guide | Solder | 250 V | 14 | 0.335 " | 8.51 mm | 0.118 in | 3 mm | 2 mm | 0.079 in | 85 °C | -25 °C | Square | Male Pin | Copper Alloy |
