SRP4020FA Series

Catalog

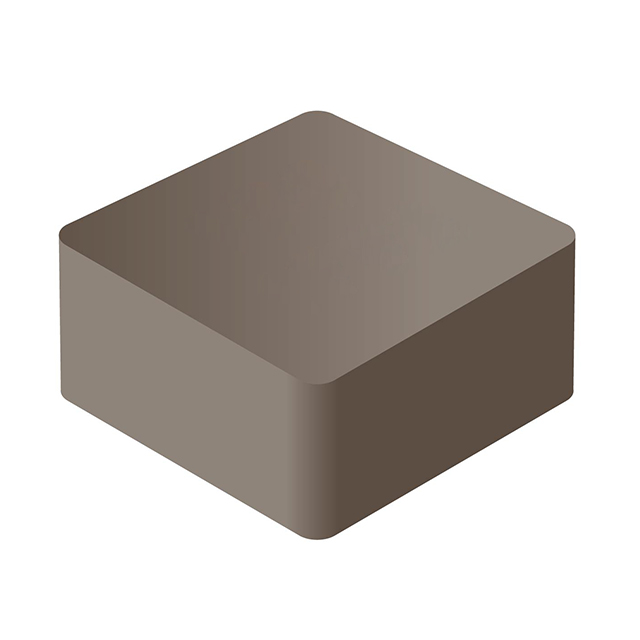

POWER INDUCTOR (SMD), 470 NH, 13.2 A, SHIELDED, 14 A, SRP4020FA SERIES

Part	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Saturation (Isat)	Mounting Type	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Tolerance	Package / Case	Frequency - Self Resonant	Ratings	Q @ Freq	Material - Core	Current Rating (Amps)	DC Resistance (DCR) [Max]
Bourns Inc. SRP4020FA-R47M	470 nH	2.1 mm	0.083 in	10 A	Surface Mount	100 kHz	0.161 in	4.1 mm	0.161 "	4.1 mm	6.8 mOhm	Drum Core Wirewound	155 C	-55 C	Shielded	20 %	Nonstandard	90 MHz	AEC-Q200	30 100 kHz	Iron Powder	13.2 A
Bourns Inc. SRP4020FA-1R0M	1 µH	2.1 mm	0.083 in	5.4 A	Surface Mount	100 kHz	0.161 in	4.1 mm	0.161 "	4.1 mm		Drum Core Wirewound	155 C	-55 C	Shielded	20 %	Nonstandard	56 MHz	AEC-Q200	20 100 kHz	Iron Powder	11 A	11.7 mOhm
Bourns Inc. SRP4020FA-1R5M	1.5 µH	2.1 mm	0.083 in	4.5 A	Surface Mount	100 kHz	0.161 in	4.1 mm	0.161 "	4.1 mm		Drum Core Wirewound	155 C	-55 C	Shielded	20 %	Nonstandard	45 MHz	AEC-Q200	20 100 kHz	Iron Powder	9.1 A	15.8 mOhm
Bourns Inc. SRP4020FA-R68M	0.68 µH	2.1 mm	0.083 in	8 A	Surface Mount	100 kHz	0.161 in	4.1 mm	0.161 "	4.1 mm		Drum Core Wirewound	155 C	-55 C	Shielded	20 %	Nonstandard	73 MHz	AEC-Q200	20 100 kHz	Iron Powder	12 Amps	8.2 mOhm
Bourns Inc. SRP4020FA-2R0M	2 µH	2.1 mm	0.083 in	4 A	Surface Mount	100 kHz	0.161 in	4.1 mm	0.161 "	4.1 mm	23.3 mOhm	Drum Core Wirewound	155 C	-55 C	Shielded	20 %	Nonstandard	40 MHz	AEC-Q200	15 100 kHz	Iron Powder	8.2 A
Bourns Inc. SRP4020FA-1R2M	1.2 µH	2.1 mm	0.083 in	5 A	Surface Mount	100 kHz	0.161 in	4.1 mm	0.161 "	4.1 mm	13.4 mOhm	Drum Core Wirewound	155 C	-55 C	Shielded	20 %	Nonstandard	53 MHz	AEC-Q200	20 100 kHz	Iron Powder	9.5 A
