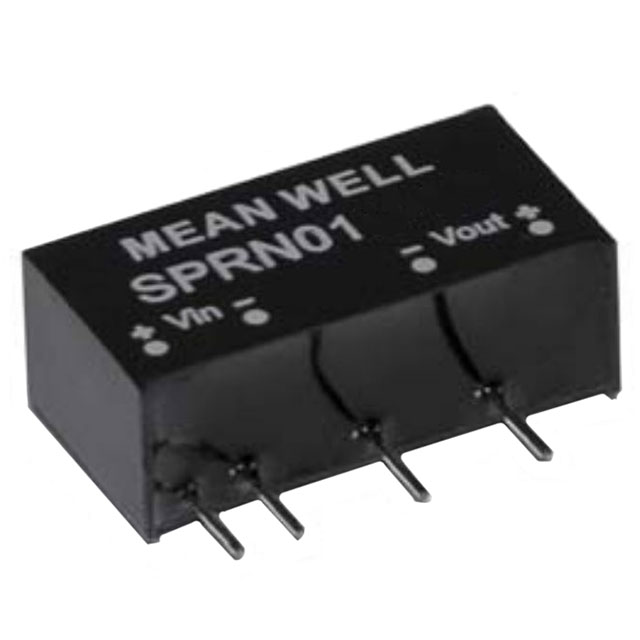

SPRN01 Series

Catalog

DC/DC CONVERTER

Part	Voltage - Isolation	Current - Output (Max) [Max]	Type	Voltage - Output 1	Power (Watts)	Efficiency	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Mounting Type	Approval Agency	Voltage - Input (Min) [Min]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]
MEAN WELL USA Inc. SPRN01M-15	1.5 kV	67 mA	Isolated Module	15 V	1.005 W	73 %	6-SIP Module 4 Leads	7.1 mm	0.77 in	0.28 in	0.4 "	19.6 mm	10.1 mm	1	Through Hole	CE EAC UKCA	11.4 V	ITE (Commercial)	90 °C	-40 °C	13.2 V
MEAN WELL USA Inc. SPRN01M-05	1.5 kV	200 mA	Isolated Module	5 V		72 %	6-SIP Module 4 Leads	7.1 mm	0.77 in	0.28 in	0.4 "	19.6 mm	10.1 mm	1	Through Hole	CE EAC UKCA	11.4 V	ITE (Commercial)	90 °C	-40 °C	13.2 V
MEAN WELL USA Inc. SPRN01N-05	1.5 kV	200 mA	Isolated Module	5 V		67 %	6-SIP Module 4 Leads	7.1 mm	0.77 in	0.28 in	0.4 "	19.6 mm	10.1 mm	1	Through Hole	CE EAC UKCA	22.8 V	ITE (Commercial)	90 °C	-40 °C	26.4 V
MEAN WELL USA Inc. SPRN01N-12	1.5 kV	84 mA	Isolated Module	12 V	1.008 W	72 %	6-SIP Module 4 Leads	7.1 mm	0.77 in	0.28 in	0.4 "	19.6 mm	10.1 mm	1	Through Hole	CE EAC UKCA	22.8 V	ITE (Commercial)	90 °C	-40 °C	26.4 V
MEAN WELL USA Inc. SPRN01M-12	1.5 kV	84 mA	Isolated Module	12 V	1.008 W	72 %	6-SIP Module 4 Leads	7.1 mm	0.77 in	0.28 in	0.4 "	19.6 mm	10.1 mm	1	Through Hole	CE EAC UKCA	11.4 V	ITE (Commercial)	90 °C	-40 °C	13.2 V
MEAN WELL USA Inc. SPRN01O-12	1.5 kV	84 mA	Isolated Module	12 V	1.008 W	67 %	6-SIP Module 4 Leads	7.1 mm	0.77 in	0.28 in	0.4 "	19.6 mm	10.1 mm	1	Through Hole	CE EAC UKCA	45.6 V	ITE (Commercial)	90 °C	-40 °C	52.8 V
MEAN WELL USA Inc. SPRN01L-15	1.5 kV	67 mA	Isolated Module	15 V	1.005 W	71 %	6-SIP Module 4 Leads	7.1 mm	0.77 in	0.28 in	0.4 "	19.6 mm	10.1 mm	1	Through Hole	CE EAC UKCA	4.75 V	ITE (Commercial)	90 °C	-40 °C	5.5 V
MEAN WELL USA Inc. SPRN01L-12	1.5 kV	84 mA	Isolated Module	12 V	1.008 W	71 %	6-SIP Module 4 Leads	7.1 mm	0.77 in	0.28 in	0.4 "	19.6 mm	10.1 mm	1	Through Hole	CE EAC UKCA	4.75 V	ITE (Commercial)	90 °C	-40 °C	5.5 V
MEAN WELL USA Inc. SPRN01O-05	1.5 kV	200 mA	Isolated Module	5 V		67 %	6-SIP Module 4 Leads	7.1 mm	0.77 in	0.28 in	0.4 "	19.6 mm	10.1 mm	1	Through Hole	CE EAC UKCA	45.6 V	ITE (Commercial)	90 °C	-40 °C	52.8 V
