1986714 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
TERM BLK 10POS SIDE ENT 15MM PCB
| Part | Torque - Screw [Max] | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Min] | Wire Gauge [Max] | Wire Gauge [Min] | Clamp Material - Plating [custom] | Clamp Material - Plating [custom] | Current | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Material - Plating | Screw Material - Plating | Positions Per Level | Color | Mating Orientation | Screw Thread | Wire Termination | Housing Material | Number of Levels | Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

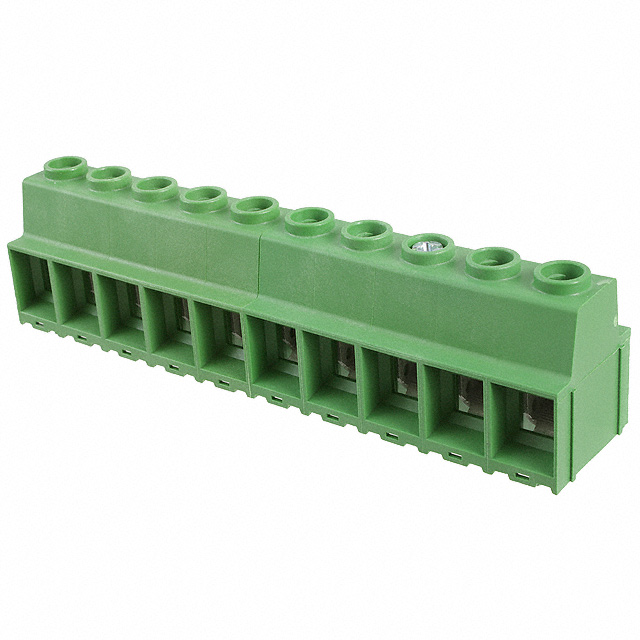

 TE Connectivity Raychem Cable Protection | 1.8 LbIn | 2.5 Nm | 2.1 Nm | 1.5 LbIn | 20 AWG | 1 AWG | Tin Plated | Steel | 130 A | 0.591 in | 15 mm | -40 °C | 110 °C | Through Hole | Copper Alloy - Tin Plated | Nickel Plated Steel | 10 | Green | Horizontal with Board | M5 | Screw | Polyamide (PA) Nylon | 1 | 600 V | Board Guide Interlocking (Side) |

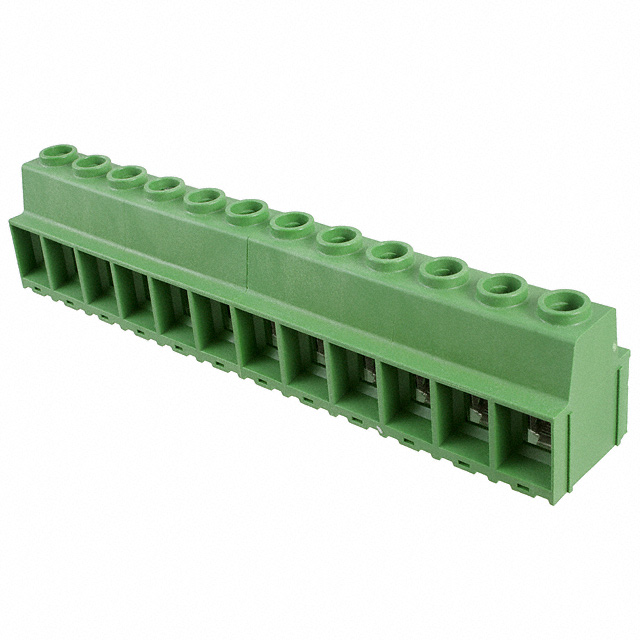

 TE Connectivity Raychem Cable Protection | 1.8 LbIn | 2.5 Nm | 2.1 Nm | 1.5 LbIn | 20 AWG | 1 AWG | Tin Plated | Steel | 130 A | 0.591 in | 15 mm | -40 °C | 110 °C | Through Hole | Copper Alloy - Tin Plated | Nickel Plated Steel | 12 | Green | Horizontal with Board | M5 | Screw | Polyamide (PA) Nylon | 1 | 600 V | Board Guide Interlocking (Side) |

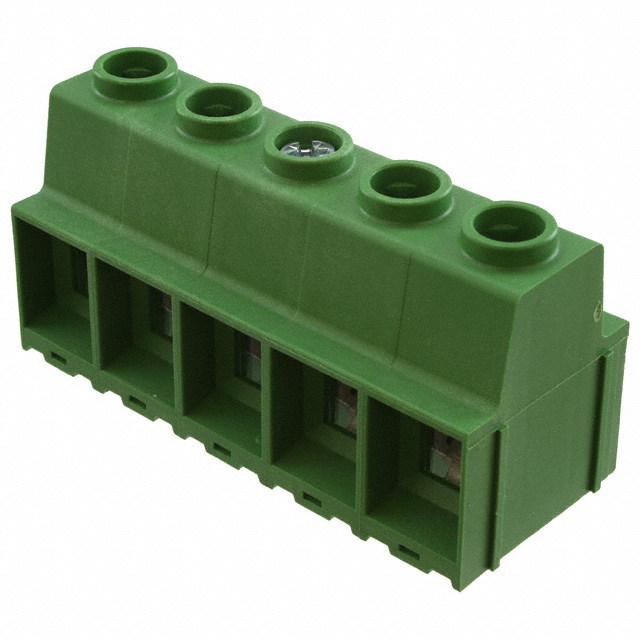

 TE Connectivity Raychem Cable Protection | 1.8 LbIn | 2.5 Nm | 2.1 Nm | 1.5 LbIn | 20 AWG | 1 AWG | Tin Plated | Steel | 130 A | 0.591 in | 15 mm | -40 °C | 110 °C | Through Hole | Copper Alloy - Tin Plated | Nickel Plated Steel | 5 | Green | Horizontal with Board | M5 | Screw | Polyamide (PA) Nylon | 1 | 600 V | Board Guide Interlocking (Side) |
 TE Connectivity Raychem Cable Protection | 1.8 LbIn | 2.5 Nm | 2.1 Nm | 1.5 LbIn | 20 AWG | 1 AWG | Tin Plated | Steel | 130 A | 0.591 in | 15 mm | -40 °C | 110 °C | Through Hole | Copper Alloy - Tin Plated | Nickel Plated Steel | 9 | Green | Horizontal with Board | M5 | Screw | Polyamide (PA) Nylon | 1 | 600 V | Board Guide Interlocking (Side) |

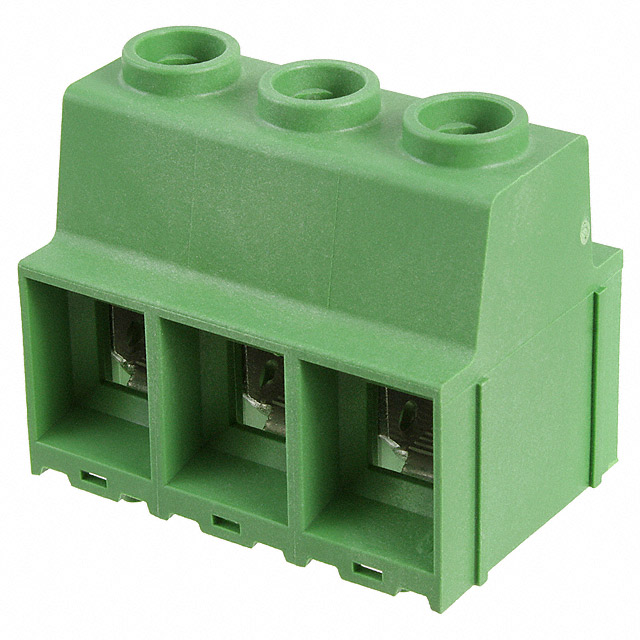

 TE Connectivity Raychem Cable Protection | 1.8 LbIn | 2.5 Nm | 2.1 Nm | 1.5 LbIn | 20 AWG | 1 AWG | Tin Plated | Steel | 130 A | 0.591 in | 15 mm | -40 °C | 110 °C | Through Hole | Copper Alloy - Tin Plated | Nickel Plated Steel | 3 | Green | Horizontal with Board | M5 | Screw | Polyamide (PA) Nylon | 1 | 600 V | Board Guide Interlocking (Side) |
 TE Connectivity Raychem Cable Protection | 1.8 LbIn | 2.5 Nm | 2.1 Nm | 1.5 LbIn | 20 AWG | 1 AWG | Tin Plated | Steel | 130 A | 0.591 in | 15 mm | -40 °C | 110 °C | Through Hole | Copper Alloy - Tin Plated | Nickel Plated Steel | 4 | Green | Horizontal with Board | M5 | Screw | Polyamide (PA) Nylon | 1 | 600 V | Board Guide Interlocking (Side) |

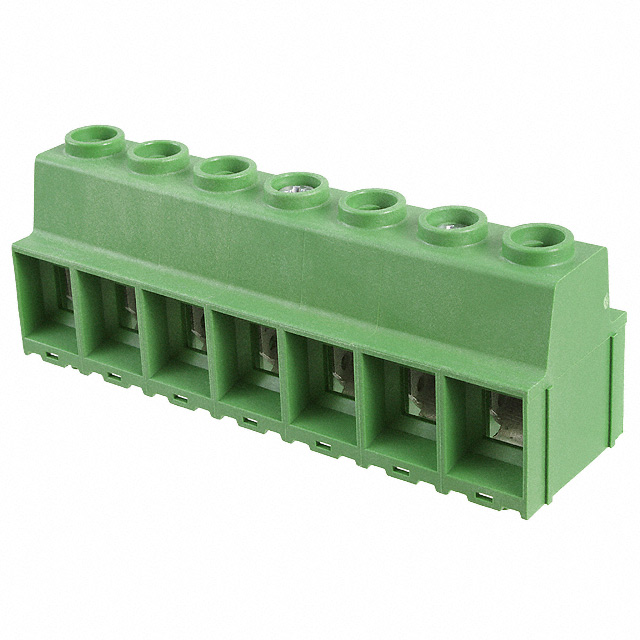

 TE Connectivity Raychem Cable Protection | 1.8 LbIn | 2.5 Nm | 2.1 Nm | 1.5 LbIn | 20 AWG | 1 AWG | Tin Plated | Steel | 130 A | 0.591 in | 15 mm | -40 °C | 110 °C | Through Hole | Copper Alloy - Tin Plated | Nickel Plated Steel | 7 | Green | Horizontal with Board | M5 | Screw | Polyamide (PA) Nylon | 1 | 600 V | Board Guide Interlocking (Side) |
 TE Connectivity Raychem Cable Protection | 1.8 LbIn | 2.5 Nm | 2.1 Nm | 1.5 LbIn | 20 AWG | 1 AWG | Tin Plated | Steel | 130 A | 0.591 in | 15 mm | -40 °C | 110 °C | Through Hole | Copper Alloy - Tin Plated | Nickel Plated Steel | 2 | Green | Horizontal with Board | M5 | Screw | Polyamide (PA) Nylon | 1 | 600 V | Board Guide Interlocking (Side) |
