19628061 Series
Manufacturer: HARTING
Beta
⌘K
6B SURFACE MOUNT HOUSING, SINGLE LEVER, LOW CONSTRUCTION, 1XM20 - HIGH TEMP VERSION
| Part | Connector Type | Lock Location | Thread Size | Size | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Style | Size / Dimension | Features | Housing Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

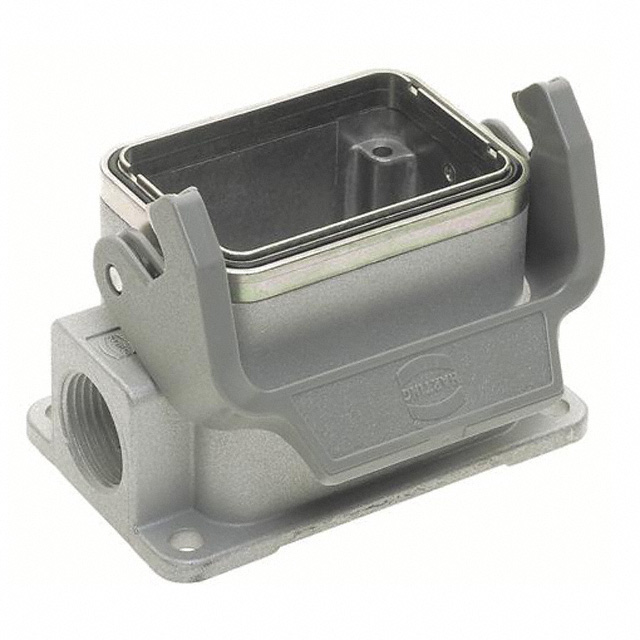

 HARTING | Base - Box Mount | Locking Clip (1) on Base Bottom | M20 | 6B | 51.5 mm | 2.028 in | 82 mm | 2.047 in | 52 mm | 3.228 in | IP65 - Dust Tight Water Resistant | -40 C | 200 °C | Aluminum Die Cast | Side Entry | |||

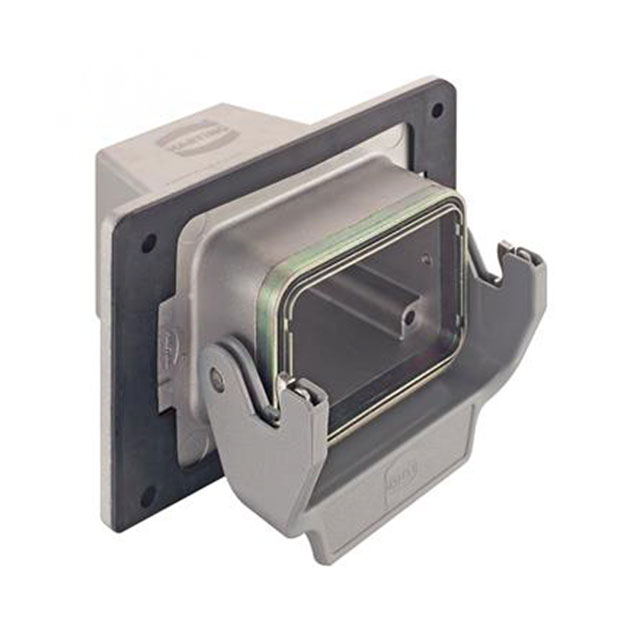

 HARTING | Hood - Panel Mount | Locking Clip (1) on Hood | M25 | 6B | 104 mm | 2.776 in | 70.5 mm | 4.094 " | IP65 - Dust Tight Water Resistant | -40 C | 125 °C | Aluminum Die Cast | Top Entry | 3.165 | ||||

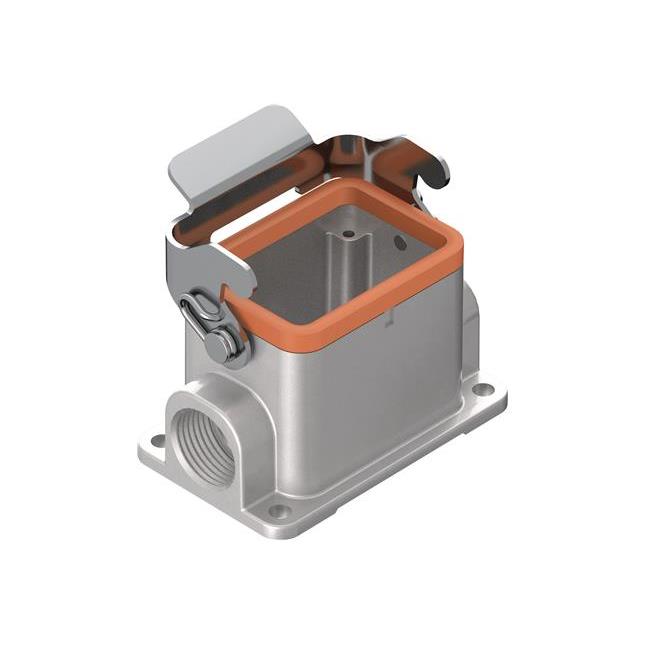

 HARTING | Base - Box Mount | Locking Clip (1) on Base Bottom | M20 | 6B | IP65 - Dust Tight Water Resistant | -40 C | 125 °C | Aluminum Die Cast | Side Entry | Feed Through | EMC Coating | |||||||

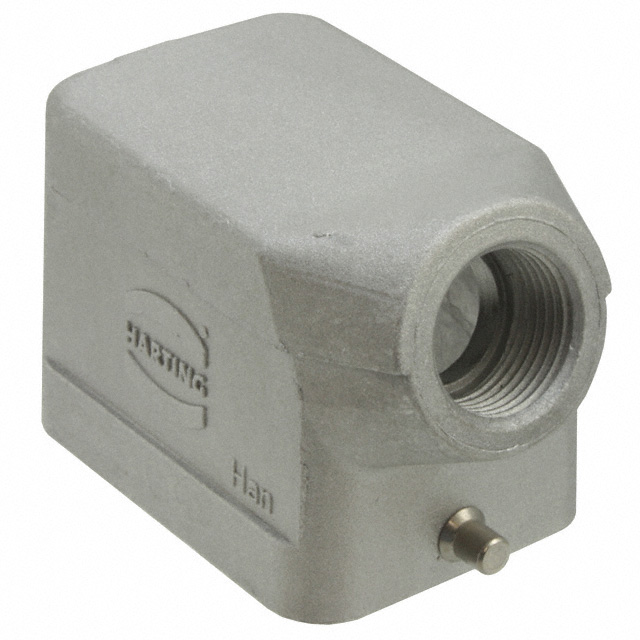

 HARTING | Hood | Locking Clip (1) on Base Bottom | M20 | 6B | 50.2 mm | 1.976 in | 60 mm | 1.693 " | 43 mm | 2.362 in | IP65 - Dust Tight Water Resistant | -40 C | 125 °C | Aluminum Die Cast | Side Entry | EMC Coating | ||

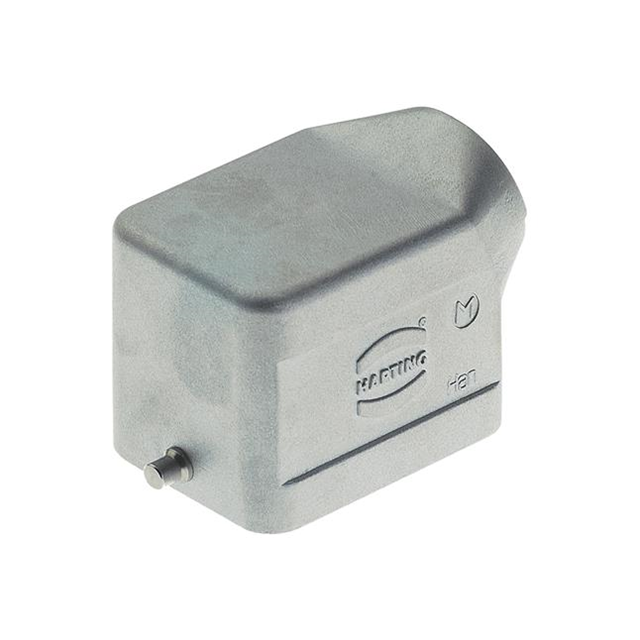

 HARTING | Hood | Locking Clip (1) on Base Bottom | M25 | 6B | IP65 IP66 | -40 C | 125 °C | Aluminum Die Cast | Side Entry |
