045570 Series

Manufacturer: Molex

Catalog

CONN 18-20AWG CRIMP TIN

Part	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness	Contact Termination
Molex 0455703000	Tin	17.5 AWG	20 AWG	Non-Gendered	80 Áin	2.03 Ám	Crimp

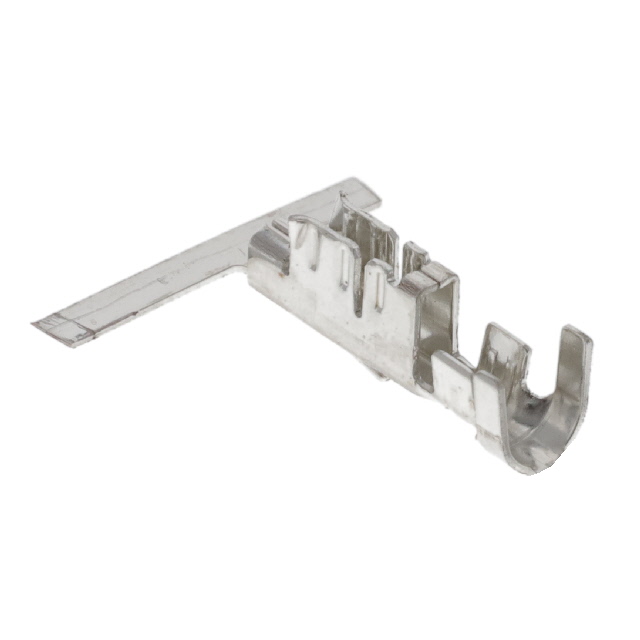

Molex 0455703002	Tin	17.5 AWG	20 AWG	Non-Gendered	200 Áin	5.08 Ám	Crimp

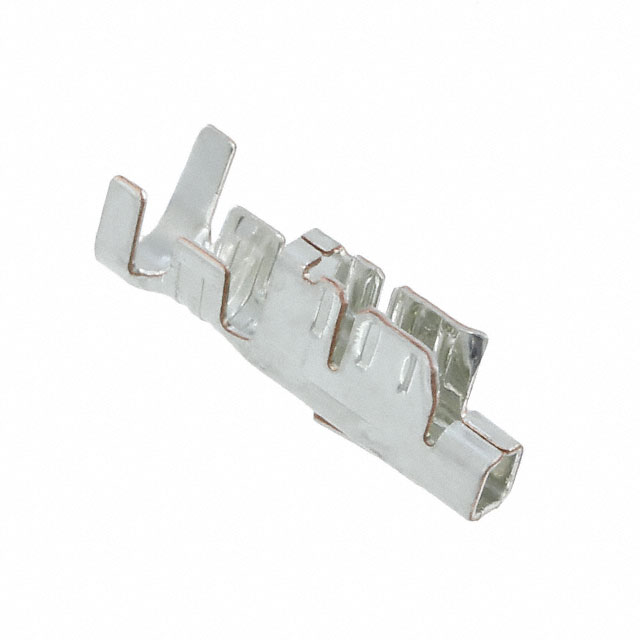

Molex 0455703050	Tin	17.5 AWG	20 AWG	Non-Gendered	80 Áin	2.03 Ám	Crimp

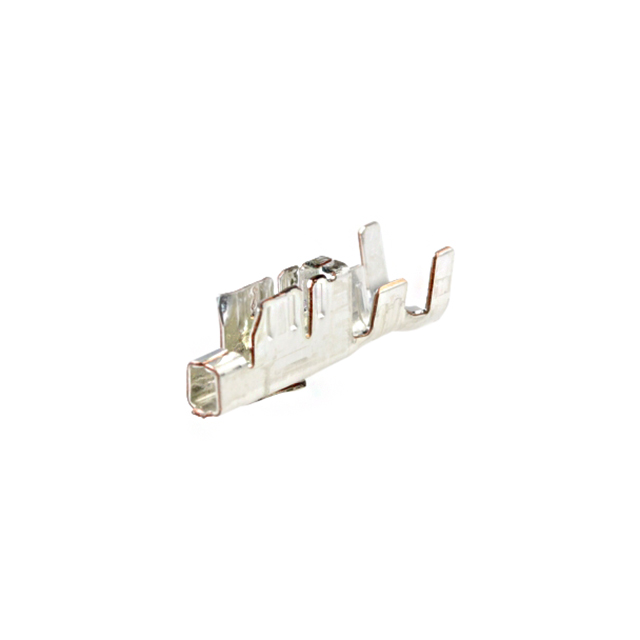

Molex 0455703052	Tin	17.5 AWG	20 AWG	Non-Gendered	200 Áin	5.08 Ám	Crimp
