1986726 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLOCK PLUG 16POS STR 3.81MM

Part	Features	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Current - UL	Material Flammability Rating	Voltage - UL	Mounting Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Color	Housing Material	Positions Per Level	Termination Style	Contact Material	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Contact Mating Finish	Type	Number of Positions	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Number of Positions

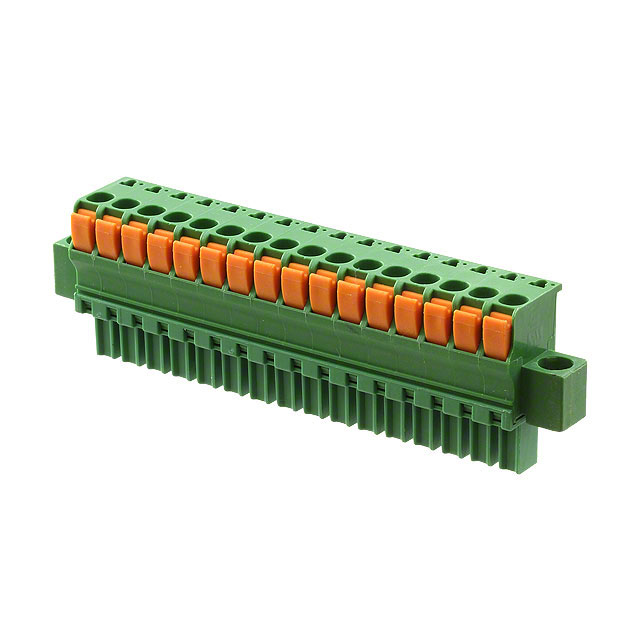

TE Connectivity Raychem Cable Protection 1-1986726-6	Mating Flange	0.05 mm²	2 mm²	9 A	UL94 V-0	300 V	Free Hanging (In-Line)	14 AWG	30 AWG	-40 °C	110 °C	1	Green	Polyamide (PA) Nylon	16	Push-In Spring Screwless - Leg Spring	Copper Alloy	11.66 mm	0.459 in	0.15 in	3.81 mm	Tin	Plug Female Sockets	16

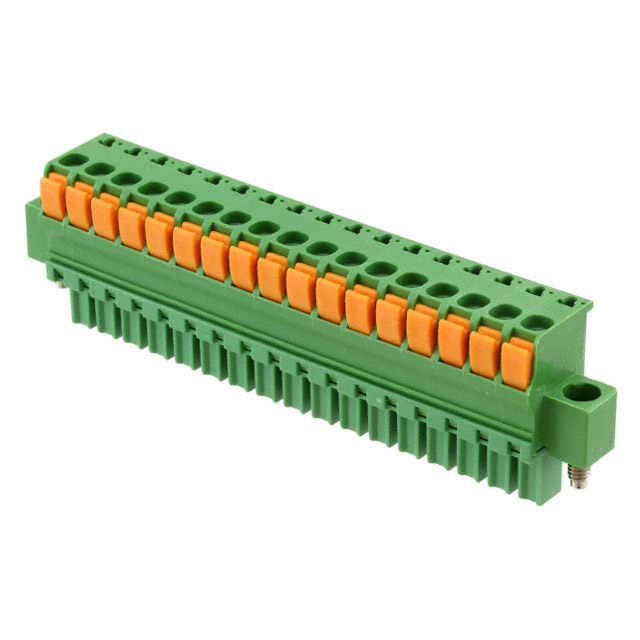

TE Connectivity Raychem Cable Protection 1-1986726-7	Mating Flange			9 A	UL94 V-0	300 V	Free Hanging (In-Line)	14 AWG	30 AWG	-40 °C	110 °C	1	Green	Polyamide (PA) Nylon	17	Push-In Spring Screwless - Leg Spring	Copper Alloy	11.66 mm	0.459 in	0.15 in	3.81 mm	Tin	Plug Female Sockets		2 mm˛	0.05 mm˛
TE Connectivity Raychem Cable Protection 2-1986726-3	Mating Flange	0.05 mm²	2 mm²	9 A	UL94 V-0	300 V	Free Hanging (In-Line)	14 AWG	30 AWG	-40 °C	110 °C	1	Green	Polyamide (PA) Nylon	23	Push-In Spring Screwless - Leg Spring	Copper Alloy	11.66 mm	0.459 in	0.15 in	3.81 mm	Tin	Plug Female Sockets				23

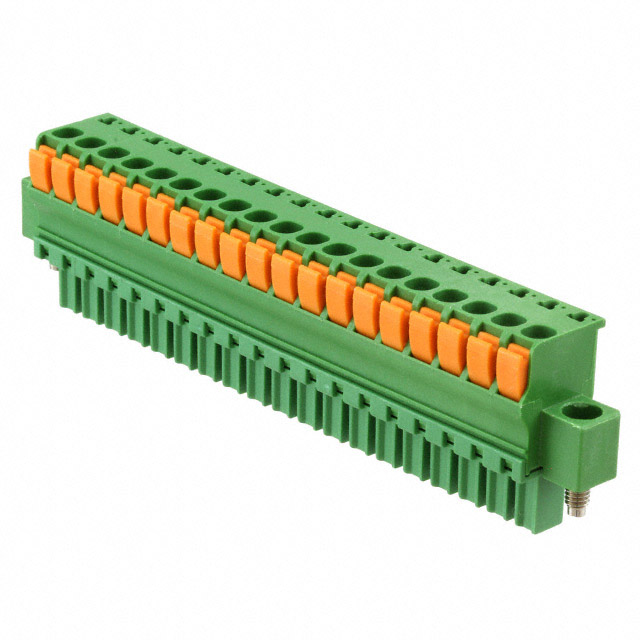

TE Connectivity Raychem Cable Protection 1-1986726-9	Mating Flange	0.05 mm²	2 mm²	9 A	UL94 V-0	300 V	Free Hanging (In-Line)	14 AWG	30 AWG	-40 °C	110 °C	1	Green	Polyamide (PA) Nylon	19	Push-In Spring Screwless - Leg Spring	Copper Alloy	11.66 mm	0.459 in	0.15 in	3.81 mm	Tin	Plug Female Sockets				19
