BM6101FV-C Series

1ch Gate Driver Providing Galvanic Isolation

Catalog

1ch Gate Driver Providing Galvanic Isolation

Part	Technology	Voltage - Isolation	Package / Case	Voltage - Output Supply [Max]	Voltage - Output Supply [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Number of Channels	Current - Peak Output	Propagation Delay tpLH / tpHL (Max)	Qualification	Operating Temperature [Max]	Operating Temperature [Min]	Grade	Mounting Type	Common Mode Transient Immunity (Min) [Min]	Supplier Device Package

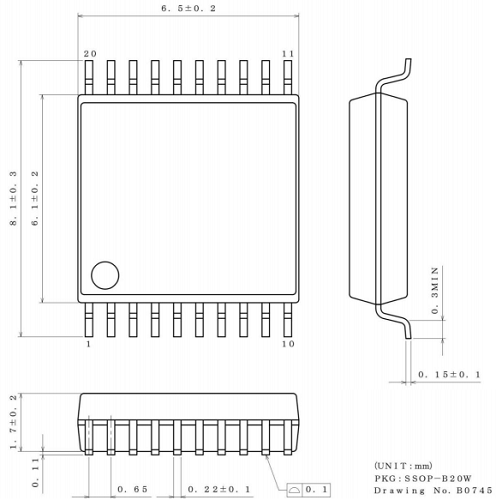

Rohm Semiconductor BM6101FV-CE2	Magnetic Coupling	2500 Vrms	20-SSOP	24 V	14 V	50 ns	50 ns	1	1 A 5 A	350 ns 350 ns	AEC-Q100	125 °C	-40 °C	Automotive	Surface Mount	100 V/µs	20-SSOP-B

Catalog

1ch Gate Driver Providing Galvanic Isolation

Description

The BM6101FV-C is successor of BM6103FV-C. This IC is a gate driver with isolation voltage 2500Vrms, I/O delay time of 350ns, and minimum input pulse width of 180ns, and incorporates the fault signal output functions, undervoltage lockout (UVLO) function, thermal protection function, and short current protection (SCP, DESAT) function.For sale of this product, please contact the specifications in our sales office. Currently, we don't sell this on the internet distributors now.
