VK204 Series

Catalog

DISPLAY VACUUM FLORESCENT 4X20

Part	Character Size [y]	Character Size [z]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Outline L x W x H [x]	Outline L x W x H [y]	Outline L x W x H [z]	Viewing Area [y]	Viewing Area [x]	Display Type	Display Format [x]	Display Format [y]	Interface	Number of Dots [custom]	Format [y]	Format	Format [x]	Character Size [x]
Matrix Orbital VK204-25-422-VPT	4.7 mm	2.4 mm	-20 ░C	70 °C	35 V	9 V	98 mm	60 mm	28.98 mm	20.9 mm	70.8 mm	Character	20	4
Matrix Orbital VK204-25-422-VPT-E	4.7 mm	2.4 mm	-20 ░C	70 °C	35 V	9 V	98 mm	60 mm	28.98 mm	20.9 mm	70.8 mm	Character	20	4
Matrix Orbital VK204-25-VPT-E	4.7 mm	2.4 mm	-40 C	85 °C	15 V	9 V	98 mm	60 mm	28.98 mm	20.9 mm	70.8 mm	Character	20	2	I2C

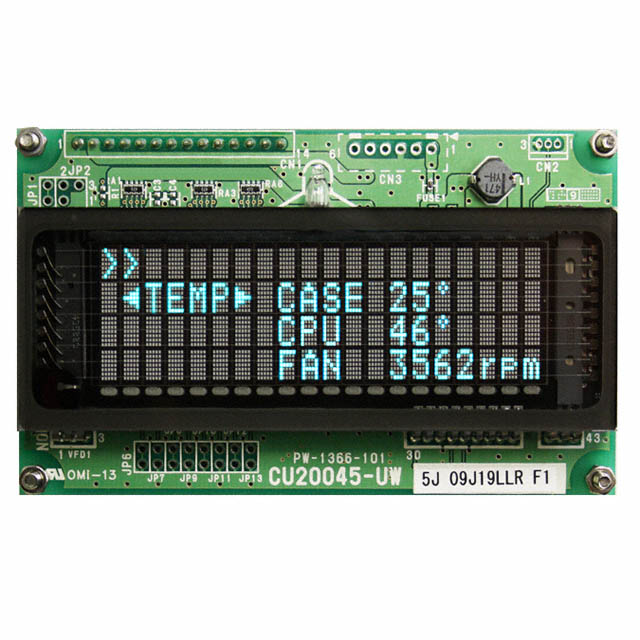

Matrix Orbital VK204-25-422-E	2.4 mm		-40 C	85 °C	5.25 V	4.75 V	98 mm	60 mm	30.5 mm	20.9 mm	70.8 mm	Character	20	4		28 100	7	Dots	5 Dots	4.7 mm

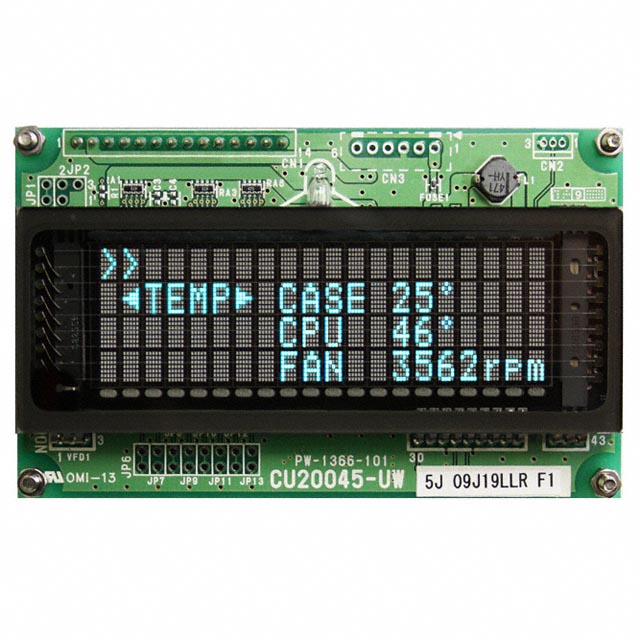

Matrix Orbital VK204-25-VPT	2.4 mm		-20 ░C	70 °C	35 V	9 V	98 mm	60 mm	27.7 mm	20.9 mm	70.8 mm	Character	20	4	Serial		7	Dots	5 Dots	4.7 mm
Matrix Orbital VK204-25-USB-E	2.4 mm		-40 C	85 °C	5.25 V	4.75 V	98 mm	60 mm	30.5 mm	20.9 mm	70.8 mm	Character	20	4	USB	28 100	7	Dots	5 Dots	4.7 mm

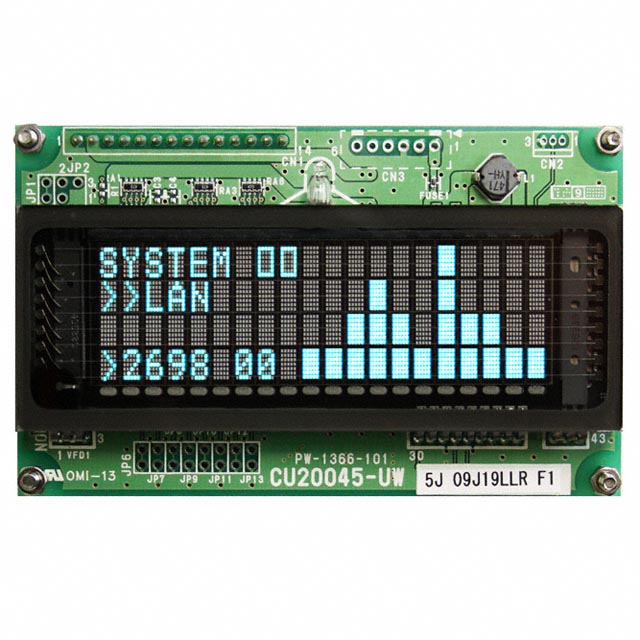

Matrix Orbital VK204-25-E	2.4 mm		-40 C	85 °C	15 V	9 V	98 mm	60 mm	27.7 mm	20.9 mm	70.8 mm	Character	20	4	Serial		7	Dots	5 Dots	4.7 mm

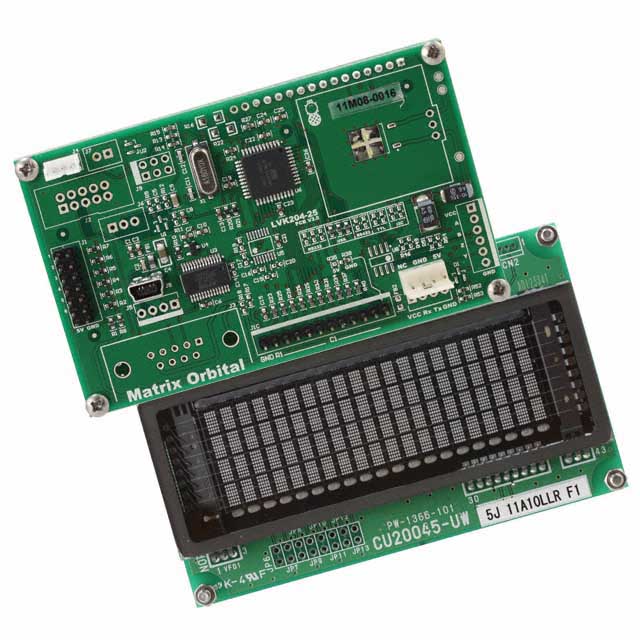

Matrix Orbital VK204-25-USB	2.4 mm		-20 ░C	70 °C	5.25 V	4.75 V	98 mm	60 mm	30.5 mm	20.9 mm	70.8 mm	Character	20	4	USB		7	Dots	5 Dots	4.7 mm
Matrix Orbital VK204-25	2.4 mm		-20 ░C	70 °C			98 mm	60 mm	27.7 mm	20.9 mm	70.8 mm	Character	20	4	Serial		7	Dots	5 Dots	4.7 mm

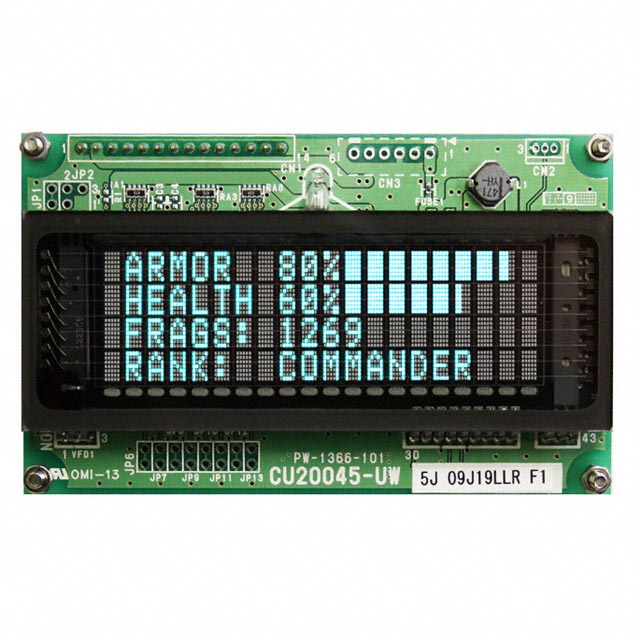

Matrix Orbital VK204-25-422	2.4 mm		-20 ░C	70 °C	5.25 V	4.75 V	98 mm	60 mm	30.5 mm	20.9 mm	70.8 mm	Character	20	4			7	Dots	5 Dots	4.7 mm
