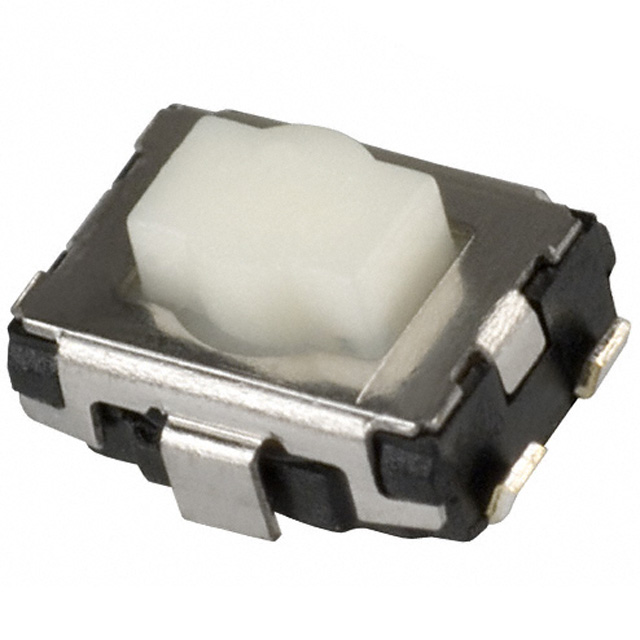

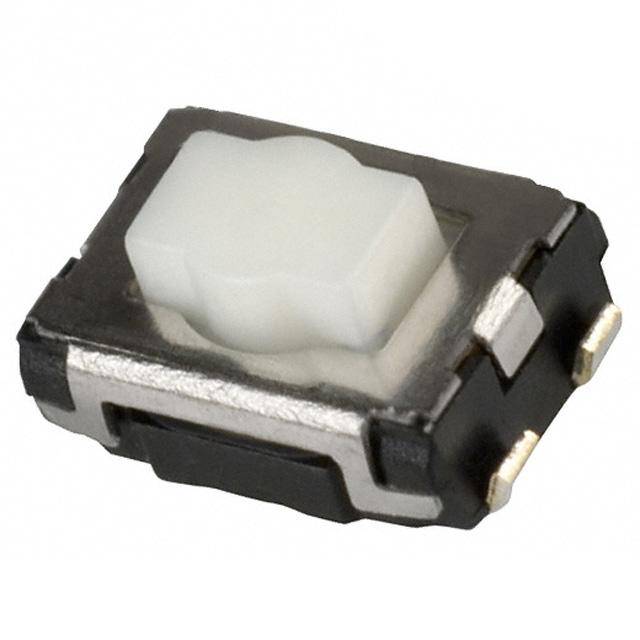

EVQ-P2 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Switch Function	Operating Force	Outline [y]	Outline [x]	Switch Travel	Mounting Type	Actuator Type	Termination Style	Features	Illumination	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Mechanical Life	Contact Rating @ Voltage [x]	Circuit	Operating Temperature [Max]	Operating Temperature [Min]
Panasonic Industrial Automation Sales EVQ-P2P02M	Off-Mom	100 gf	3.5 mm	4.7 mm	0.25 mm	Surface Mount	Rectangular Button	J Lead	Grounding Pin	Non-Illuminated	Top Actuated	2.1 mm	1000000 Cycles	0.02 A 15 VDC	SPST-NO	85 °C	-40 °C

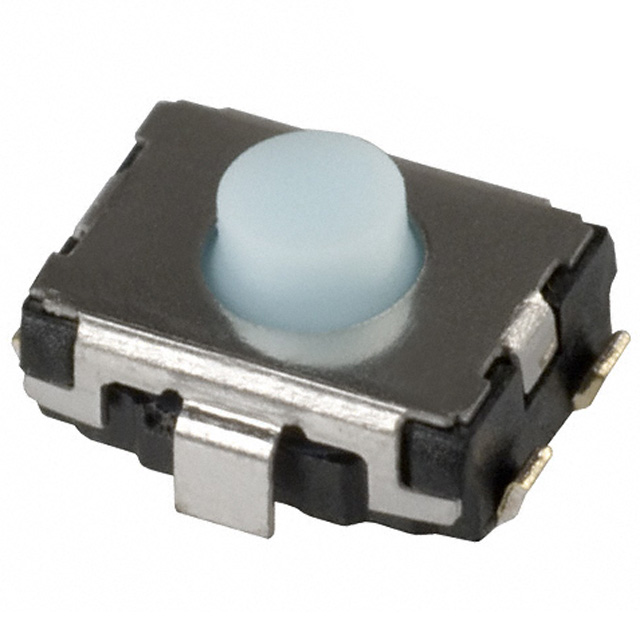

Panasonic Industrial Automation Sales EVQ-P2B02B	Off-Mom	0.25 kgf	3.5 mm	4.7 mm	0.7 mm	Surface Mount	Standard	J Lead	Grounding Pin	Non-Illuminated	Top Actuated	2.5 mm	1000000 Cycles	0.02 A 15 VDC	SPST-NO	85 °C	-40 °C
Panasonic Industrial Automation Sales EVQ-P2402M	Off-Mom	240 gf	3.5 mm	4.7 mm	0.25 mm	Surface Mount	Rectangular Button	J Lead		Non-Illuminated	Top Actuated	2.1 mm	500000 Cycles	0.02 A 15 VDC	SPST-NO	85 °C	-40 °C
Panasonic Industrial Automation Sales EVQ-P2R02M	Off-Mom		3.5 mm	4.7 mm	0.25 mm	Surface Mount	Rectangular Button	J Lead	Grounding Pin	Non-Illuminated	Top Actuated	2.1 mm	1000000 Cycles	0.02 A 15 VDC	SPST-NO	85 °C	-40 °C

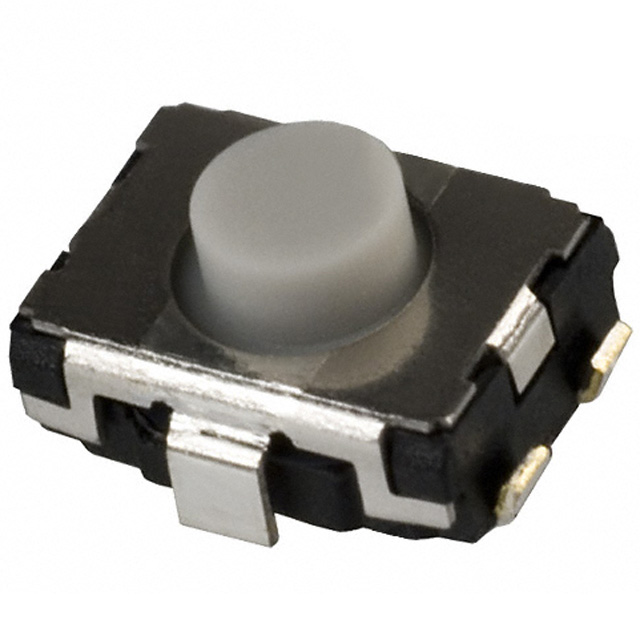

Panasonic Industrial Automation Sales EVQ-P2D02Q	Off-Mom	350 gf	3.5 mm	4.7 mm	0.7 mm	Surface Mount	Standard	J Lead	Grounding Pin	Non-Illuminated	Top Actuated	2.5 mm	500000 Cycles	0.02 A 15 VDC	SPST-NO	85 °C	-40 °C
Panasonic Industrial Automation Sales EVQ-P2202W	Off-Mom		3.5 mm	4.7 mm	0.25 mm	Surface Mount	Rectangular Button	J Lead		Non-Illuminated	Top Actuated	2.5 mm	1000000 Cycles	0.02 A 15 VDC	SPST-NO	85 °C	-40 °C
Panasonic Industrial Automation Sales EVQ-P2T02M	Off-Mom	240 gf	3.5 mm	4.7 mm	0.25 mm	Surface Mount	Rectangular Button	J Lead	Grounding Pin	Non-Illuminated	Top Actuated	2.1 mm	500000 Cycles	0.02 A 15 VDC	SPST-NO	85 °C	-40 °C
