Schaffner RD-Series Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

COMMON MODE CHOKES DUAL 5000UH 1KHZ 25A 0.00845OHM DCR THRU-HOLE

...

Part	DC Resistance (DCR) (Max)	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Number of Lines	Package / Case	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Height (Max) [z]	Height (Max) [z]	Inductance @ Frequency	Voltage Rating - DC	Current Rating (Max)	Filter Type	DC Resistance (DCR) (Max) [Max]
TE Connectivity AMP Connectors RD8127-25-5M0	8.45 mOhm	Through Hole	80 mm	3.15 "	80 mm	3.15 in	2	4 PC Pin Horizontal	600 V	-25 °C	110 °C	50.5 mm	1.988 in	5 mH 400 Hz	850 V	25 A	Power Line

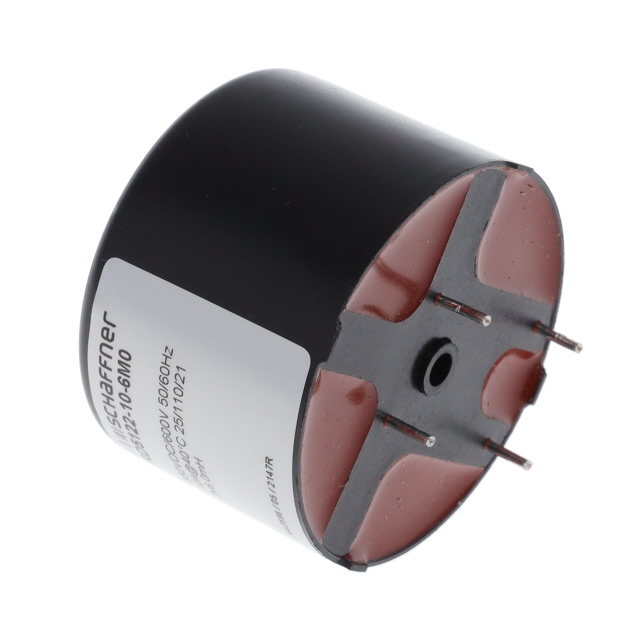

TE Connectivity AMP Connectors RD5122-10-6M0	24.25 mOhm	Through Hole	50 mm	1.969 "	50 mm	1.969 in	2	4 PC Pin Horizontal	600 V	-25 °C	110 °C	35.5 mm	1.398 in	6 mH 400 Hz	850 V	10 A	Power Line

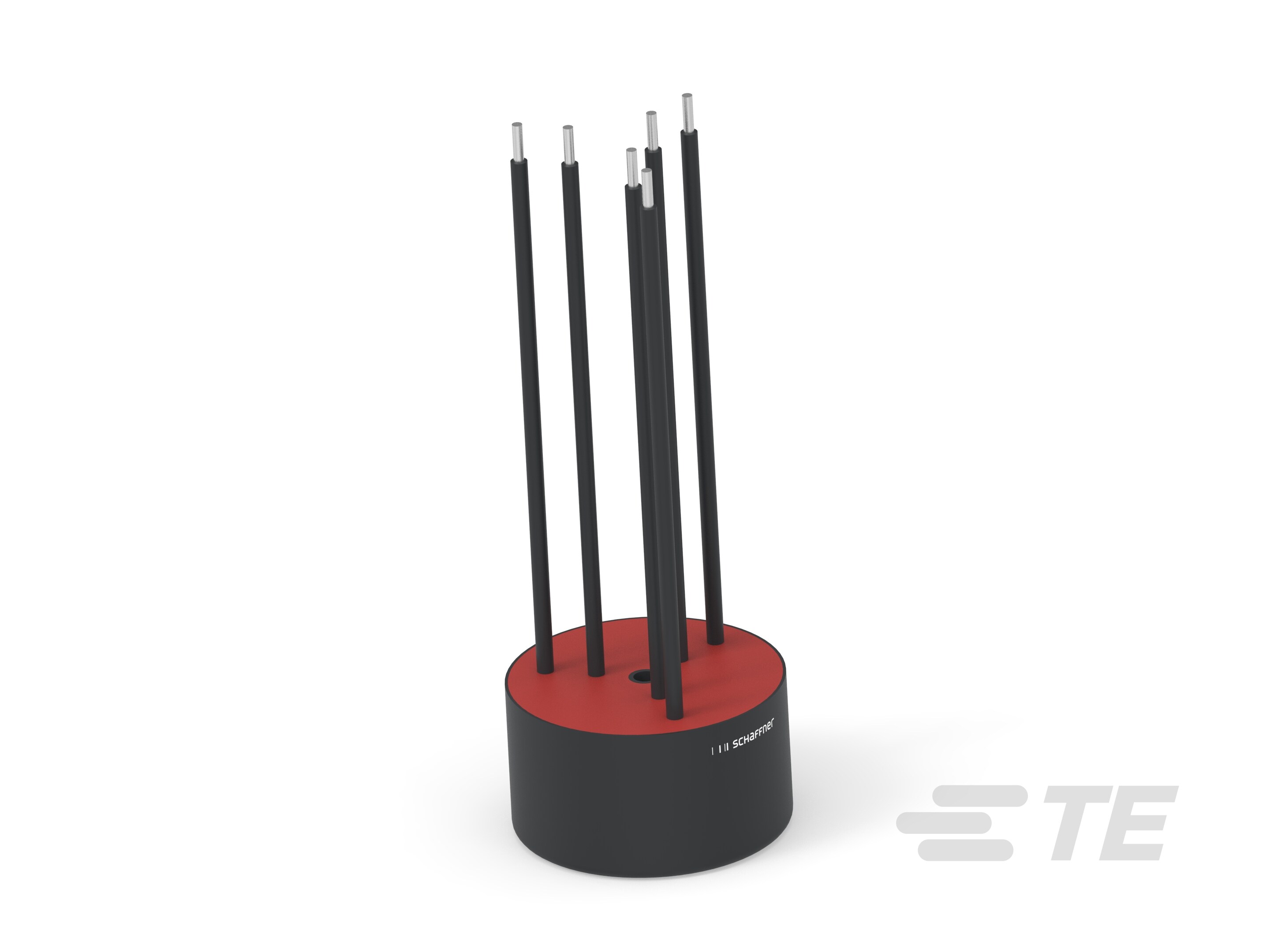

TE Connectivity AMP Connectors RD7137-36-0M5	2.75 mOhm	Through Hole	70 mm	2.756 "	70 mm	2.756 in	3		600 V	-25 °C	110 °C	40.5 mm	1.594 in	400 Hz 500 µH	850 V	36 A	Power Line

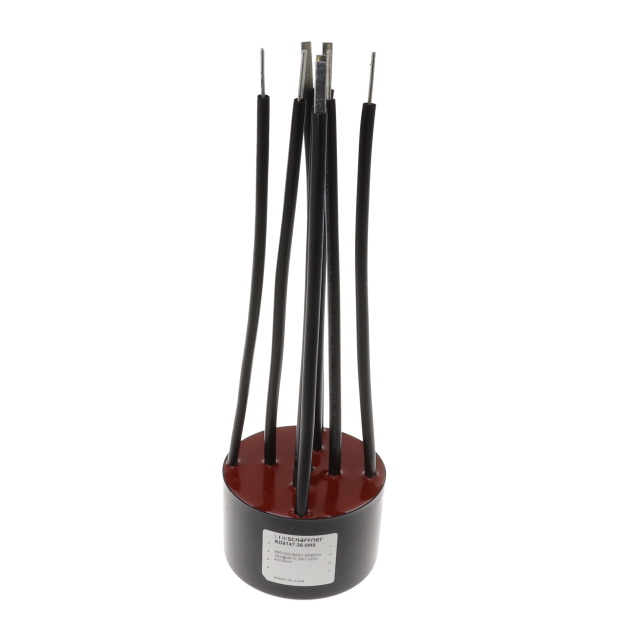

TE Connectivity AMP Connectors RD8147-36-0M8	3 mOhm	Through Hole	80 mm	3.15 "	80 mm	3.15 in	4	8 PC Pin Horizontal	600 V	-25 °C	110 °C	50.5 mm	1.988 in	800 µH	850 V	36 A	Power Line
TE Connectivity AMP Connectors RD7137-10-6M6	21.9 mOhm	Through Hole	70 mm	2.756 "	70 mm	2.756 in	3		600 V	-25 °C	110 °C	40.5 mm	1.594 in	6.6 mH	850 V	10 A	Power Line
TE Connectivity AMP Connectors RD5122-16-2M0	9.5 mOhm	Through Hole	50 mm	1.969 "	50 mm	1.969 in	2	4 PC Pin Horizontal	600 V	-25 °C	110 °C	35.5 mm	1.398 in	2 mH 400 Hz	850 V	16 A	Power Line

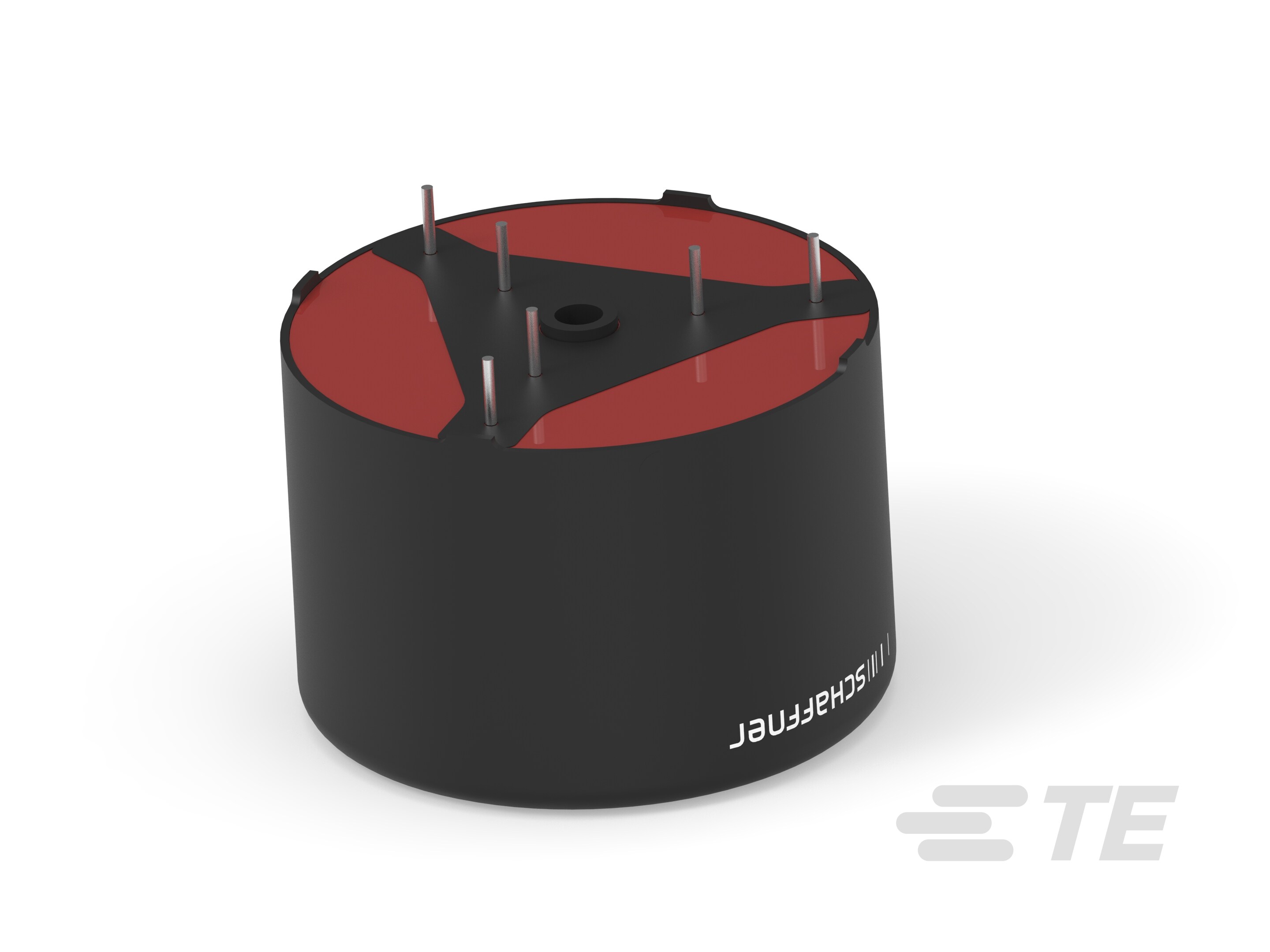

TE Connectivity AMP Connectors RD5132-6-5M0	38 mOhm	Through Hole	50 mm	1.969 "	50 mm	1.969 in	3		600 V	-25 °C	110 °C	35.5 mm	1.398 in	5 mH 400 Hz	850 V	6 A	Power Line

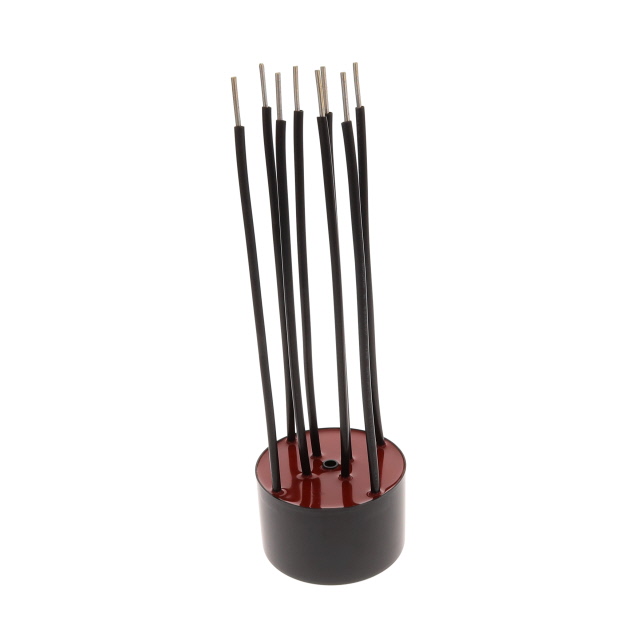

TE Connectivity AMP Connectors RD8147-25-1M3	5.05 mOhm	Through Hole	80 mm	3.15 "	80 mm	3.15 in	4	8 PC Pin Horizontal	600 V	-25 °C	110 °C	50.5 mm	1.988 in	1.3 mH	850 V	25 A	Power Line
TE Connectivity AMP Connectors RD8137-25-2M5		Through Hole	80 mm	3.15 "	80 mm	3.15 in	3		600 V	-25 °C	110 °C	50.5 mm	1.988 in	2.5 mH	850 V	25 A	Power Line	6.4 mOhm
TE Connectivity AMP Connectors RD5122-10-6M0	24.25 mOhm	Through Hole	50 mm	1.969 "	50 mm	1.969 in	2	4 PC Pin Horizontal	600 V	-25 °C	110 °C	35.5 mm	1.398 in	6 mH 400 Hz	850 V	10 A	Power Line
