260-N Series

Catalog

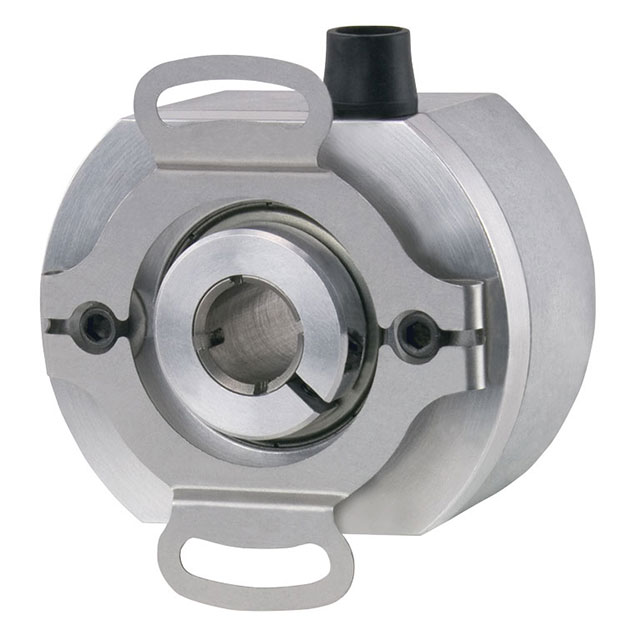

2.0" DIA INCREMENTAL ENCODER 3/8

Part	Pulses per Revolution	Mounting Type	Orientation	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Encoder Type	Actuator Type
Encoder Products Company 260-N-T-02-H-1000-R-OC-1-S-SF-2-N	1000	Chassis Mount Motors	User Selectable	Open Collector	28 V	4.75 V	Cable	Incremental
Encoder Products Company 260-N-T-10-H-2048-R-OC-1-S-SF-2-N	2048	Chassis Mount Motors	User Selectable	Open Collector	28 V	4.75 V	Cable	Incremental	1/2" Open Center
Encoder Products Company 260-N-T-02-H-2500-R-OC-1-S-SF-2-N	2500	Chassis Mount Motors	User Selectable	Open Collector	28 V	4.75 V	Cable	Incremental
Encoder Products Company 260-N-T-10-H-2048-R-HV-1-S-SF-2-N	2048	Chassis Mount Motors	User Selectable	Quadrature Line Driver with Index (Incremental)	28 V	4.75 V	Cable	Incremental	1/2" Open Center
Encoder Products Company 260-N-T-02-H-1024-R-HV-1-S-SF-2-N	1024	Chassis Mount Motors	User Selectable	Quadrature Line Driver with Index (Incremental)	28 V	4.75 V	Cable	Incremental
Encoder Products Company 260-N-T-10-H-0600-R-HV-1-S-SF-2-N	600	Chassis Mount Motors	User Selectable	Quadrature Line Driver with Index (Incremental)	28 V	4.75 V	Cable	Incremental	1/2" Open Center
Encoder Products Company 260-N-T-02-H-4096-R-HV-1-S-SF-2-N	4096	Chassis Mount Motors	User Selectable	Quadrature Line Driver with Index (Incremental)	28 V	4.75 V	Cable	Incremental
Encoder Products Company 260-N-T-02-H-2048-R-HV-1-S-SF-2-N	2048	Chassis Mount Motors	User Selectable	Quadrature Line Driver with Index (Incremental)	28 V	4.75 V	Cable	Incremental
Encoder Products Company 260-N-T-02-H-4096-R-OC-1-S-SF-2-N	4096	Chassis Mount Motors	User Selectable	Open Collector	28 V	4.75 V	Cable	Incremental
Encoder Products Company 260-N-T-10-H-4096-R-OC-1-S-SF-2-N	4096	Chassis Mount Motors	User Selectable	Open Collector	28 V	4.75 V	Cable	Incremental	1/2" Open Center
