D37S33 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

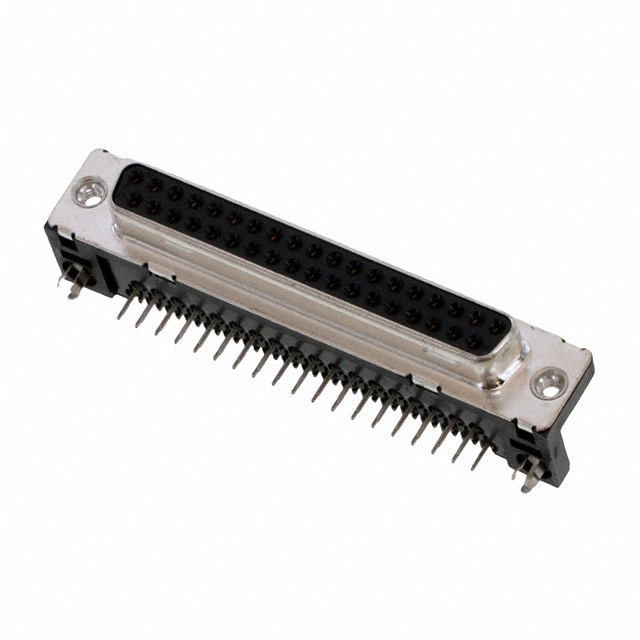

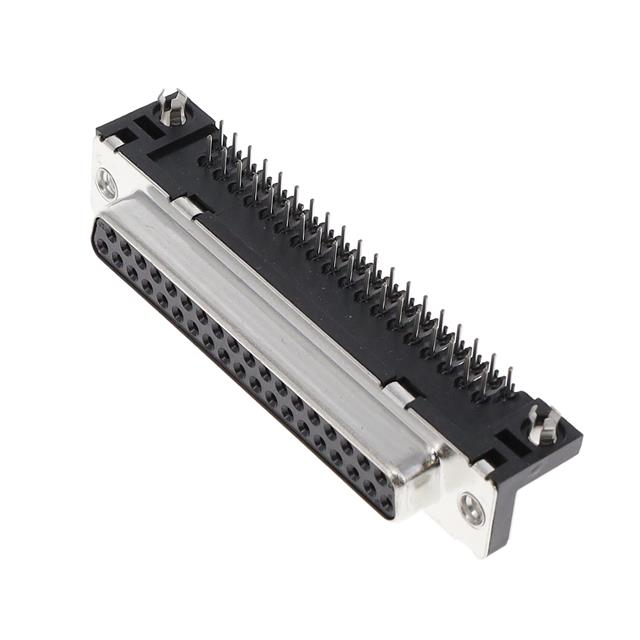

DSUB R/A STB 37POS SOCKET
| Part | Mounting Type | Material Flammability Rating | Current Rating (Amps) | Number of Positions | Features | Connector Type | Backset Spacing | Backset Spacing | Color | Termination | Number of Rows | Contact Type | Dielectric Material | Contact Finish Thickness | Contact Material | Shell Size, Connector Layout | Voltage Rating | Flange Feature | Contact Finish | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Through Hole Right Angle | UL94 V-0 | 5 A | 37 | Board Lock Mounting Brackets | Receptacle Female Sockets | 8.08 mm | 0.318 " | Black | Solder | 2 | Signal | Thermoplastic | Flash | Phosphor Bronze | 4 (DC C) | 300 VDC | Housing/Shell (M3) | Gold | D-Sub | -55 °C | 125 °C | ||||
Amphenol ICC (FCI) | Through Hole Right Angle | UL94 V-0 | 5 A | 37 | Receptacle Female Sockets | 8.08 mm | 0.318 " | Black | Solder | 2 | Signal | Thermoplastic | Phosphor Bronze | 4 (DC C) | 300 VDC | Housing/Shell (Unthreaded) | Gold | D-Sub | -55 °C | 125 °C | 0.76 Ám | 30 Áin | Steel Tin-Nickel Plated | |||
Amphenol ICC (FCI) | Through Hole Right Angle | UL94 V-0 | 5 A | 37 | Receptacle Female Sockets | 8.08 mm | 0.318 " | Black | Solder | 2 | Signal | Thermoplastic | Phosphor Bronze | 4 (DC C) | 300 VDC | Housing/Shell (Unthreaded) | Gold | D-Sub | -55 °C | 125 °C | 0.76 Ám | 30 Áin | ||||
Amphenol ICC (FCI) | Through Hole Right Angle | UL94 V-0 | 5 A | 37 | Board Lock Mounting Brackets | Receptacle Female Sockets | 8.08 mm | 0.318 " | Black | Solder | 2 | Signal | Thermoplastic | Phosphor Bronze | 4 (DC C) | 300 VDC | Housing/Shell (M3) | Gold | D-Sub | -55 °C | 125 °C | 0.76 Ám | 30 Áin | Steel Tin-Nickel Plated | ||
Amphenol ICC (FCI) | Through Hole Right Angle | UL94 V-0 | 5 A | 37 | Board Guide Mounting Brackets | Receptacle Female Sockets | 8.08 mm | 0.318 " | Black | Solder Paste | 2 | Signal | Glass Filled Nylon Polyamide (PA) | Phosphor Bronze | 4 (DC C) | 300 VDC | Housing/Shell (M3) | Gold | D-Sub | 0.76 Ám | 30 Áin | Nickel Plated Steel | -55 °C | |||
Amphenol ICC (FCI) | Through Hole Right Angle | UL94 V-0 | 5 A | 37 | Board Guide Mounting Brackets | Receptacle Female Sockets | 8.08 mm | 0.318 " | Black | Solder Paste | 2 | Signal | Glass Filled Nylon Polyamide (PA) | Phosphor Bronze | 4 (DC C) | 300 VDC | Female Screwlock (4-40) Mating Side | Gold | D-Sub | 0.76 Ám | 30 Áin | Nickel Plated Steel | -55 °C | |||
Amphenol ICC (FCI) | Through Hole Right Angle | UL94 V-0 | 5 A | 37 | Receptacle Female Sockets | 8.08 mm | 0.318 " | Black | Solder | 2 | Signal | Thermoplastic | Flash | Phosphor Bronze | 4 (DC C) | 300 VDC | Housing/Shell (Unthreaded) | Gold | D-Sub | -55 °C | 125 °C | |||||
 Amphenol ICC (FCI) | Through Hole Right Angle | UL94 V-0 | 5 A | 37 | Board Lock Mounting Brackets | Receptacle Female Sockets | 8.08 mm | 0.318 " | Black | Solder | 2 | Signal | Polybutylene Terephthalate (PBT) | Phosphor Bronze | 4 (DC C) | 300 VDC | Housing/Shell (4-40) | Gold | D-Sub | -55 °C | 125 °C | 0.76 Ám | 30 Áin | Steel Tin-Nickel Plated | ||
Amphenol ICC (FCI) | Through Hole Right Angle | UL94 V-0 | 5 A | 37 | Board Lock Mounting Brackets | Receptacle Female Sockets | 8.08 mm | 0.318 " | Black | Solder | 2 | Signal | Polybutylene Terephthalate (PBT) | Flash | Phosphor Bronze | 4 (DC C) | 300 VDC | Female Screwlock (4-40) Mating Side | Gold | D-Sub | -55 °C | 125 °C | ||||
 Amphenol ICC (FCI) | Through Hole Right Angle | UL94 V-0 | 5 A | 37 | Board Lock Mounting Brackets | Receptacle Female Sockets | 8.08 mm | 0.318 " | Black | Solder | 2 | Signal | Polybutylene Terephthalate (PBT) | Flash | Phosphor Bronze | 4 (DC C) | 300 VDC | Housing/Shell (4-40) | Gold | D-Sub | -55 °C | 125 °C | Steel Tin-Nickel Plated |
