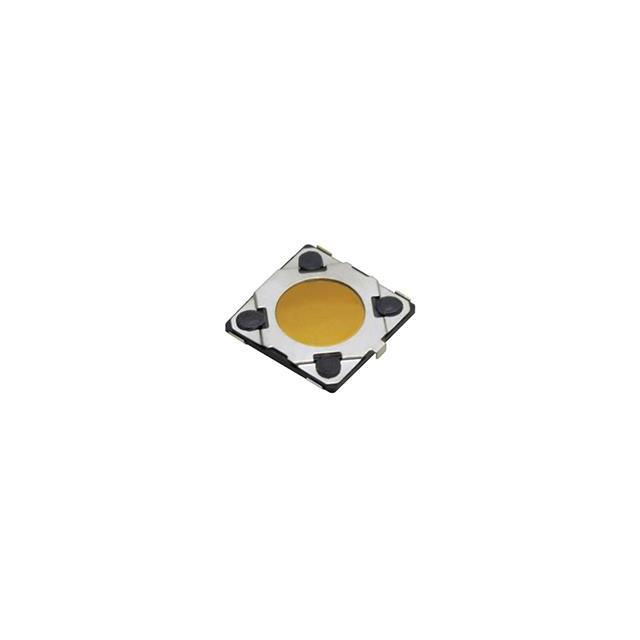

EVQ-7P Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
SWITCH TACTILE SPST-NO 0.02A 15V
| Part | Illumination | Mounting Type | Actuator Orientation | Switch Travel | Circuit | Actuator Height off PCB, Vertical [z] | Operating Force | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Contact Rating @ Voltage [x] | Switch Function | Outline [x] | Outline [y] | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Non-Illuminated | Surface Mount | Top Actuated | 0.15 mm | SPST-NO | 0.43 mm | 102 gf | Flush | -20 C | 70 °C | J Lead | 0.02 A 15 VDC | Off-Mom | 4.1 mm | 4.1 mm | 1000000 Cycles |
