HPFC Series

DC Power Connectors .100" Signal/Power Combo Socket Strip

Manufacturer: Samtec Inc.

Catalog

DC Power Connectors .100" Signal/Power Combo Socket Strip

Catalog

DC Power Connectors .100" Signal/Power Combo Socket Strip

Part	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type	Connector Type	Insulation Height	Insulation Height	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Type	Insulation Material	Insulation Color	Termination	Fastening Type	Number of Rows	Contact Shape	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Contact Finish - Mating	Number of Positions [x]	Number of Positions [custom]	Number of Positions [custom]

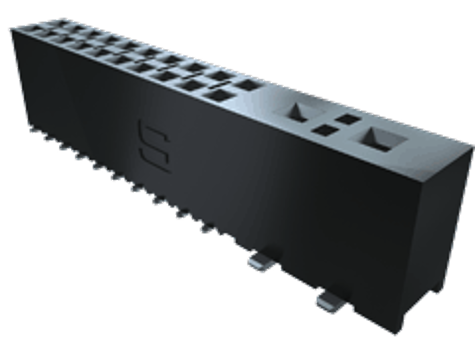

Samtec Inc. HPFC-105-01-TM-D-04	2.26 mm	0.089 in	Through Hole	Receptacle	9 mm	0.354 in	14	0.1 in	2.54 mm	Female Socket	Liquid Crystal Polymer (LCP)	Black	Solder	Push-Pull	2	Square	Beryllium Copper	105 ░C	-55 °C	Tin	All
Samtec Inc. HPFC-102-02-L-D-02			Surface Mount	Receptacle	9 mm	0.354 in		0.1 in	2.54 mm	Female Socket	Liquid Crystal Polymer (LCP)	Black	Solder	Push-Pull	2	Square	Beryllium Copper	125 °C	-55 °C	Tin	All	10 çin	0.25 çm	4	6	2	Gold
Samtec Inc. HPFC-105-02-L-D-02-LC			Surface Mount	Receptacle	9 mm	0.354 in	12	0.1 in	2.54 mm	Female Socket	Liquid Crystal Polymer (LCP)	Black	Solder	Push-Pull	2	Square	Beryllium Copper	125 °C	-55 °C	Tin	All	10 çin	0.25 çm				Gold
Samtec Inc. HPFC-106-01-L-D-04	2.26 mm	0.089 in	Through Hole	Receptacle	9 mm	0.354 in		0.1 in	2.54 mm	Female Socket	Liquid Crystal Polymer (LCP)	Black	Solder	Push-Pull	2	Square	Beryllium Copper	125 °C	-55 °C	Tin	All	10 çin	0.25 çm			4	Gold	12
Samtec Inc. HPFC-104-01-T-D-04	2.26 mm	0.089 in	Through Hole	Receptacle	9 mm	0.354 in		0.1 in	2.54 mm	Female Socket	Liquid Crystal Polymer (LCP)	Black	Solder	Push-Pull	2	Square	Beryllium Copper	105 ░C	-55 °C	Tin	All					4			12	8

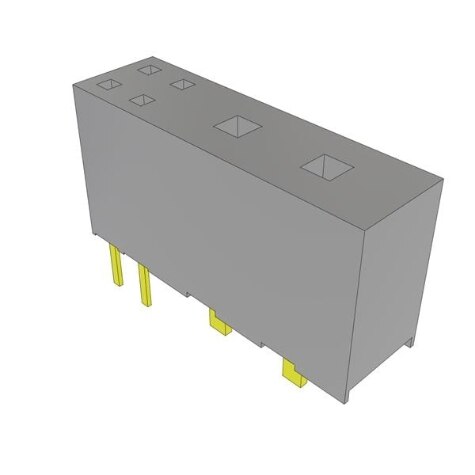

Samtec Inc. HPFC-108-01-T-D-04	2.26 mm	0.089 in	Through Hole	Receptacle	9 mm	0.354 in		0.1 in	2.54 mm	Female Socket	Liquid Crystal Polymer (LCP)	Black	Solder	Push-Pull	2	Square	Beryllium Copper	105 ░C	-55 °C	Tin	All			16		4
Samtec Inc. HPFC-108-02-T-D-04-LC			Surface Mount	Receptacle	9 mm	0.354 in		0.1 in	2.54 mm	Female Socket	Liquid Crystal Polymer (LCP)	Black	Solder	Push-Pull	2	Square	Beryllium Copper	105 ░C	-55 °C	Tin	All			16		4
