73092 Series

Catalog

CONN BANANA PLUG STACK SLDRLESS

Part	Contact Material	Contact Finish	Body Material	Insulation	Type	Mounting Type	Termination	Gender	Features	Plug/Mating Plug Diameter	Color	Wire Gauge [Max]	Wire Gauge [Min]

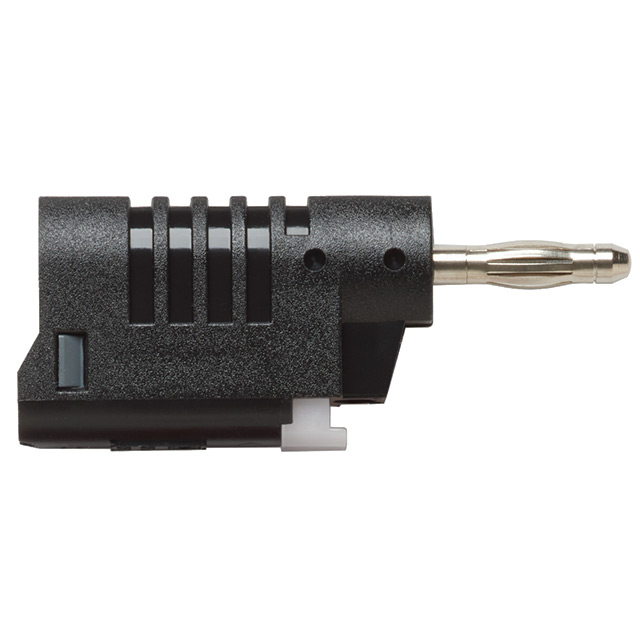

Pomona Electronics 73092-0	Brass Steel	Nickel	Nylon Polyamide (PA) Polyoxmethylene (POM)	Non-Mating End Insulated	Banana Plug Stackable	Free Hanging (In-Line)	Solderless	Male	Push Button Tab	Standard Banana	Black	22 AWG	17.5 AWG
Pomona Electronics 73092-2	Brass Steel	Nickel	Nylon Polyamide (PA) Polyoxmethylene (POM)	Non-Mating End Insulated	Banana Plug Stackable	Free Hanging (In-Line)	Solderless	Male	Push Button Tab	Standard Banana	Red	22 AWG	17.5 AWG

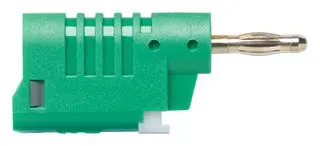

Pomona Electronics 73092-5	Brass Steel	Nickel	Nylon Polyamide (PA) Polyoxmethylene (POM)	Non-Mating End Insulated	Banana Plug Stackable	Free Hanging (In-Line)	Solderless	Male	Push Button Tab	Standard Banana	Green	22 AWG	17.5 AWG

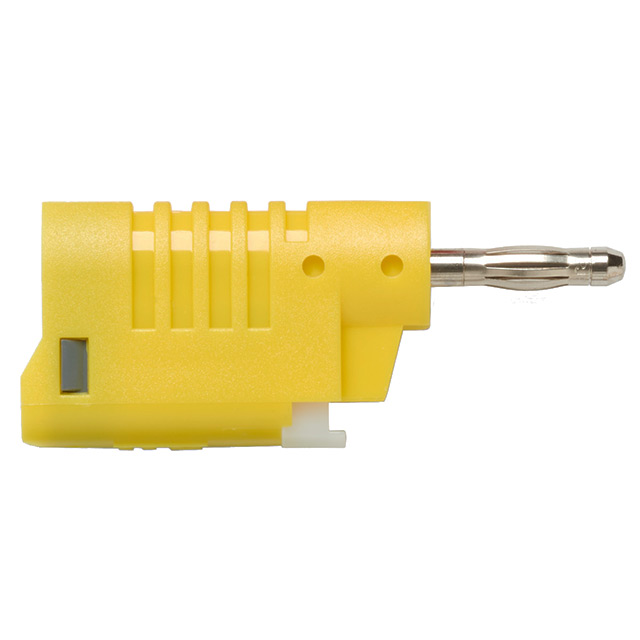

Pomona Electronics 73092-4	Brass Steel	Nickel	Nylon Polyamide (PA) Polyoxmethylene (POM)	Non-Mating End Insulated	Banana Plug Stackable	Free Hanging (In-Line)	Solderless	Male	Push Button Tab	Standard Banana	Yellow	22 AWG	17.5 AWG

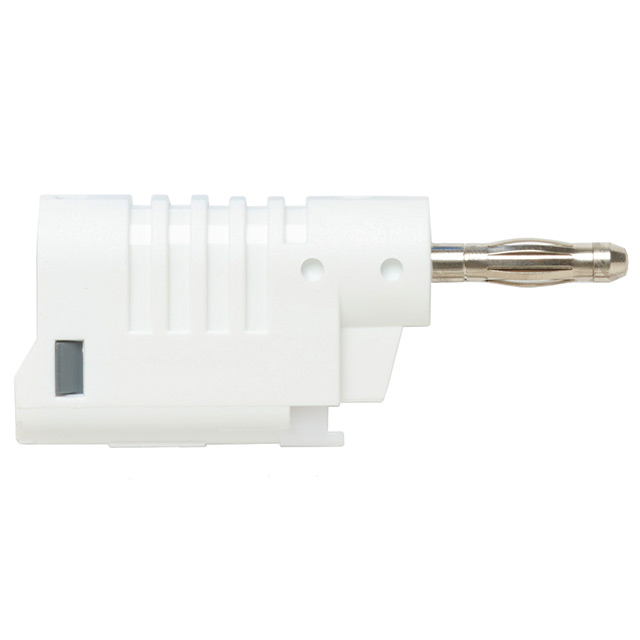

Pomona Electronics 73092-9	Brass Steel	Nickel	Nylon Polyamide (PA) Polyoxmethylene (POM)	Non-Mating End Insulated	Banana Plug Stackable	Free Hanging (In-Line)	Solderless	Male	Push Button Tab	Standard Banana	White	22 AWG	17.5 AWG

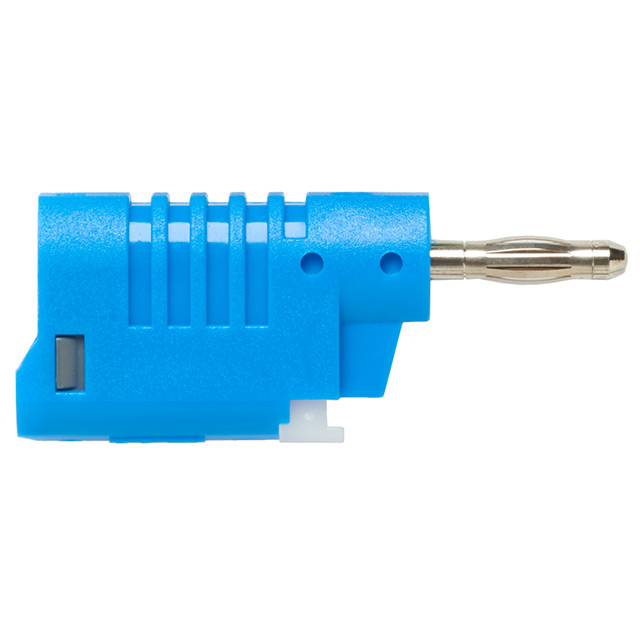

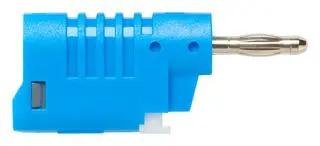

Pomona Electronics 73092-6	Brass Steel	Nickel	Nylon Polyamide (PA) Polyoxmethylene (POM)	Non-Mating End Insulated	Banana Plug Stackable	Free Hanging (In-Line)	Solderless	Male	Push Button Tab	Standard Banana	Blue	22 AWG	17.5 AWG
