717-052 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 52POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Color	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Termination	Number of Positions	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Gender	Read Out	Pitch	Pitch	Contact Material	Card Type	Number of Positions/Bay/Row
EDAC Inc. 717-052-525-201	2	Polyester Thermoplastic	Black	Gold	-40 C	105 ░C	2	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	52	Through Hole	30 Áin	0.76 Ám	Female	Dual	3.96 mm	0.156 in	Copper Alloy	Non Specified - Dual Edge	26

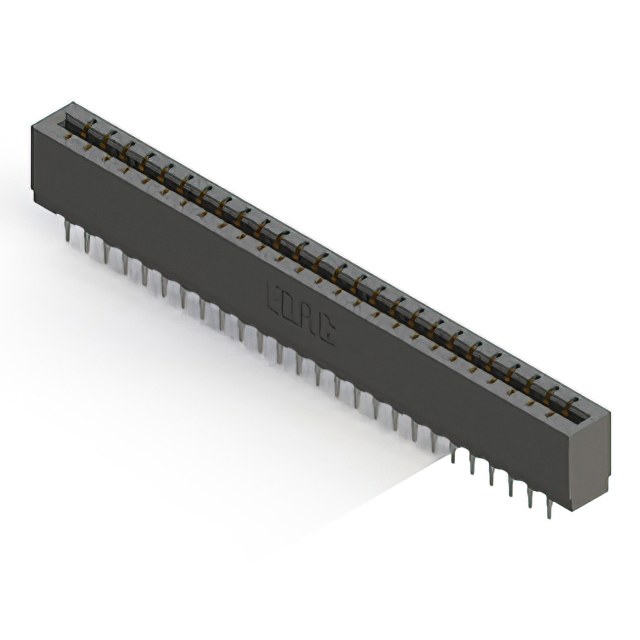

EDAC Inc. 717-052-560-201	2	Polyester Thermoplastic	Black	Gold	-40 C	105 ░C	2	Cantilever Make Before Break	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	52	Through Hole	30 Áin	0.76 Ám	Female	Dual	3.96 mm	0.156 in	Copper Alloy	Non Specified - Dual Edge	26
EDAC Inc. 717-052-545-201	2	Polyester Thermoplastic	Black	Gold	-40 C	105 ░C	2	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	52	Through Hole	30 Áin	0.76 Ám	Female	Dual	3.96 mm	0.156 in	Copper Alloy	Non Specified - Dual Edge	26
EDAC Inc. 717-052-520-201	2	Polyester Thermoplastic	Black	Gold	-40 C	105 ░C	2	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	52	Through Hole	30 Áin	0.76 Ám	Female	Dual	3.96 mm	0.156 in	Copper Alloy	Non Specified - Dual Edge	26
EDAC Inc. 717-052-540-201	2	Polyester Thermoplastic	Black	Gold	-40 C	105 ░C	2	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	52	Through Hole	30 Áin	0.76 Ám	Female	Dual	3.96 mm	0.156 in	Copper Alloy	Non Specified - Dual Edge	26
EDAC Inc. 717-052-541-201	2	Polyester Thermoplastic	Black	Gold	-40 C	105 ░C	2	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	52	Through Hole	30 Áin	0.76 Ám	Female	Dual	3.96 mm	0.156 in	Copper Alloy	Non Specified - Dual Edge	26
EDAC Inc. 717-052-522-201	2	Polyester Thermoplastic	Black	Gold	-40 C	105 ░C	2	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	52	Through Hole	30 Áin	0.76 Ám	Female	Dual	3.96 mm	0.156 in	Copper Alloy	Non Specified - Dual Edge	26
