R22342 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
MMBX F F SMT EDGE C100
| Part | Body Material | Body Finish | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Voltage Rating | Mounting Type | Fastening Type | Number of Ports | Frequency - Max [Max] | Connector Type | Center Contact Material | Impedance | Contact Termination | Housing Color | Shield Termination | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

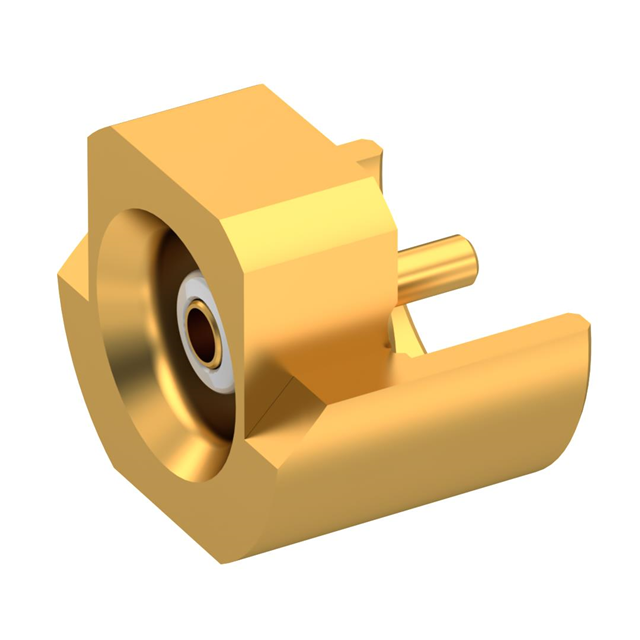

 Radiall USA, Inc. | Brass | Gold | Gold | 155 C | -55 C | Liquid Crystal Polymer (LCP) | 330 VDC | Board Edge Cutout Surface Mount | Snap-On | 1 | 12.4 GHz | Female Socket Jack | Brass | 50 Ohms | Solder | Gold | Solder | MMBX |
 Radiall USA, Inc. | Brass | Gold | Gold | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | Through Hole | Snap-On | 1 | 12.4 GHz | Receptacle Female Socket | Beryllium Copper | 50 Ohms | Solder | Gold | Solder | MMBX | |

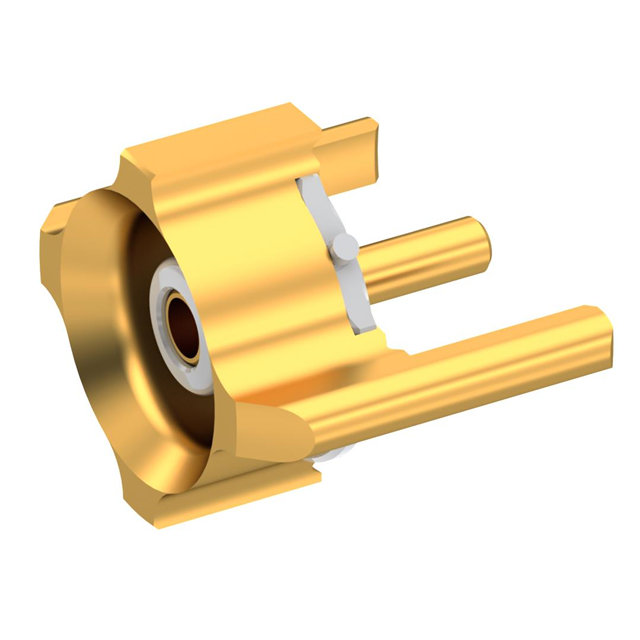

 Radiall USA, Inc. | Brass | Gold | Gold | 155 C | -55 C | Liquid Crystal Polymer Polytetrafluoroethylene | 330 VDC | Through Hole | Snap-On | 1 | 12.4 GHz | Female Socket Jack | Brass | 50 Ohms | Solder | Gold | Solder | MMBX |

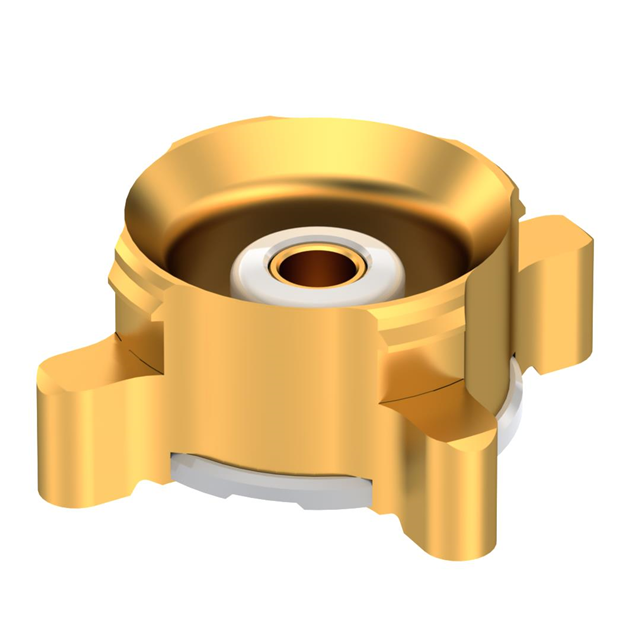

 Radiall USA, Inc. | Brass | Gold | Gold | 155 C | -55 C | Liquid Crystal Polymer (LCP) | 330 VDC | Surface Mount | Snap-On | 1 | 12.4 GHz | Female Socket Jack | Brass | 50 Ohms | Solder | Gold | Solder | MMBX |

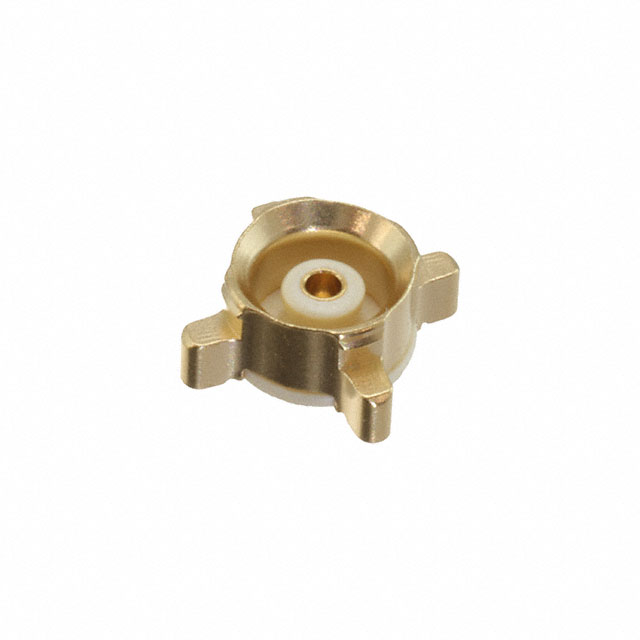

 Radiall USA, Inc. | Brass | Gold | Gold | 155 C | -55 C | Liquid Crystal Polymer (LCP) | 330 VDC | Surface Mount | Snap-On | 1 | 12.4 GHz | Female Socket Jack | Brass | 50 Ohms | Solder | Gold | Solder | MMBX |
 Radiall USA, Inc. | Brass | Gold | Gold | 155 C | -55 C | Liquid Crystal Polymer (LCP) | 330 VDC | Surface Mount | Snap-On | 1 | 12.4 GHz | Female Socket Jack | Brass | 50 Ohms | Solder | Gold | Solder | MMBX |

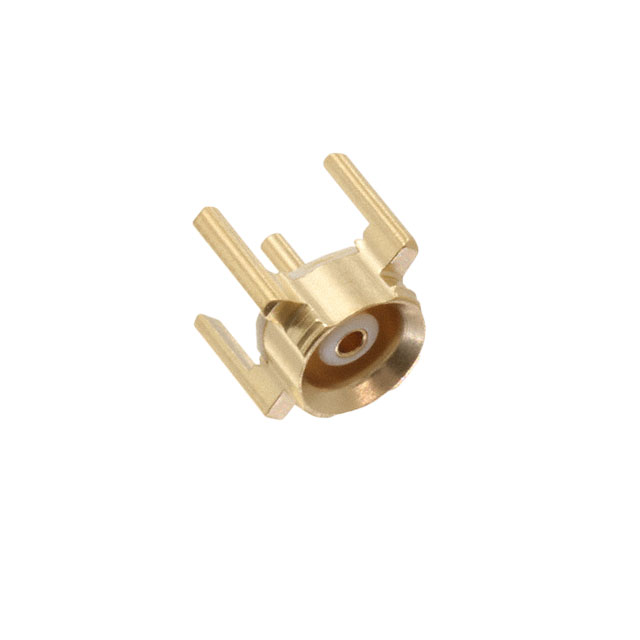

 Radiall USA, Inc. | Brass | Gold | Gold | 155 C | -55 C | Liquid Crystal Polymer (LCP) | 335 V | Through Hole | Snap-On | 1 | 12.4 GHz | Female Socket Jack | Brass | 50 Ohms | Solder | Gold | Solder | MMBX |
