AX01F120 Series

Catalog

CONN FLOATING SIDE STR 120 POS

Part	Features	Height Above Board [z]	Height Above Board [z]	Number of Positions	Contact Finish	Mounting Type	Mated Stacking Heights	Number of Rows [custom]	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch

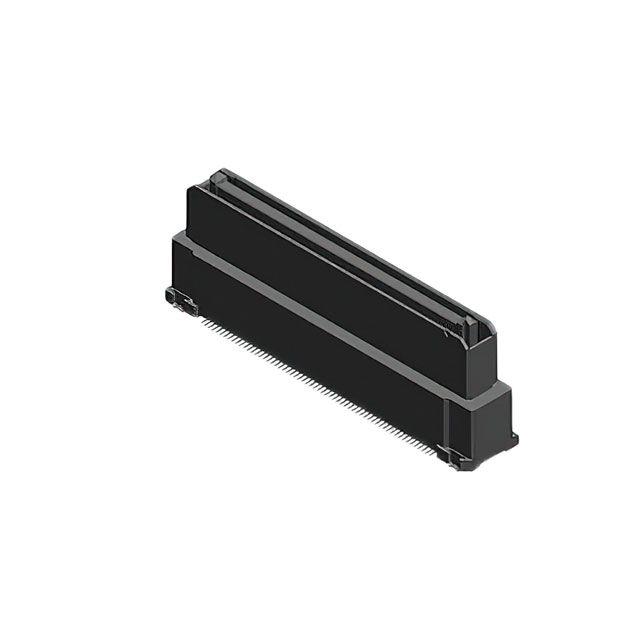

JAE Electronics AX01F120VACBR150	Board Guide Solder Retention	0.72 in	18.3 mm	120	Gold	Surface Mount	20 mm 22 mm 30 mm	2	Receptacle Center Strip Contacts	0.1 Ám	4 Áin	0.64 mm	0.025 in

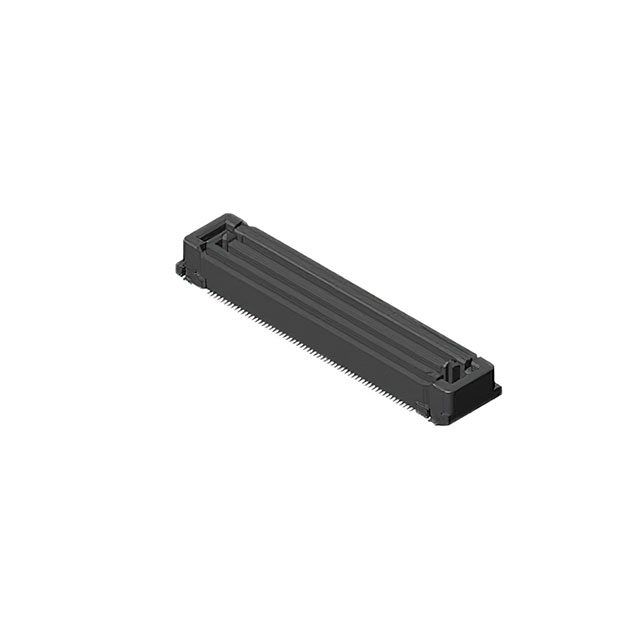

JAE Electronics AX01F120VAABR500	Board Guide Solder Retention	0.248 in	6.3 mm	120	Gold	Surface Mount	8 mm 10 mm 18 mm	2	Receptacle Center Strip Contacts	0.1 Ám	4 Áin	0.64 mm	0.025 in
