9401-1083 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

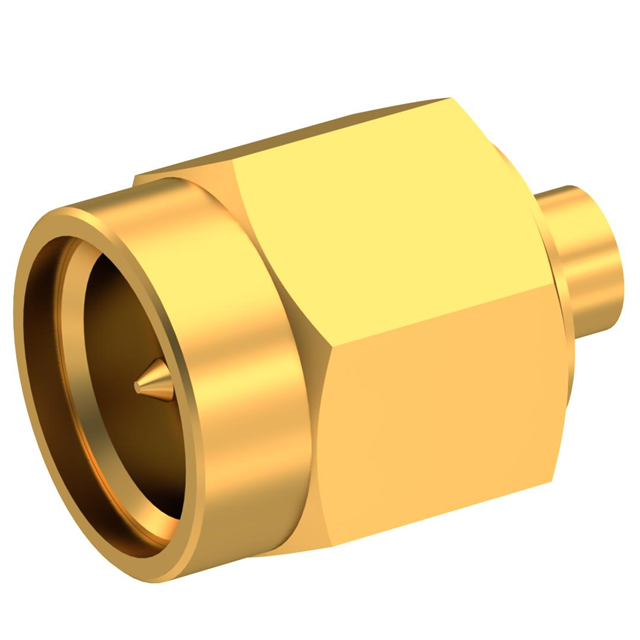

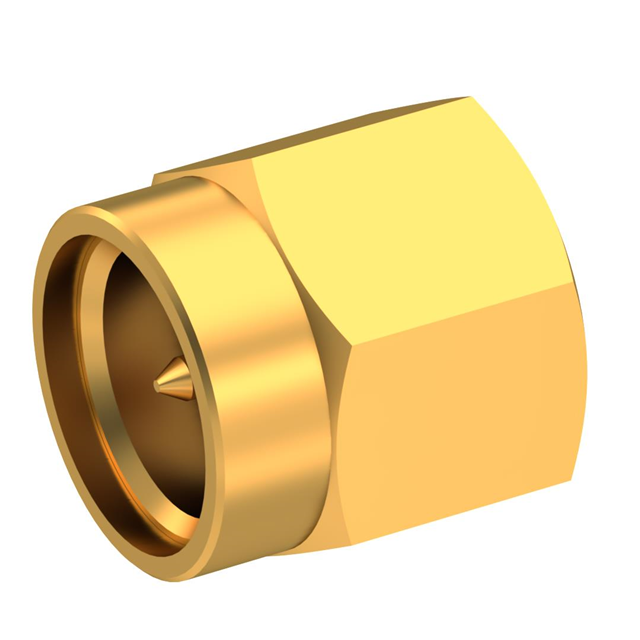

SMA M STR NA SD .085
| Part | Body Material | Center Contact Plating | Body Finish | Mating Cycles | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Mounting Type | Housing Color | Connector Type | Center Contact Material | Impedance | Number of Ports | Frequency - Max [Max] | Cable Group | Shield Termination | Contact Termination | Fastening Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Stainless Steel | Gold | Gold | 500 | 350 VDC | 105 ░C | -65 ░C | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | Gold | Plug Male Pin | Beryllium Copper | 50 Ohms | 1 | 18 GHz | RG-405 (.085" Semi Rigid) | Solder | Solder | Threaded | SMA |
 Radiall USA, Inc. | Stainless Steel | Gold | Gold | 500 | 500 V | 105 ░C | -65 ░C | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | Gold | Plug Male Pin | Beryllium Copper | 50 Ohms | 1 | 18 GHz | Solder | Solder | Threaded | SMA | |
 Radiall USA, Inc. | Stainless Steel | Gold | Gold | 500 | 350 VDC | 105 ░C | -65 ░C | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | Gold | Plug Male Pin | Beryllium Copper | 50 Ohms | 1 | 18 GHz | RG-405 (.085" Semi Rigid) | Solder | Solder | Threaded | SMA |
