ATE2F Series

Catalog

SWITCH TOGGLE DPDT 50MA 48V

Part	Electrical Life	Features	Illumination	Voltage Rating - AC	Switch Function	Actuator Length [x]	Current Rating (Amps)	Voltage Rating - DC	Bushing Thread	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Actuator Type	Mounting Type

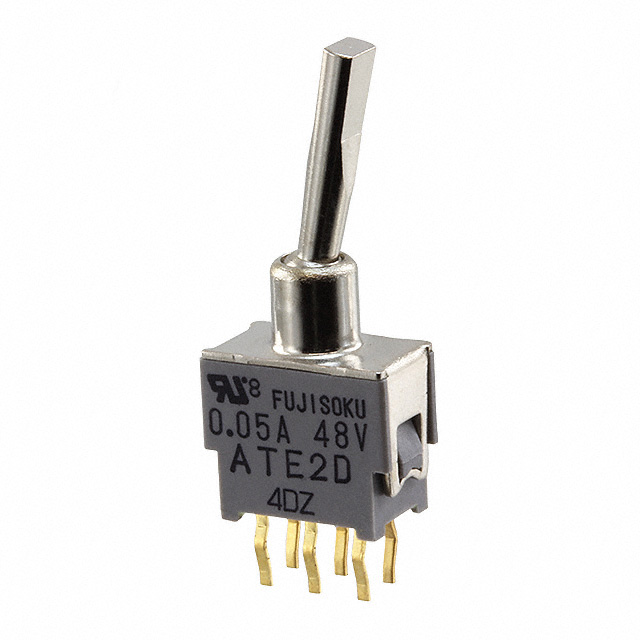

Nidec Components Corporation ATE2F-2F3-10-Z	30000 Cycles	Washable	Non-Illuminated	48 V	On-Mom	10 mm	50 mA	48 V	Unthreaded	DPDT	85 °C	-20 ░C	PC Pin	Flatted	Through Hole
Nidec Components Corporation ATE2F-5M3-10-Z	30000 Cycles	Washable	Non-Illuminated	48 V	On-Mom	6 mm	50 mA	48 V	Unthreaded	DPDT	85 °C	-20 ░C	PC Pin	Standard Round	Right Angle Through Hole

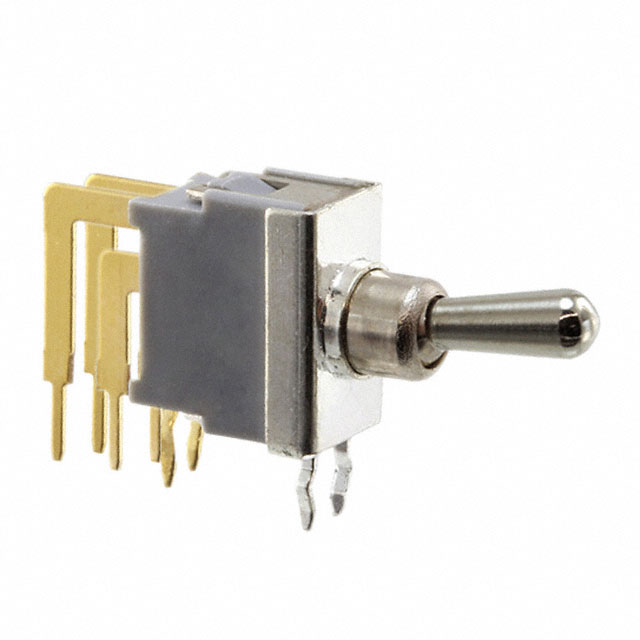

Nidec Components Corporation ATE2F-7M3-10-Z	30000 Cycles	Washable	Non-Illuminated	48 V	On-Mom	6 mm	50 mA	48 V	Unthreaded	DPDT	85 °C	-20 ░C	PC Pin	Standard Round	Right Angle Through Hole Vertical
