399-11 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 35POS 0.1 GOLD PCB R/A

Part	Contact Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Finish - Post	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Termination	Connector Type	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Type	Current Rating (Amps)	Mounting Type	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Rows	Insulation Color
Mill-Max Manufacturing Corp. 399-11-135-10-003000	Beryllium Copper	Circular	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	UL94 V-0	0.126 "	3.2 mm	Push-Pull	-55 C	125 °C	All	Solder	Receptacle	0.1 "	2.54 mm	35	Female Socket	3 A	Right Angle Through Hole	0.1 in	2.54 mm	0.25 µm	10 µin	Gold	1	Black
Mill-Max Manufacturing Corp. 399-11-143-10-003000	Beryllium Copper	Circular	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	UL94 V-0	0.126 "	3.2 mm	Push-Pull	-55 C	125 °C	All	Solder	Receptacle	0.1 "	2.54 mm	43	Female Socket	3 A	Right Angle Through Hole	0.1 in	2.54 mm	0.25 µm	10 µin	Gold	1	Black
Mill-Max Manufacturing Corp. 399-11-103-10-003000	Beryllium Copper	Circular	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	UL94 V-0	0.126 "	3.2 mm	Push-Pull	-55 C	125 °C	All	Solder	Receptacle	0.1 "	2.54 mm		Female Socket	3 A	Right Angle Through Hole	0.1 in	2.54 mm	0.25 µm	10 µin	Gold	1	Black
Mill-Max Manufacturing Corp. 399-11-125-10-003000	Beryllium Copper	Circular	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	UL94 V-0	0.126 "	3.2 mm	Push-Pull	-55 C	125 °C	All	Solder	Receptacle	0.1 "	2.54 mm	25	Female Socket	3 A	Right Angle Through Hole	0.1 in	2.54 mm	0.25 µm	10 µin	Gold	1	Black
Mill-Max Manufacturing Corp. 399-11-144-10-003000	Beryllium Copper	Circular	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	UL94 V-0	0.126 "	3.2 mm	Push-Pull	-55 C	125 °C	All	Solder	Receptacle	0.1 "	2.54 mm	44	Female Socket	3 A	Right Angle Through Hole	0.1 in	2.54 mm	0.25 µm	10 µin	Gold	1	Black

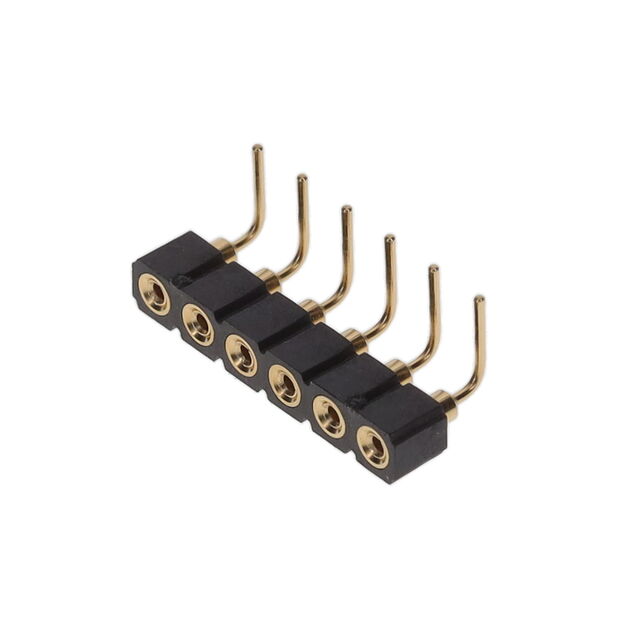

Mill-Max Manufacturing Corp. 399-11-106-10-003000	Beryllium Copper	Circular	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	UL94 V-0	0.126 "	3.2 mm	Push-Pull	-55 C	125 °C	All	Solder	Receptacle	0.1 "	2.54 mm	6	Female Socket	3 A	Right Angle Through Hole	0.1 in	2.54 mm	0.25 µm	10 µin	Gold	1	Black
Mill-Max Manufacturing Corp. 399-11-124-10-003000	Beryllium Copper	Circular	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	UL94 V-0	0.126 "	3.2 mm	Push-Pull	-55 C	125 °C	All	Solder	Receptacle	0.1 "	2.54 mm	24	Female Socket	3 A	Right Angle Through Hole	0.1 in	2.54 mm	0.25 µm	10 µin	Gold	1	Black
Mill-Max Manufacturing Corp. 399-11-101-10-003000	Beryllium Copper	Circular	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	UL94 V-0	0.126 "	3.2 mm	Push-Pull	-55 C	125 °C	All	Solder	Receptacle			1	Female Socket	3 A	Right Angle Through Hole	0.1 in	2.54 mm	0.25 µm	10 µin	Gold	1	Black
Mill-Max Manufacturing Corp. 399-11-159-10-003000	Beryllium Copper	Circular	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	UL94 V-0	0.126 "	3.2 mm	Push-Pull	-55 C	125 °C	All	Solder	Receptacle	0.1 "	2.54 mm	59	Female Socket	3 A	Right Angle Through Hole	0.1 in	2.54 mm	0.25 µm	10 µin	Gold	1	Black
Mill-Max Manufacturing Corp. 399-11-132-10-003000	Beryllium Copper	Circular	10 Áin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	UL94 V-0	0.126 "	3.2 mm	Push-Pull	-55 C	125 °C	All	Solder	Receptacle	0.1 "	2.54 mm		Female Socket	3 A	Right Angle Through Hole	0.1 in	2.54 mm	0.25 µm	10 µin	Gold	1	Black
