628-21W Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN D-SUB RCPT 21POS VERT SLDR
| Part | Color | Contact Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Connector Type | Shell Size, Connector Layout | Number of Rows [custom] | Termination | Number of Positions [x] | Number of Positions [custom] | Mounting Type | Flange Feature | Contact Finish | Contact Type | Material Flammability Rating | Connector Style | Features | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Shell Material, Finish | Current Rating (Amps) | Contact Finish Thickness | Current Rating (Amps) | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

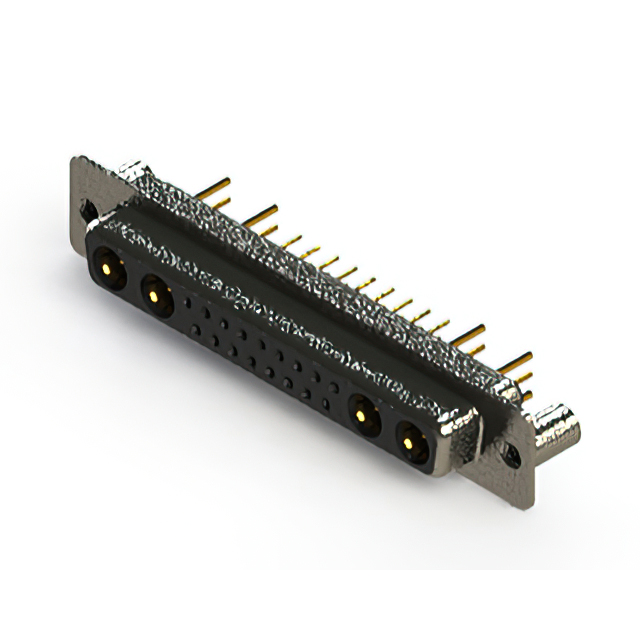

 EDAC Inc. | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Receptacle Female Sockets | 4 (DC C) - 21WA4 | 2 | Solder | 17 | 4 | Through Hole | Board Side (4-40) | Gold | Coax Signal | UL94 V-0 | Combo D-Sub | Shielded | 30 Áin | 0.76 Ám | ||||||
 EDAC Inc. | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Receptacle Female Sockets | 4 (DC C) - 21WA4 | 2 | Solder | Through Hole | Board Side (M3) | Gold | Signal and Power | UL94 V-0 | Combo D-Sub | Shielded | 30 Áin | 0.76 Ám | 21 | Nickel Plated Steel | 5 A 40 A | |||||

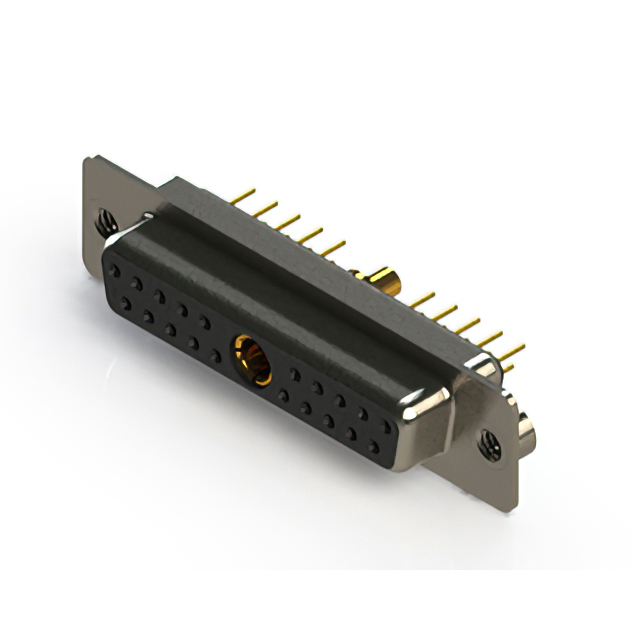

 EDAC Inc. | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Receptacle Female Sockets | 21W1 B DB | 2 | Solder | Through Hole | Board Side (4-40) | Gold | Signal and Power | UL94 V-0 | Combo D-Sub | Shielded | 21 | Nickel Plated Steel | Flash | 20A 5A | 3 | |||||

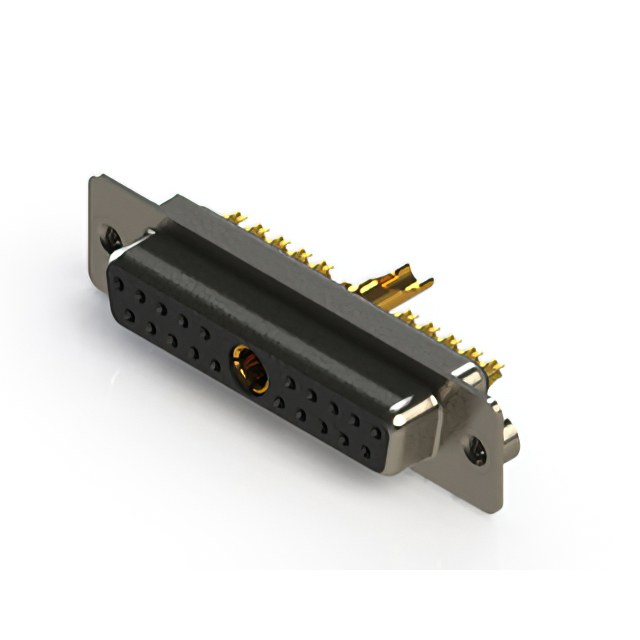

 EDAC Inc. | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Receptacle Female Sockets | 21W1 B DB | 2 | Solder | Through Hole | M3 | Gold | Coax Signal | UL94 V-0 | Combo D-Sub | Shielded | 21 | Nickel Plated Steel | Flash | 3 | ||||||

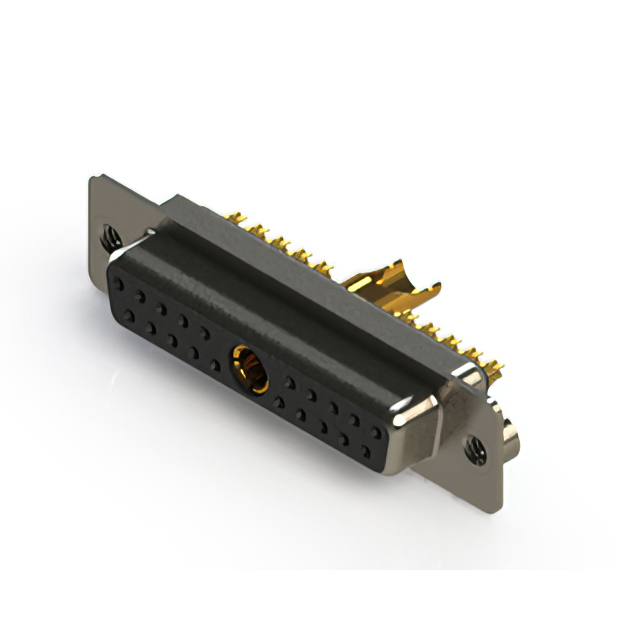

 EDAC Inc. | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Receptacle Female Sockets | 21W1 B DB | 2 | Solder | Through Hole | Board Side (M3) | Gold | Coax Signal | UL94 V-0 | Combo D-Sub | Shielded | 21 | Nickel Plated Steel | Flash | 3 | ||||||
 EDAC Inc. | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Receptacle Female Sockets | 4 (DC C) - 21WA4 | 2 | Solder | 17 | 4 | Through Hole | Board Side (M3) | Gold | Coax Signal | UL94 V-0 | Combo D-Sub | Shielded | Nickel Plated Steel | Flash | ||||||

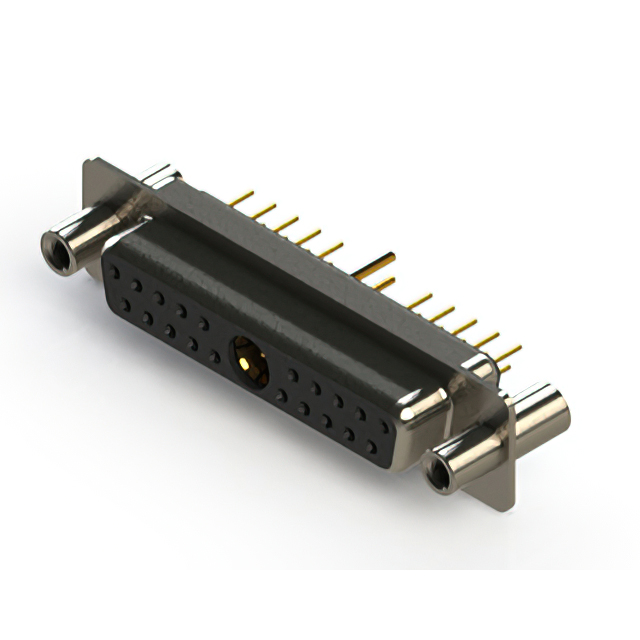

 EDAC Inc. | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Receptacle Female Sockets | 21W1 B DB | 2 | Free Hanging (In-Line) | Board Side (M3) | Gold | Signal and Power | UL94 V-0 | Combo D-Sub | Shielded | 30 Áin | 0.76 Ám | 21 | 20A 5A | 3 | ||||||
 EDAC Inc. | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Receptacle Female Sockets | 4 (DC C) - 21WA4 | 2 | Solder | 17 | 4 | Through Hole | Board Side (4-40) | Gold | Coax Signal | UL94 V-0 | Combo D-Sub | Shielded | 30 Áin | 0.76 Ám | Nickel Plated Steel | |||||

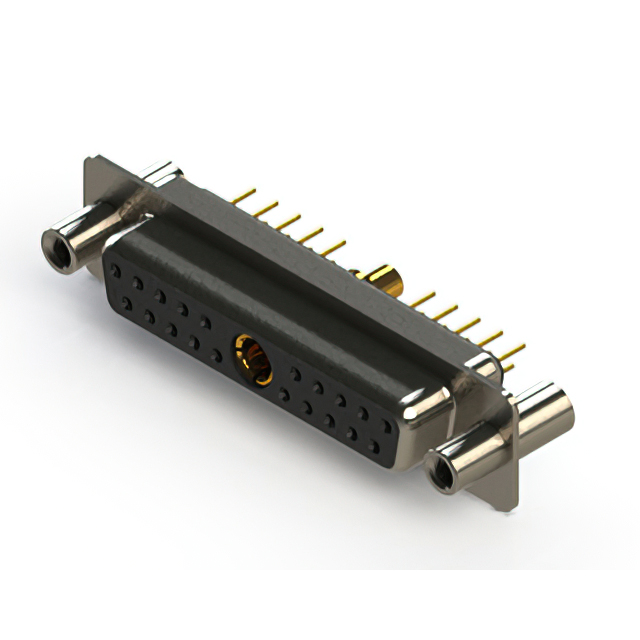

 EDAC Inc. | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Receptacle Female Sockets | 21W1 B DB | 2 | Free Hanging (In-Line) | Board Side (4-40) | Gold | Signal and Power | UL94 V-0 | Combo D-Sub | Shielded | 21 | 5 A 40 A | Flash | 3 | |||||||

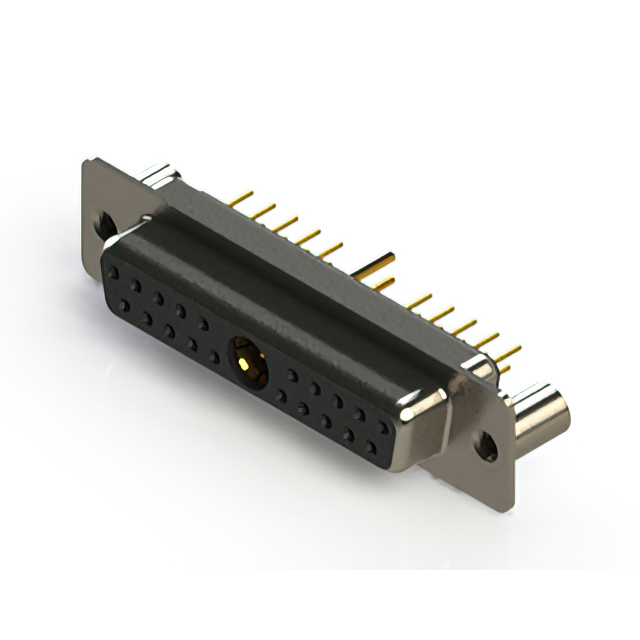

 EDAC Inc. | Black | Copper Alloy | 125 VDC | -55 C | 125 °C | Polyester Thermoplastic | Receptacle Female Sockets | 21W1 B DB | 2 | Solder | Through Hole | M3 | Gold | Signal and Power | UL94 V-0 | Combo D-Sub | Shielded | 30 Áin | 0.76 Ám | 21 | Nickel Plated Steel | 5 A 30 A | 3 |
