84 Series

Catalog

POWER INDUCTOR (SMD), 220 ΜH, 200 MA, UNSHIELDED, 8400 SERIES

Part	Current Rating (Amps)	Mounting Type	Inductance	Tolerance	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Type	Shielding	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	DC Resistance (DCR)
Murata Electronics 84224C	0.2 A	Surface Mount	220 µH	10 %	Nonstandard	125 °C	-40 C	Wirewound	Unshielded	2.9 mm	0.114 "	4.6 Ohm	4.5 mm	0.177 in	3.3 mm	0.13 in
Murata Electronics 84155C	80 mA	Surface Mount	1.5 mH	10 %	Nonstandard	125 °C	-40 C	Wirewound	Unshielded	2.9 mm	0.114 "	27 Ohm	4.5 mm	0.177 in	3.3 mm	0.13 in
Murata Electronics 84683C	0.38 A	Surface Mount	68 µH	10 %	Nonstandard	125 °C	-40 C	Wirewound	Unshielded	2.9 mm	0.114 "	1.6 Ohm	4.5 mm	0.177 in	3.3 mm	0.13 in

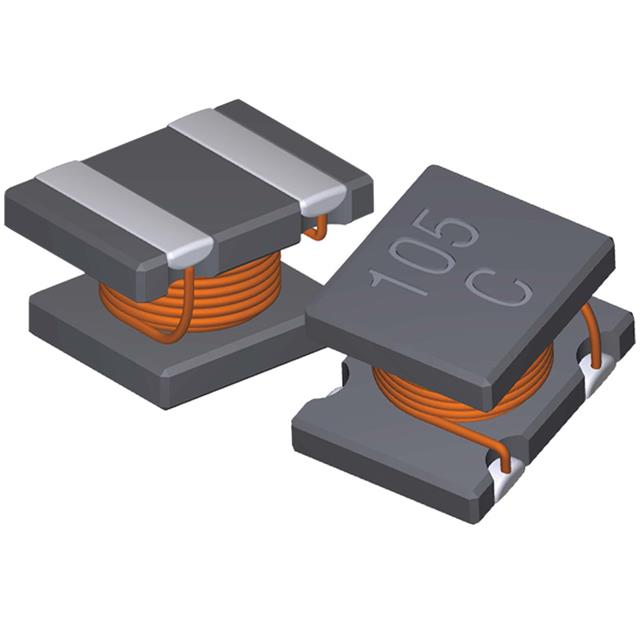

Murata Electronics 84102C	2.8 A	Surface Mount	1 µH	20 %	Nonstandard	125 °C	-40 C	Wirewound	Unshielded	2.9 mm	0.114 "	80 mOhm	4.5 mm	0.177 in	3.3 mm	0.13 in
Murata Electronics 84473C	0.42 A	Surface Mount	47 µH	10 %	Nonstandard	125 °C	-40 C	Wirewound	Unshielded	2.9 mm	0.114 "	1.1 Ohm	4.5 mm	0.177 in	3.3 mm	0.13 in
Murata Electronics 84472C	1.3 A	Surface Mount	4.7 ÁH	20 %	Nonstandard	125 °C	-40 C	Wirewound	Unshielded	2.9 mm	0.114 "		4.5 mm	0.177 in	3.3 mm	0.13 in	150 mOhm
Murata Electronics 84684C	120 mA	Surface Mount	680 µH	10 %	Nonstandard	125 °C	-40 C	Wirewound	Unshielded	2.9 mm	0.114 "	11.5 Ohm	4.5 mm	0.177 in	3.3 mm	0.13 in
Murata Electronics 84332C	1.5 A	Surface Mount	3.3 µH	20 %	Nonstandard	125 °C	-40 C	Wirewound	Unshielded	2.9 mm	0.114 "	120 mOhm	4.5 mm	0.177 in	3.3 mm	0.13 in

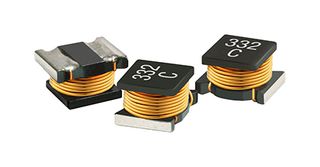

Murata Electronics 84105C	0.09 A	Surface Mount	1 mH	10 %	Nonstandard	125 °C	-40 C	Wirewound	Unshielded	2.9 mm	0.114 "	18 Ohm	4.5 mm	0.177 in	3.3 mm	0.13 in
Murata Electronics 84474C	140 mA	Surface Mount	470 µH	10 %	Nonstandard	125 °C	-40 C	Wirewound	Unshielded	2.9 mm	0.114 "	8.5 Ohm	4.5 mm	0.177 in	3.3 mm	0.13 in
