RBB06 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN EDGE DUAL FMALE 12POS 0.050

Part	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Termination	Mounting Type	Number of Rows [custom]	Read Out	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row	Gender	Pitch	Pitch	Card Thickness	Card Thickness	Number of Positions	Color	Contact Type	Contact Material	Card Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features
Sullins Connector Solutions RBB06DHAN	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Solder Staggered	Right Angle Through Hole	2	Dual	Gold	-65 ░C	125 °C	6	Female	0.05 in	1.27 mm	1.57 mm	0.062 in	12	Black	Hairpin Bellows	Phosphor Bronze	Non Specified - Dual Edge
Sullins Connector Solutions RBB06DHHD	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Solder Staggered	Through Hole	2	Dual	Gold	-65 ░C	125 °C	6	Female	0.05 in	1.27 mm	1.57 mm	0.062 in	12	Black	Hairpin Bellows	Phosphor Bronze	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
Sullins Connector Solutions RBB06DHFD	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Solder	Surface Mount	2	Dual	Gold	-65 ░C	125 °C	6	Female	0.05 in	1.27 mm	1.57 mm	0.062 in	12	Black	Hairpin Bellows	Phosphor Bronze	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
Sullins Connector Solutions RBB06DHBT	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Solder Staggered	Right Angle Through Hole	2	Dual	Gold	-65 ░C	125 °C	6	Female	0.05 in	1.27 mm	1.57 mm	0.062 in	12	Black	Hairpin Bellows	Phosphor Bronze	Non Specified - Dual Edge	4-40 Flush Mount Threaded Insert Top Opening

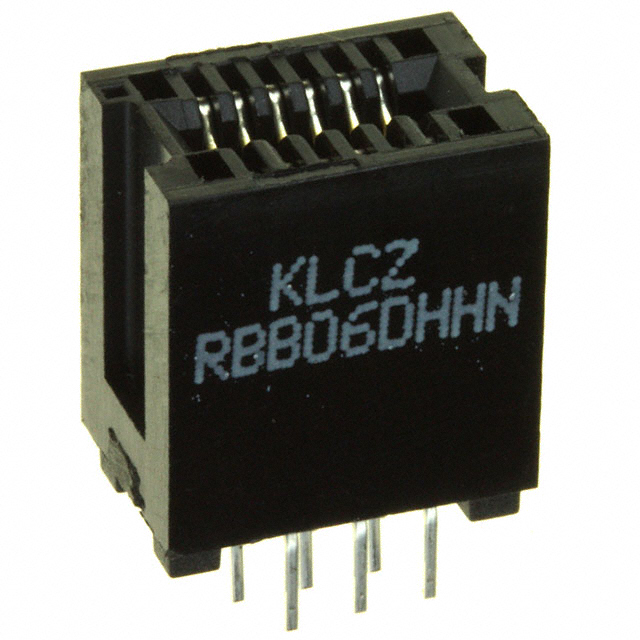

Sullins Connector Solutions RBB06DHHN	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Solder Staggered	Through Hole	2	Dual	Gold	-65 ░C	125 °C	6	Female	0.05 in	1.27 mm	1.57 mm	0.062 in	12	Black	Hairpin Bellows	Phosphor Bronze	Non Specified - Dual Edge
Sullins Connector Solutions RBB06DYFD	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Solder	Surface Mount	2	Dual	Gold	-65 ░C	125 °C	6	Female	0.05 in	1.27 mm	1.57 mm	0.062 in	12	Black	Cantilever	Phosphor Bronze	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	3.18 mm	0.125 "
Sullins Connector Solutions RBB06DYHN	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Solder Staggered	Through Hole	2	Dual	Gold	-65 ░C	125 °C	6	Female	0.05 in	1.27 mm	1.57 mm	0.062 in	12	Black	Cantilever	Phosphor Bronze	Non Specified - Dual Edge
Sullins Connector Solutions RBB06DHFN	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Solder	Surface Mount	2	Dual	Gold	-65 ░C	125 °C	6	Female	0.05 in	1.27 mm	1.57 mm	0.062 in	12	Black	Hairpin Bellows	Phosphor Bronze	Non Specified - Dual Edge
Sullins Connector Solutions RBB06DYFR	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Solder	Surface Mount	2	Dual	Gold	-65 ░C	125 °C	6	Female	0.05 in	1.27 mm	1.57 mm	0.062 in	12	Black	Cantilever	Phosphor Bronze	Non Specified - Dual Edge				Board Lock
Sullins Connector Solutions RBB06DYRN	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Solder	Board Edge Straddle Mount	2	Dual	Gold	-65 ░C	125 °C	6	Female	0.05 in	1.27 mm	1.57 mm	0.062 in	12	Black	Cantilever	Phosphor Bronze	Non Specified - Dual Edge				Card Extender
