PTH05T210W Series

30-A, 4.5V to 5.5V Input, Non-Isolated, Wide Output Adjustable Power Module with TurboTrans

Catalog

30-A, 4.5V to 5.5V Input, Non-Isolated, Wide Output Adjustable Power Module with TurboTrans

Part	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Applications	Features	Efficiency	Package / Case	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]
Texas Instruments PTH05T210WAZT	3.6 V	0.7 V	4.5 V	85 °C	-40 °C	Surface Mount	Non-Isolated PoL Module	30 A	5.5 V	ITE (Commercial)	OCP OTP Remote On/Off UVLO	95 %	14-SMD Module	1	0.62 "	34.8 mm	1.37 in	9.4 mm	15.8 mm	0.37 in
Texas Instruments PTH05010YAS	1.8 V	0.55 V	4.5 V	85 °C	-40 °C	Surface Mount	Non-Isolated PoL Module	15 A	5.5 V	ITE (Commercial)	OCP Remote On/Off UVLO	88 %	10-SMD Module	1	0.62 "	34.8 mm	1.37 in	9.6 mm	15.8 mm	0.38 in

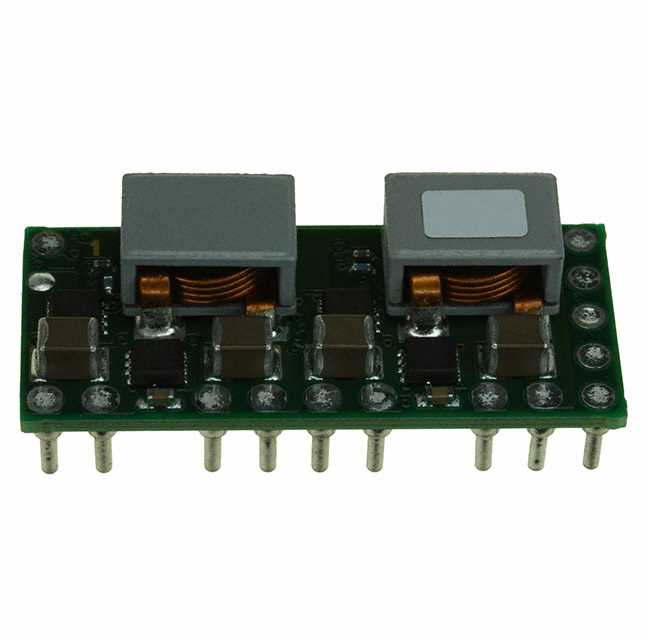

Texas Instruments PTH05T210WAD	3.6 V	0.7 V	4.5 V	85 °C	-40 °C	Through Hole	Non-Isolated PoL Module	30 A	5.5 V	ITE (Commercial)		95 %	14-DIP Module	1	0.62 "	34.8 mm	1.37 in	8.5 mm	15.8 mm	0.34 in
Texas Instruments PTH05060YAZ	1.8 V	0.55 V	4.5 V	85 °C	-40 °C	Surface Mount	Non-Isolated PoL Module	10 A	5.5 V	ITE (Commercial)	OCP Remote On/Off UVLO	86 %	10-SMD Module	1	0.62 "	25.4 mm	1 in	9.7 mm	15.7 mm	0.38 in
Texas Instruments PTH05T210WAST	3.6 V	0.7 V	4.5 V	85 °C	-40 °C	Surface Mount	Non-Isolated PoL Module	30 A	5.5 V	ITE (Commercial)	OCP OTP Remote On/Off UVLO	95 %	14-SMD Module	1	0.62 "	34.8 mm	1.37 in	9.4 mm	15.8 mm	0.37 in
Texas Instruments PTH05050YAST	1.8 V	0.55 V	4.5 V	85 °C	-40 °C	Surface Mount	Non-Isolated PoL Module	6 A	5.5 V	ITE (Commercial)	OCP Remote On/Off UVLO	87 %	6-SMD Module	1	0.5 in	22.1 mm	0.87 in	9.1 mm	12.7 mm	0.36 in
Texas Instruments PTH05T210WAZ	3.6 V	0.7 V	4.5 V	85 °C	-40 °C	Surface Mount	Non-Isolated PoL Module	30 A	5.5 V	ITE (Commercial)	OCP OTP Remote On/Off UVLO	95 %	14-SMD Module	1	0.62 "	34.8 mm	1.37 in	9.4 mm	15.8 mm	0.37 in
Texas Instruments PTH05060YAST	1.8 V	0.55 V	4.5 V	85 °C	-40 °C	Surface Mount	Non-Isolated PoL Module	10 A	5.5 V	ITE (Commercial)	OCP Remote On/Off UVLO	86 %	10-SMD Module	1	0.62 "	25.3 mm	0.99 in	9.6 mm	15.8 mm	0.38 in
Texas Instruments PTH05010YAST	1.8 V	0.55 V	4.5 V	85 °C	-40 °C	Surface Mount	Non-Isolated PoL Module	15 A	5.5 V	ITE (Commercial)	OCP Remote On/Off UVLO	88 %	10-SMD Module	1	0.62 "	34.8 mm	1.37 in	9.7 mm	15.7 mm	0.38 in
Texas Instruments PTH05T210WAS	3.6 V	0.7 V	4.5 V	85 °C	-40 °C	Surface Mount	Non-Isolated PoL Module	30 A	5.5 V	ITE (Commercial)	OCP OTP Remote On/Off UVLO	95 %	14-SMD Module	1	0.62 "	34.8 mm	1.37 in	9.4 mm	15.8 mm	0.37 in

Catalog

30-A, 4.5V to 5.5V Input, Non-Isolated, Wide Output Adjustable Power Module with TurboTrans

Key Features

• Up to 30-A Output Current4.5-V to 5.5-V Input VoltageWide-Output Voltage Adjust (0.7 V to 3.6 V)Efficiencies up to 96%±1.5% Total Output Voltage VariationOn/Off InhibitDifferential Output Voltage Remote SenseAdjustable Undervoltage LockoutOutput Overcurrent Protection(Nonlatching, Auto-Reset)Operating Temperature: –40°C to 85°CPOLA™ CompatibleTurboTrans™ TechnologyDesigned to meet Ultra-Fast Transient Requirements up to 300 A/µsAuto-Track™ SequencingMulti-Phase, Switch-Mode TopologySafety Agency Approvals:UL/IEC/CSA-22.2 60950-1APPLICATIONSComplex Multi-Voltage SystemsMicroprocessorsBus Drivers2POLA, TurboTrans, Auto-Track, AutoTrack, TMS320 are trademarks of Texas Instruments.Up to 30-A Output Current4.5-V to 5.5-V Input VoltageWide-Output Voltage Adjust (0.7 V to 3.6 V)Efficiencies up to 96%±1.5% Total Output Voltage VariationOn/Off InhibitDifferential Output Voltage Remote SenseAdjustable Undervoltage LockoutOutput Overcurrent Protection(Nonlatching, Auto-Reset)Operating Temperature: –40°C to 85°CPOLA™ CompatibleTurboTrans™ TechnologyDesigned to meet Ultra-Fast Transient Requirements up to 300 A/µsAuto-Track™ SequencingMulti-Phase, Switch-Mode TopologySafety Agency Approvals:UL/IEC/CSA-22.2 60950-1APPLICATIONSComplex Multi-Voltage SystemsMicroprocessorsBus Drivers2POLA, TurboTrans, Auto-Track, AutoTrack, TMS320 are trademarks of Texas Instruments.

Description

The PTH05T210W is a high-performance 30-A rated, non-isolated power module which utilizes a multi-phase, switch-mode topology. This module represents the 2nd generation of the PTH series power modules which includes a reduced footprint and improved features. Operating from an input voltage range of 4.5 V to 5.5 V, the PTH05T210W requires a single resistor to set the output voltage to any value over the range, 0.7 V to 3.6 V. The module uses double-sided surface mount construction to provide a low profile and compact footprint. Package options include both through-hole and surface mount configurations that are lead (Pb) – free and RoHS compatible. A new feature included in this 2nd generation of PTH modules is TurboTrans™ technology (patent pending). TurboTrans allows the transient response of the regulator to be optimized externally, resulting in a reduction of output voltage deviation following a load transient and a reduction in required output capacitance. This feature also offers enhanced stability when used with ultra-low ESR output capacitors. The PTH05T210W incorporates a comprehensive list of standard features. They include on/off inhibit, a differential remote output voltage sense which ensures tight load regulation, and an output overcurrent and overtemperature shutdown to protect against load faults. A programmable undervoltage lockout allows the turn-on voltage threshold to be customized. AutoTrack™ sequencing is a feature which simplifies the simultaneous power-up and power-down of multiple modules in a power system by allowing the outputs to track a common voltage. The PTH05T210W is a high-performance 30-A rated, non-isolated power module which utilizes a multi-phase, switch-mode topology. This module represents the 2nd generation of the PTH series power modules which includes a reduced footprint and improved features. Operating from an input voltage range of 4.5 V to 5.5 V, the PTH05T210W requires a single resistor to set the output voltage to any value over the range, 0.7 V to 3.6 V. The module uses double-sided surface mount construction to provide a low profile and compact footprint. Package options include both through-hole and surface mount configurations that are lead (Pb) – free and RoHS compatible. A new feature included in this 2nd generation of PTH modules is TurboTrans™ technology (patent pending). TurboTrans allows the transient response of the regulator to be optimized externally, resulting in a reduction of output voltage deviation following a load transient and a reduction in required output capacitance. This feature also offers enhanced stability when used with ultra-low ESR output capacitors. The PTH05T210W incorporates a comprehensive list of standard features. They include on/off inhibit, a differential remote output voltage sense which ensures tight load regulation, and an output overcurrent and overtemperature shutdown to protect against load faults. A programmable undervoltage lockout allows the turn-on voltage threshold to be customized. AutoTrack™ sequencing is a feature which simplifies the simultaneous power-up and power-down of multiple modules in a power system by allowing the outputs to track a common voltage.
