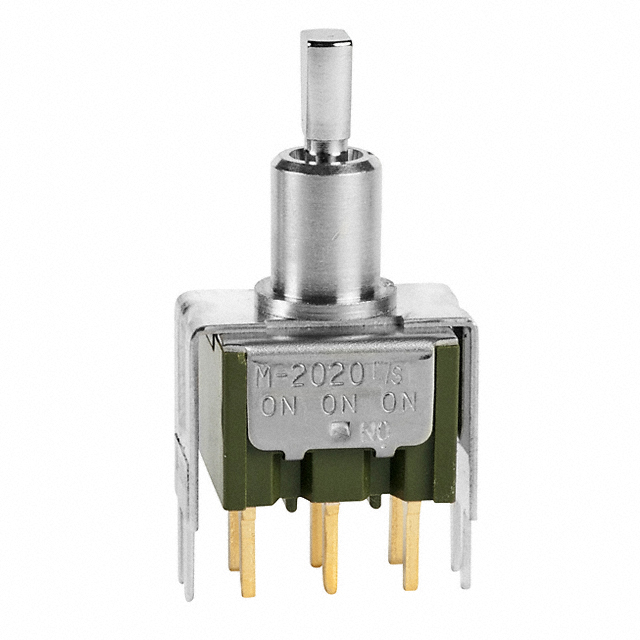

M2024E2 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SP3T 0.4VA 28V
| Part | Electrical Life | Actuator Material | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Mounting Type | Bushing Thread | Features | Switch Function | Actuator Length [x] | Current Rating (Amps) | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Illumination | Termination Style | Actuator Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | Brass Chrome Plated | 28 V | 6.5 mm | Through Hole | Unthreaded | Jumper needed to achieve triple throw | On-On-On | 6.5 mm | 0.4 VA | 28 V | 85 °C | -30 ░C | Non-Illuminated | PC Pin | Flatted | SP3T |
