15ETH06 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

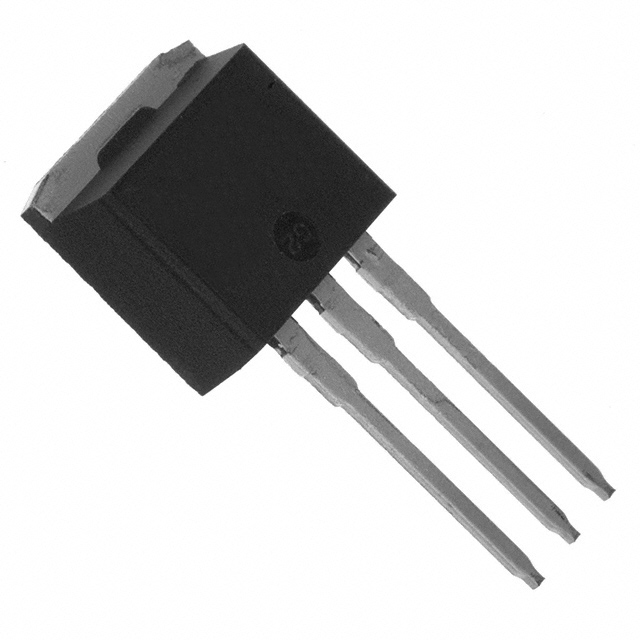

DIODE GEN PURP 600V 15A TO262AA

Part	Technology	Grade	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Supplier Device Package	Qualification	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If	Speed	Package / Case
Vishay General Semiconductor - Diodes Division VS-15ETH06-1PBF	Standard	Automotive	175 ░C	-65 C	15 A	600 V	Through Hole	TO-262AA	AEC-Q101	40 µA	29 ns	2.2 V	200 mA 500 ns	I2PAK TO-262-3 Long Leads TO-262AA
Vishay General Semiconductor - Diodes Division 15ETH06-1	Standard		175 ░C	-65 C	15 A	600 V	Through Hole	TO-262-3		50 µA	35 ns	2.2 V	200 mA 500 ns	I2PAK TO-262-3 Long Leads TO-262AA
Vishay General Semiconductor - Diodes Division VS-15ETH06STRL-M3	Standard		175 ░C	-65 C	15 A	600 V	Surface Mount	TO-263AB (D2PAK)		50 µA	35 ns	2.2 V	200 mA 500 ns	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB
Vishay General Semiconductor - Diodes Division VS-15ETH06FP-N3	Standard		175 ░C	-65 C	15 A	600 V	Through Hole	TO-220-2 Full Pack		40 µA	29 ns	2.2 V	200 mA 500 ns	TO-220-2 Full Pack
Vishay General Semiconductor - Diodes Division VS-15ETH06-N3	Standard		175 ░C	-60 °C	15 A	600 V	Through Hole	TO-220AC		50 µA	51 ns	2.2 V	200 mA 500 ns	TO-220-2
Vishay General Semiconductor - Diodes Division VS-15ETH06-1-M3	Standard		175 ░C	-65 C	15 A	600 V	Through Hole	TO-262AA		50 µA	35 ns	2.2 V	200 mA 500 ns	I2PAK TO-262-3 Long Leads TO-262AA
Vishay General Semiconductor - Diodes Division 15ETH06	Standard		175 ░C	-65 C	15 A	600 V	Through Hole	TO-220AC		50 µA	35 ns	2.2 V	200 mA 500 ns	TO-220-2
Vishay General Semiconductor - Diodes Division VS-15ETH06S-M3	Standard		175 ░C	-65 C	15 A	600 V	Surface Mount	TO-263AB (D2PAK)		50 µA	35 ns	2.2 V	200 mA 500 ns	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB
Vishay General Semiconductor - Diodes Division VS-15ETH06FPPBF	Standard		175 ░C	-65 C	15 A	600 V	Through Hole	TO-220-2 Full Pack		50 µA	35 ns	2.2 V	200 mA 500 ns	TO-220-2 Full Pack
Vishay General Semiconductor - Diodes Division VS-15ETH06STRR-M3	Standard		175 ░C	-65 C	15 A	600 V	Surface Mount	TO-263AB (D2PAK)		50 µA	35 ns	2.2 V	200 mA 500 ns	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB
