NRPN234 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

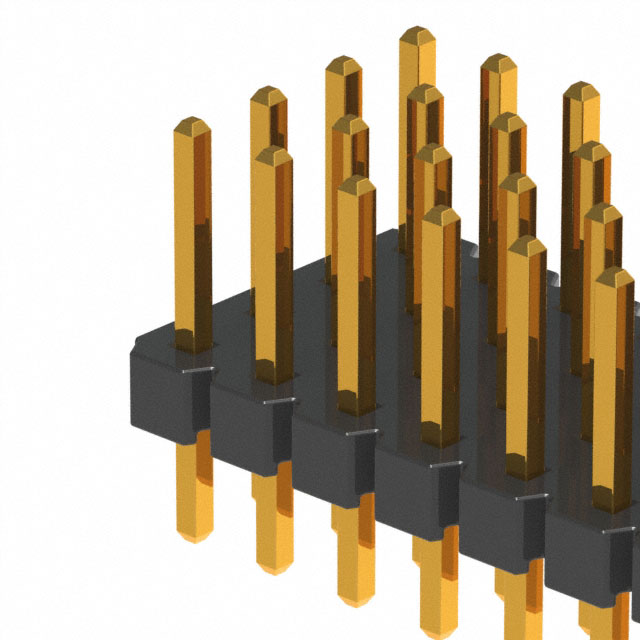

CONN HEADER VERT 92POS 2MM
| Part | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Shrouding | Contact Finish - Post | Contact Length - Mating | Contact Length - Mating | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Color | Overall Contact Length | Overall Contact Length | Number of Positions Loaded | Connector Type | Contact Type | Row Spacing - Mating | Row Spacing - Mating | Material Flammability Rating | Termination | Mounting Type | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Contact Finish - Mating | Contact Shape | Contact Material | Insulation Material | Contact Finish Thickness - Mating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | 0.059 in | 1.5 mm | Unshrouded | Gold | 0.173 in | 4.4 mm | 92 | 0.079 " | 2 mm | Black | 8.3 mm | 0.327 in | All | Header | Male Pin | 2 mm | 0.079 in | UL94 V-0 | Solder | Through Hole | 2.4 mm | 0.094 in | 2 A | Gold | Square | Brass | Nylon 6T Polyamide (PA6T) | Flash | Push-Pull | -40 C | 105 ░C |
