103239 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 4POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Insulation Color	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Connector Type	Number of Positions Loaded	Contact Material	Shrouding	Termination	Contact Shape	Number of Rows	Insulation Material	Style	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Fastening Type	Current Rating (Amps)	Contact Type

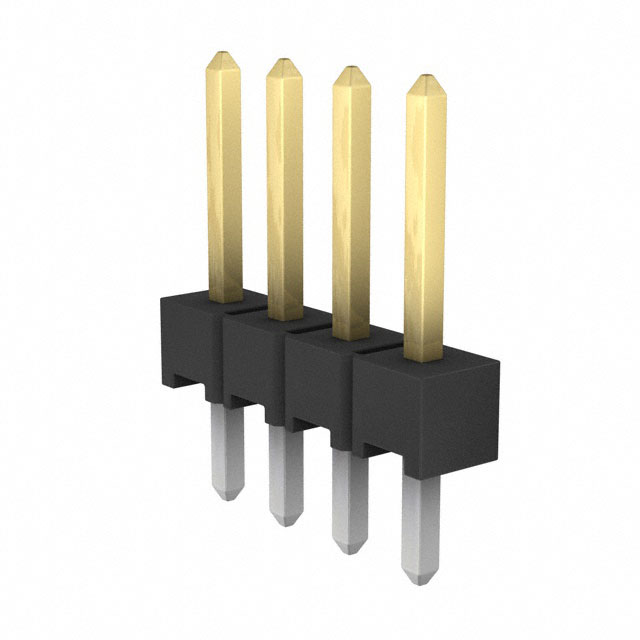

TE Connectivity AMP Connectors 4-103239-0-04	2.54 µm	100 µin	4	Black	UL94 V-0	0.1 "	2.54 mm	0.23 in	5.84 mm	Header Breakaway	All	Copper Alloy	Unshrouded	Solder	Square	1	Thermoplastic	Board to Board Cable	Through Hole	0.76 Ám	30 Áin	105 ░C	-65 ░C	Tin-Lead	0.09 in	2.29 mm	11.18 mm	0.44 in	Gold	3.05 mm	0.12 in	Push-Pull	3 A	Male Pin
TE Connectivity AMP Connectors 4-103239-0-26	2.54 µm	100 µin	26	Black	UL94 V-0	0.1 "	2.54 mm	0.23 in	5.84 mm	Header Breakaway	All	Copper Alloy	Unshrouded	Solder	Square	1	Thermoplastic	Board to Board Cable	Through Hole	0.76 Ám	30 Áin	105 ░C	-65 ░C	Tin-Lead	0.09 in	2.29 mm	11.18 mm	0.44 in	Gold	3.05 mm	0.12 in	Push-Pull	3 A	Male Pin
TE Connectivity AMP Connectors 4-103239-0-22	2.54 µm	100 µin	22	Black	UL94 V-0	0.1 "	2.54 mm	0.23 in	5.84 mm	Header Breakaway	All	Copper Alloy	Unshrouded	Solder	Square	1	Thermoplastic	Board to Board Cable	Through Hole	0.76 Ám	30 Áin	105 ░C	-65 ░C	Tin-Lead	0.09 in	2.29 mm	11.18 mm	0.44 in	Gold	3.05 mm	0.12 in	Push-Pull	3 A	Male Pin
TE Connectivity AMP Connectors 4-103239-0-06	2.54 µm	100 µin	6	Black	UL94 V-0	0.1 "	2.54 mm	0.23 in	5.84 mm	Header Breakaway	All	Copper Alloy	Unshrouded	Solder	Square	1	Thermoplastic	Board to Board Cable	Through Hole	0.76 Ám	30 Áin	105 ░C	-65 ░C	Tin-Lead	0.09 in	2.29 mm	11.18 mm	0.44 in	Gold	3.05 mm	0.12 in	Push-Pull	3 A	Male Pin
TE Connectivity AMP Connectors 4-103239-0-25	2.54 µm	100 µin	25	Black	UL94 V-0	0.1 "	2.54 mm	0.23 in	5.84 mm	Header Breakaway	All	Copper Alloy	Unshrouded	Solder	Square	1	Thermoplastic	Board to Board Cable	Through Hole	0.76 Ám	30 Áin	105 ░C	-65 ░C	Tin-Lead	0.09 in	2.29 mm	11.18 mm	0.44 in	Gold	3.05 mm	0.12 in	Push-Pull	3 A	Male Pin
TE Connectivity AMP Connectors 4-103239-0-18	2.54 µm	100 µin	18	Black	UL94 V-0	0.1 "	2.54 mm	0.23 in	5.84 mm	Header Breakaway	All	Copper Alloy	Unshrouded	Solder	Square	1	Thermoplastic	Board to Board Cable	Through Hole	0.76 Ám	30 Áin	105 ░C	-65 ░C	Tin-Lead	0.09 in	2.29 mm	11.18 mm	0.44 in	Gold	3.05 mm	0.12 in	Push-Pull	3 A	Male Pin
TE Connectivity AMP Connectors 4-103239-0-21	2.54 µm	100 µin	21	Black	UL94 V-0	0.1 "	2.54 mm	0.23 in	5.84 mm	Header Breakaway	All	Copper Alloy	Unshrouded	Solder	Square	1	Thermoplastic	Board to Board Cable	Through Hole	0.76 Ám	30 Áin	105 ░C	-65 ░C	Tin-Lead	0.09 in	2.29 mm	11.18 mm	0.44 in	Gold	3.05 mm	0.12 in	Push-Pull	3 A	Male Pin
TE Connectivity AMP Connectors 4-103239-0-09	2.54 µm	100 µin	9	Black	UL94 V-0	0.1 "	2.54 mm	0.23 in	5.84 mm	Header Breakaway	All	Copper Alloy	Unshrouded	Solder	Square	1	Thermoplastic	Board to Board Cable	Through Hole	0.76 Ám	30 Áin	105 ░C	-65 ░C	Tin-Lead	0.09 in	2.29 mm	11.18 mm	0.44 in	Gold	3.05 mm	0.12 in	Push-Pull	3 A	Male Pin
TE Connectivity AMP Connectors 4-103239-0-29	2.54 µm	100 µin	29	Black	UL94 V-0	0.1 "	2.54 mm	0.23 in	5.84 mm	Header Breakaway	All	Copper Alloy	Unshrouded	Solder	Square	1	Thermoplastic	Board to Board Cable	Through Hole	0.76 Ám	30 Áin	105 ░C	-65 ░C	Tin-Lead	0.09 in	2.29 mm	11.18 mm	0.44 in	Gold	3.05 mm	0.12 in	Push-Pull	3 A	Male Pin

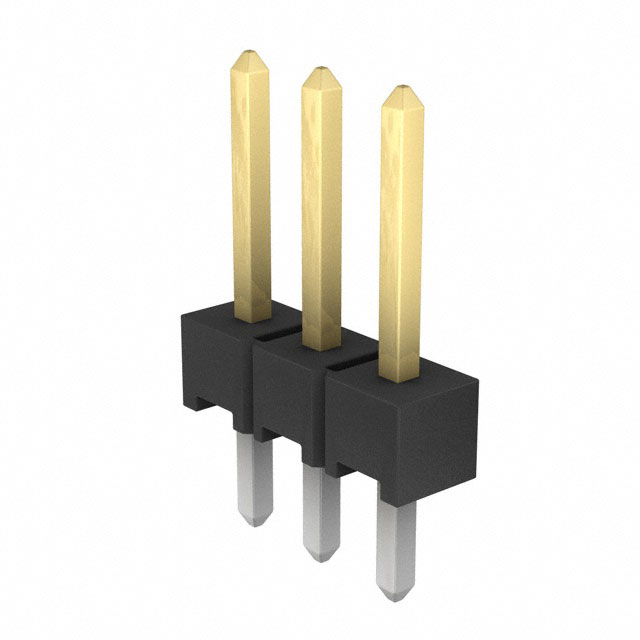

TE Connectivity AMP Connectors 4-103239-0-03	2.54 µm	100 µin		Black	UL94 V-0	0.1 "	2.54 mm	0.23 in	5.84 mm	Header Breakaway	All	Copper Alloy	Unshrouded	Solder	Square	1	Thermoplastic	Board to Board Cable	Through Hole	0.76 Ám	30 Áin	105 ░C	-65 ░C	Tin-Lead	0.09 in	2.29 mm	11.18 mm	0.44 in	Gold	3.05 mm	0.12 in	Push-Pull	3 A	Male Pin
