PPPC231 Series

Catalog

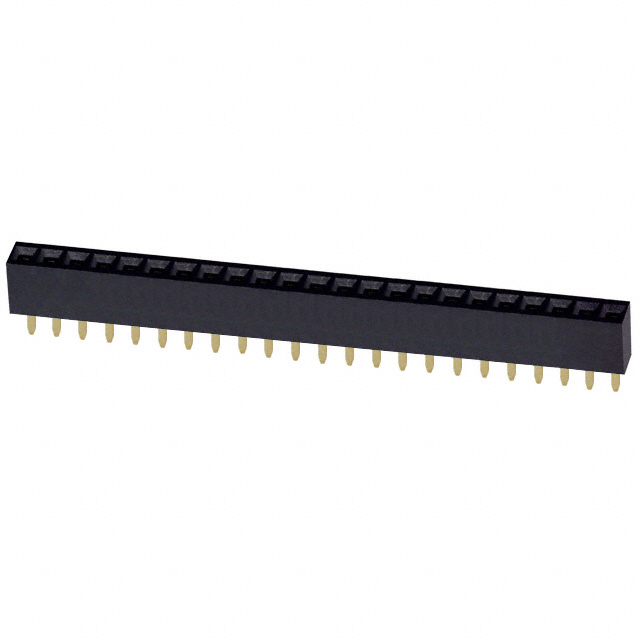

CONN HDR 23POS 0.1 GOLD PCB

Part	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Contact Material	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating	Contact Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Number of Positions Loaded	Fastening Type	Mounting Type	Contact Finish - Post	Number of Rows	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Number of Positions	Insulation Color	Connector Type
Sullins Connector Solutions PPPC231LFBN-RC	Polyester	Square	Flash	Phosphor Bronze	0.335 "	8.51 mm	Gold	0.126 "	3.2 mm	250 V	Female Socket	Solder	-40 C	105 ░C	Flash	All	Push-Pull	Through Hole	Gold	1	UL94 V-0	0.1 "	2.54 mm	3 A	23	Black	Header
Sullins Connector Solutions PPPC231LFBN	Polyester	Square	Flash	Phosphor Bronze	0.335 "	8.51 mm	Gold	0.126 "	3.2 mm	250 V	Female Socket	Solder	-40 C	105 ░C	Flash	All	Push-Pull	Through Hole	Gold	1	UL94 V-0	0.1 "	2.54 mm	3 A	23	Black	Header
